RCF SUB 8006-AS
RCF SUB 8006-AS ACTIVE HIGH POWER SUBWOOFER
FEATURES
- 5000 Watt Peak power - 2500 Watt RMS
- 141 dB max SPL
- 30 Hz - 120 Hz frequency response
- 2 x 18" Woofer
- DSP controlled Input section with selectable presets
- Delay control
- Integrated mechanics for multiple configuration with HDL 20-A
- Baltic birch tour grade cabinet

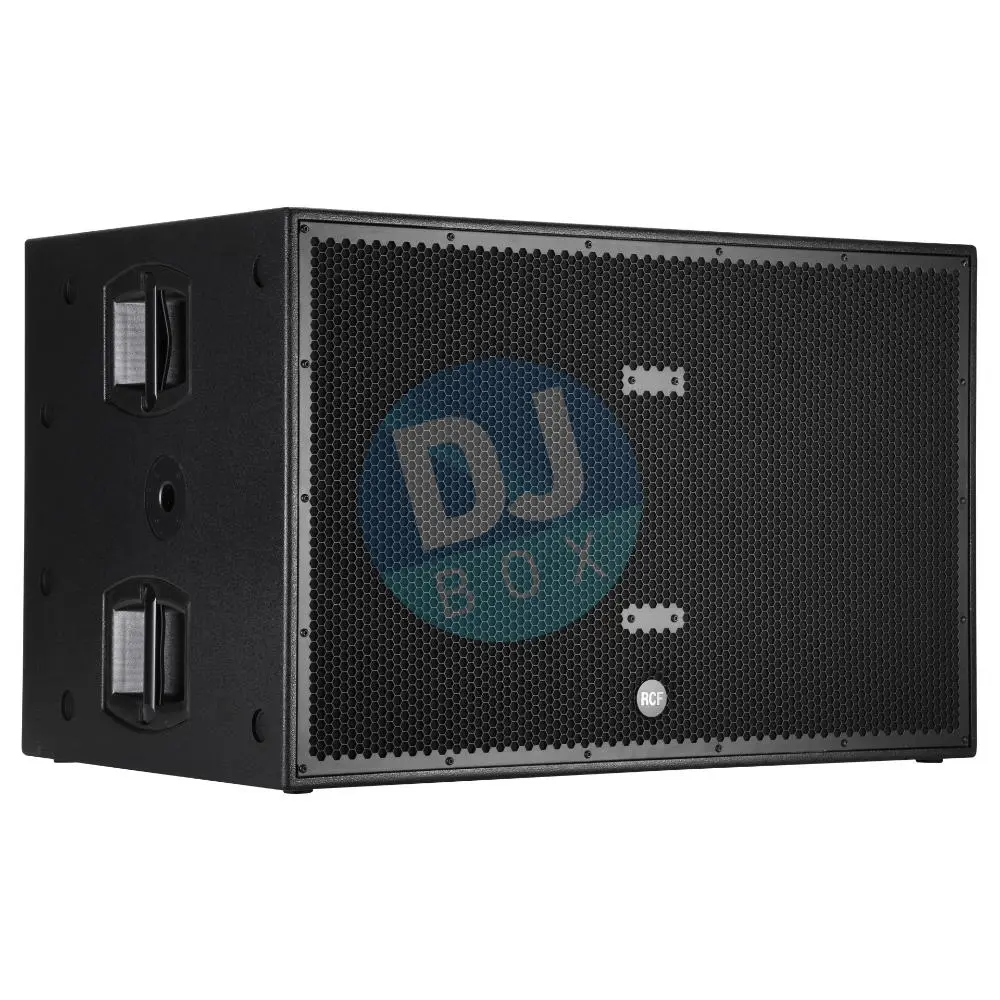

The RCF SUB 8006-AS is the largest and most powerful active sub woofer in the professional series. Featuring two 18” transducers, with 4” inside/outside voice coils, this cabinet is designed to delivery a serious amount of low frequency. Powered by a 2500W digital amplifier module, the SUB 8006-AS can perform in the most demanding situations.
ACOUSTICAL SPECIFICATIONS
Frequency Response
30 Hz ÷ 120 Hz
Max SPL @ 1m
141 dB
TRANSDUCERS
Woofer
2 x 18'', 4.0'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
PROCESSOR SECTION
Hi-Pass Frequencies
100 Hz
Low-Pass Frequencies
80 Hz
Protections
Thermal, RMS
Limiter
Fast Limiter

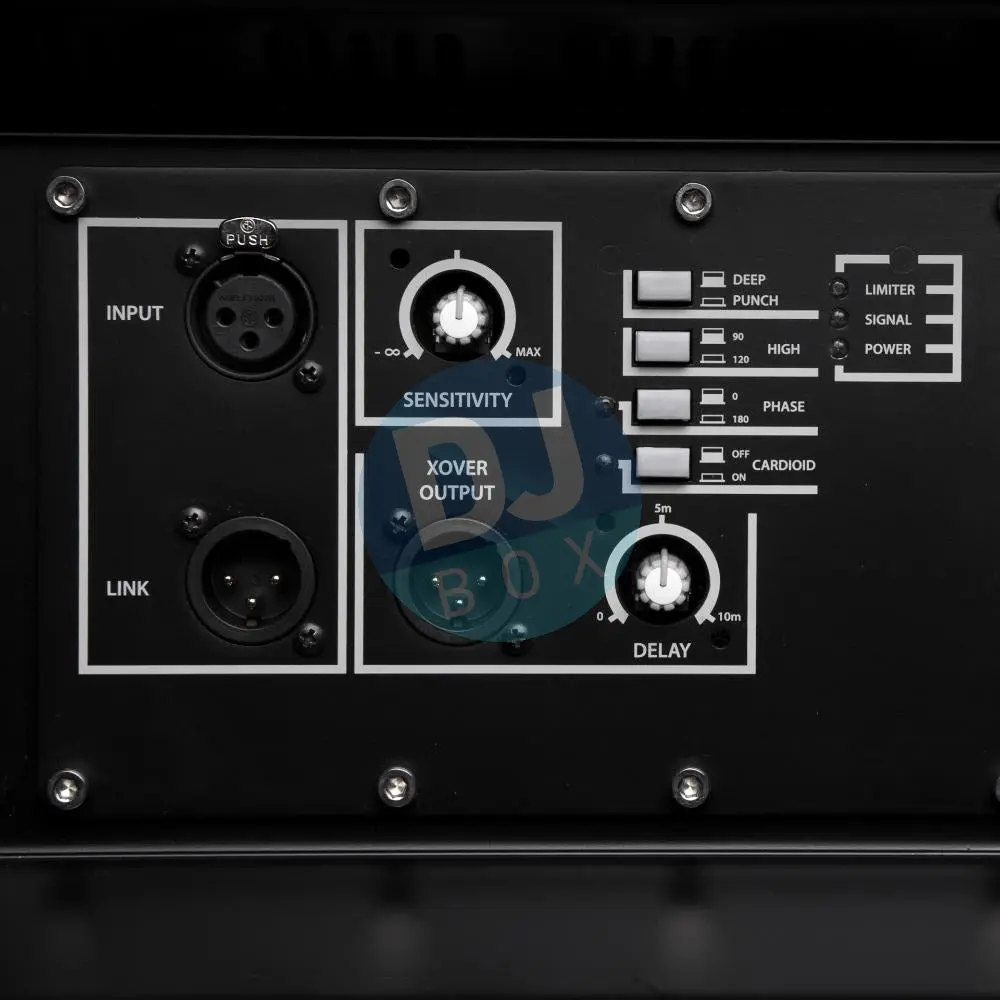

Controls
Xover, Phase switch, Depp/Punch, Output Delay Settings, Cardioi
POWER SECTION
Total Power
5000 W Peak, 2500 W RMS
Low frequencies
5000 W Peak, 2500 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material
Baltic birch plywood
Hardware
Mounting points
Handles
4 side
Pole mount/Cap
M20 thread
Grille
Steel
Color
Black
SIZE / WEIGHT
Height
709 mm / 27.91 inches
Width
1109 mm / 43.66 inches
Depth
700 mm / 27.56 inches
Weight
96.4 kg / 212.53 lbs
SHIPPING INFORMATION
Package Height
763 mm / 30.04 inches
Package Width
1156 mm / 45.51 inches
Package Depth
753 mm / 29.65 inches
Package Weight
109 kg / 240.3 lbs
$5,295.04
