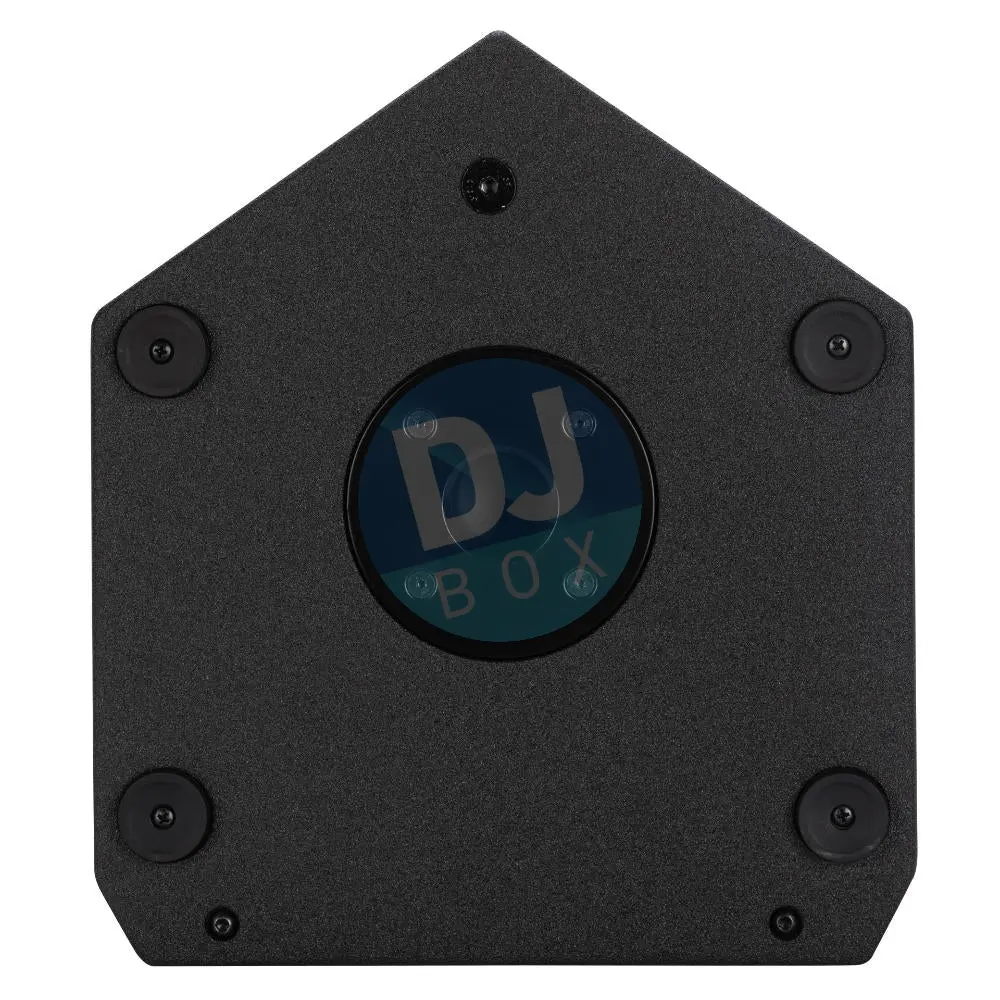

RCF NX 910-A

RCF NX 910-A

RCF NX 910-A PROFESSIONAL ACTIVE SPEAKER

FEATURES
  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 50-20000 Hz linear frequency response
  • 1.75" Compression Driver
  • 10" Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management

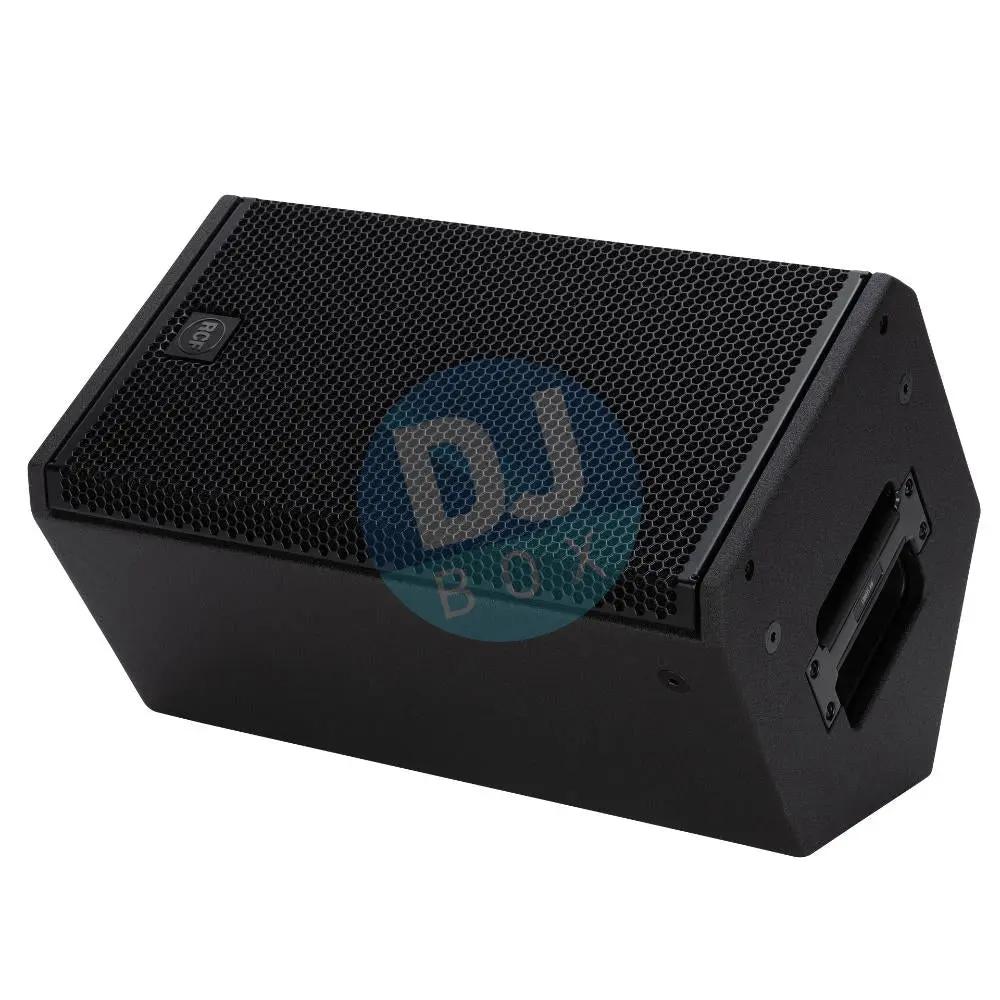

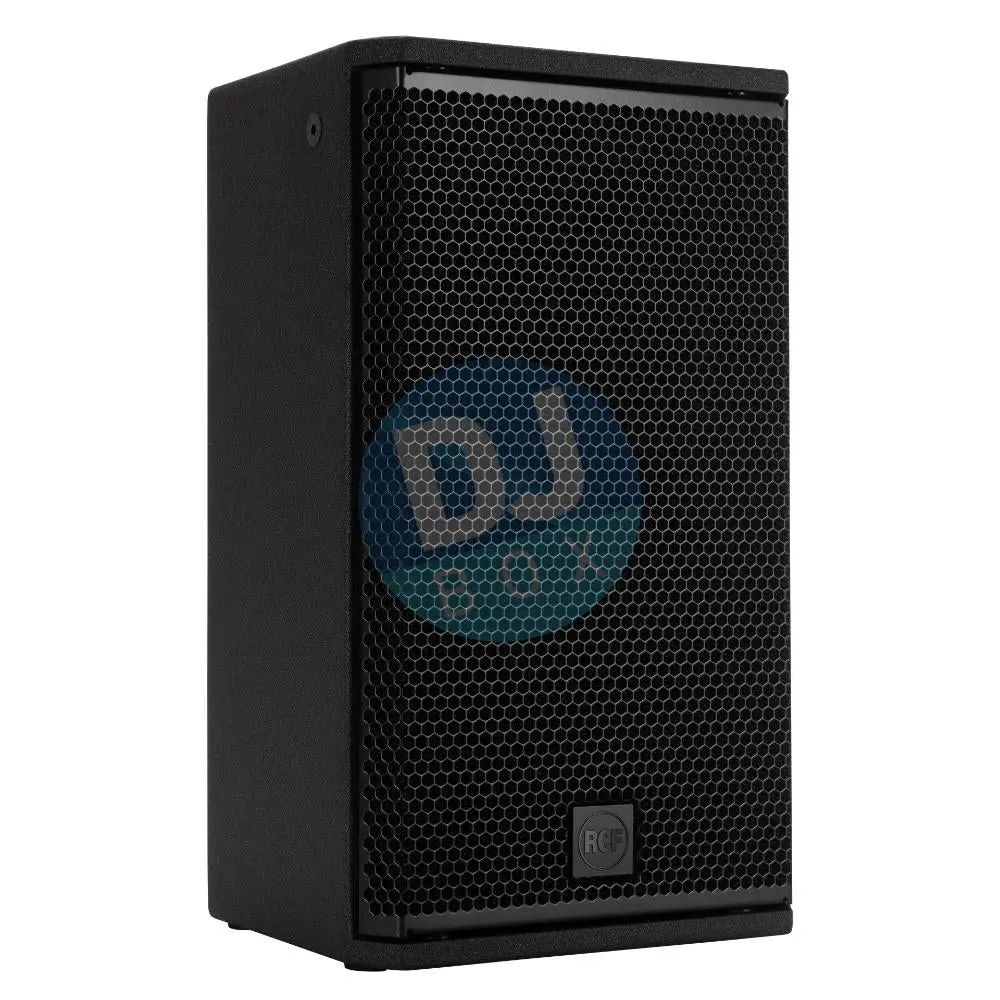

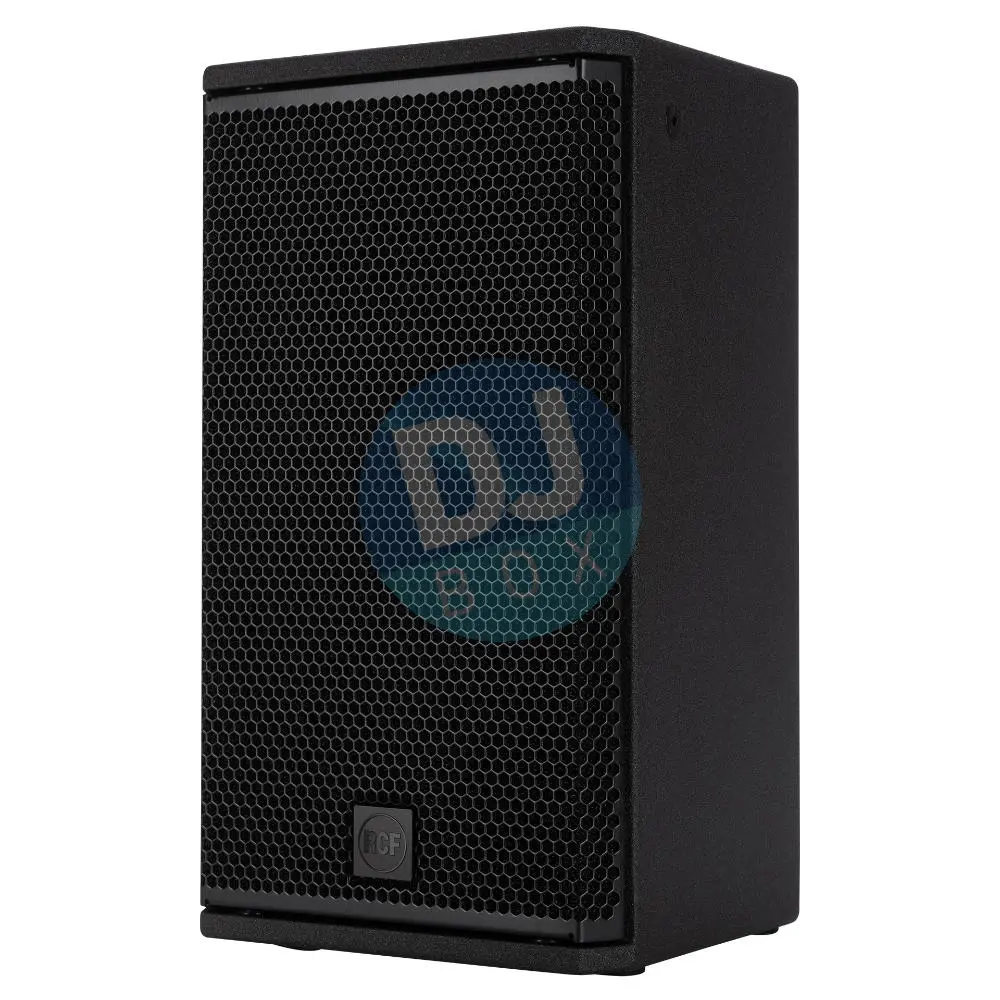

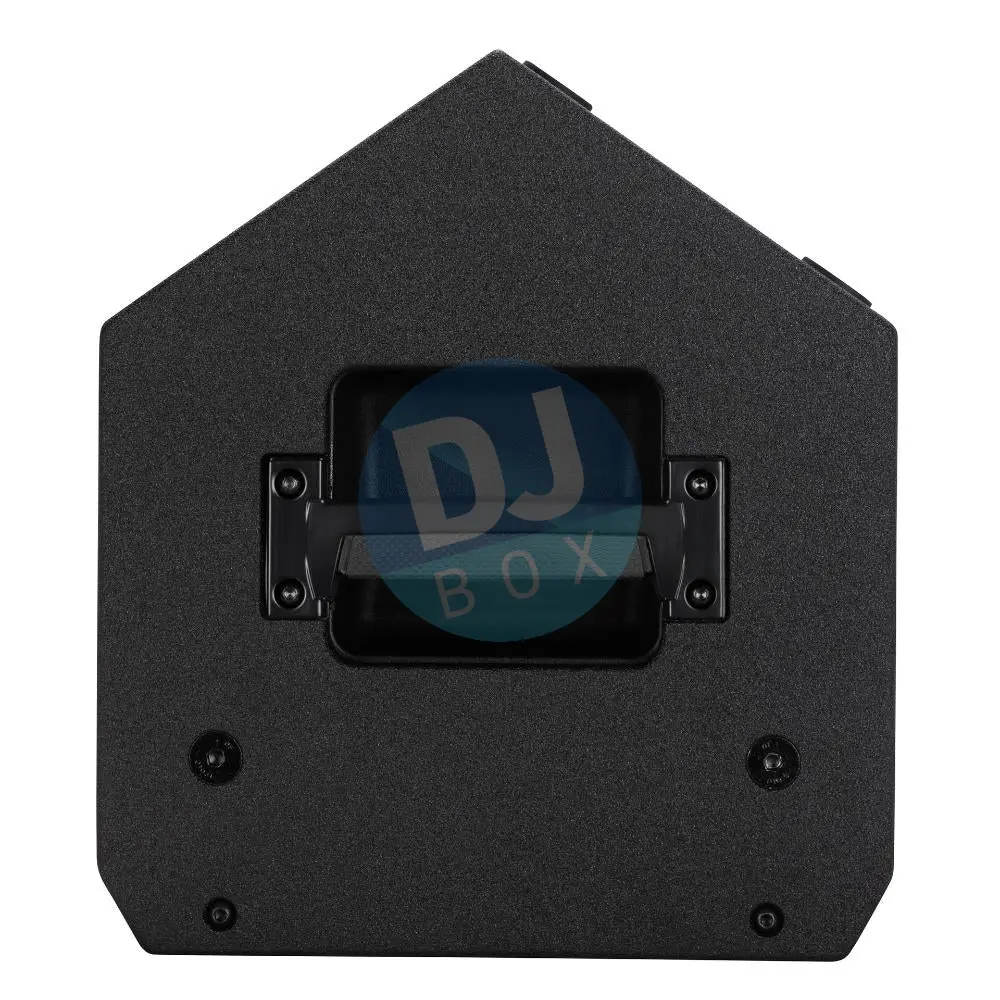

RCF NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

ACOUSTICAL SPECIFICATIONS
Frequency Response
50 Hz ÷ 20000 Hz
Max SPL @ 1m
130 dB
Horizontal coverage angle
100°
Vertical coverage angle
60°

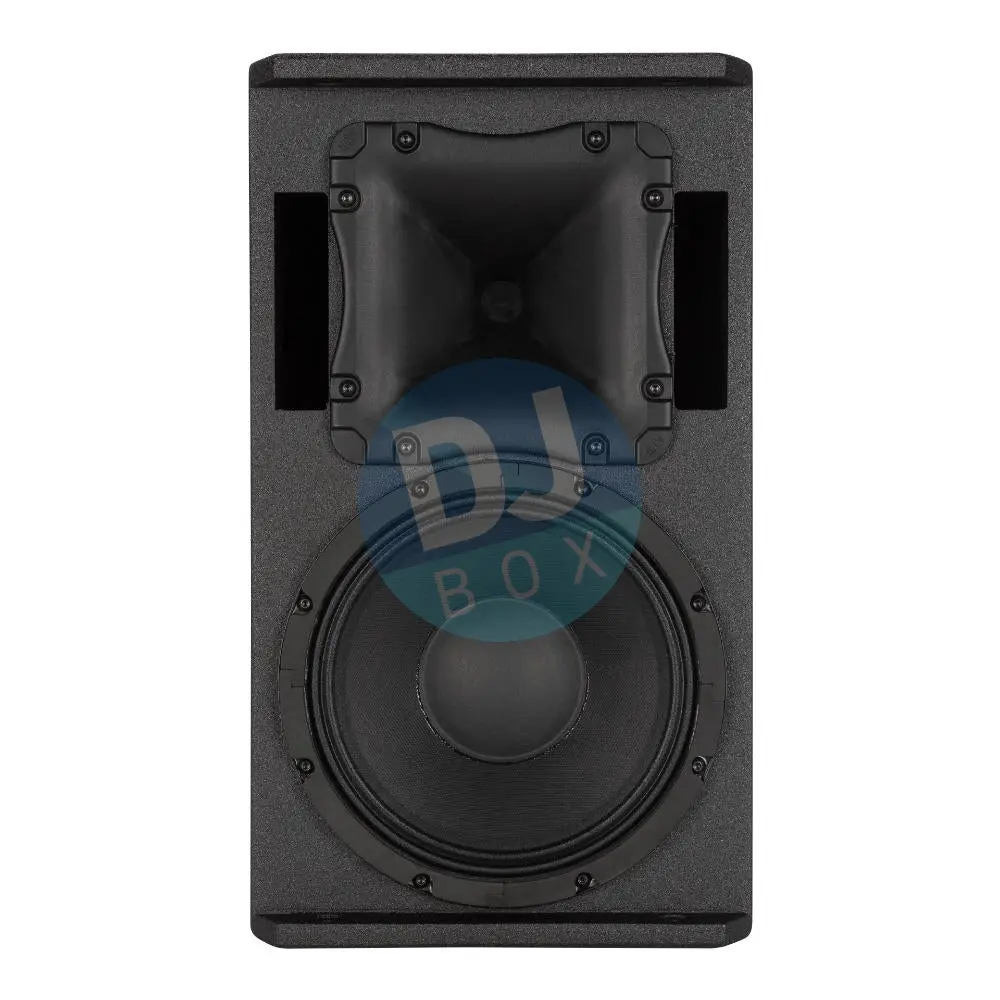

TRANSDUCERS
Compression Driver
1 x 1.0'', 1.75'' v.c
Woofer
1 x 10'', 2.5'' v.c

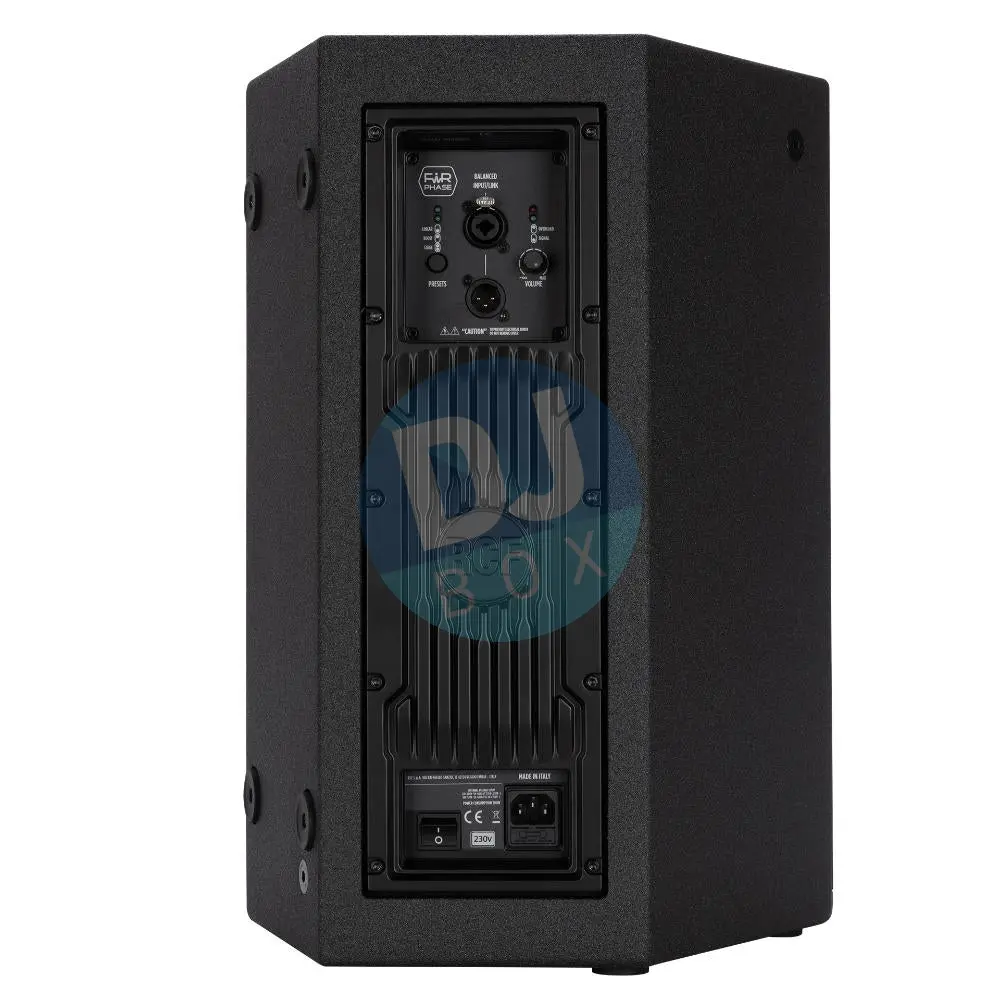

INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR, Jack
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies
1600 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Linear, Boost, Stage, Volume
POWER SECTION
Total Power
2100 W Peak
High frequencies
700 W Peak
Low frequencies
1400 W Peak
Cooling
Convection
Connections
VDE
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material
Plywood
Hardware
2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear
Handles
1 Top
Pole mount/Cap
35 mm insert
Grille
Steel
Color
Black
SIZE / WEIGHT
Height
510 mm / 20.08 inches
Width
295 mm / 11.61 inches
Depth
333 mm / 13.11 inches
Weight
16.4 kg / 36.16 lbs
SHIPPING INFORMATION
Package Height
556 mm / 21.89 inches
Package Width
388 mm / 15.28 inches
Package Depth
348 mm / 13.7 inches
Package Weight
18.1 kg / 39.9 lbs
