RCF HDL 6-A ACTIVE LINE ARRAY MODULE

RCF HDL 6-A ACTIVE LINE ARRAY MODULE

RCF HDL 6-A ACTIVE LINE ARRAY MODULE

FEATURES

  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0"woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing

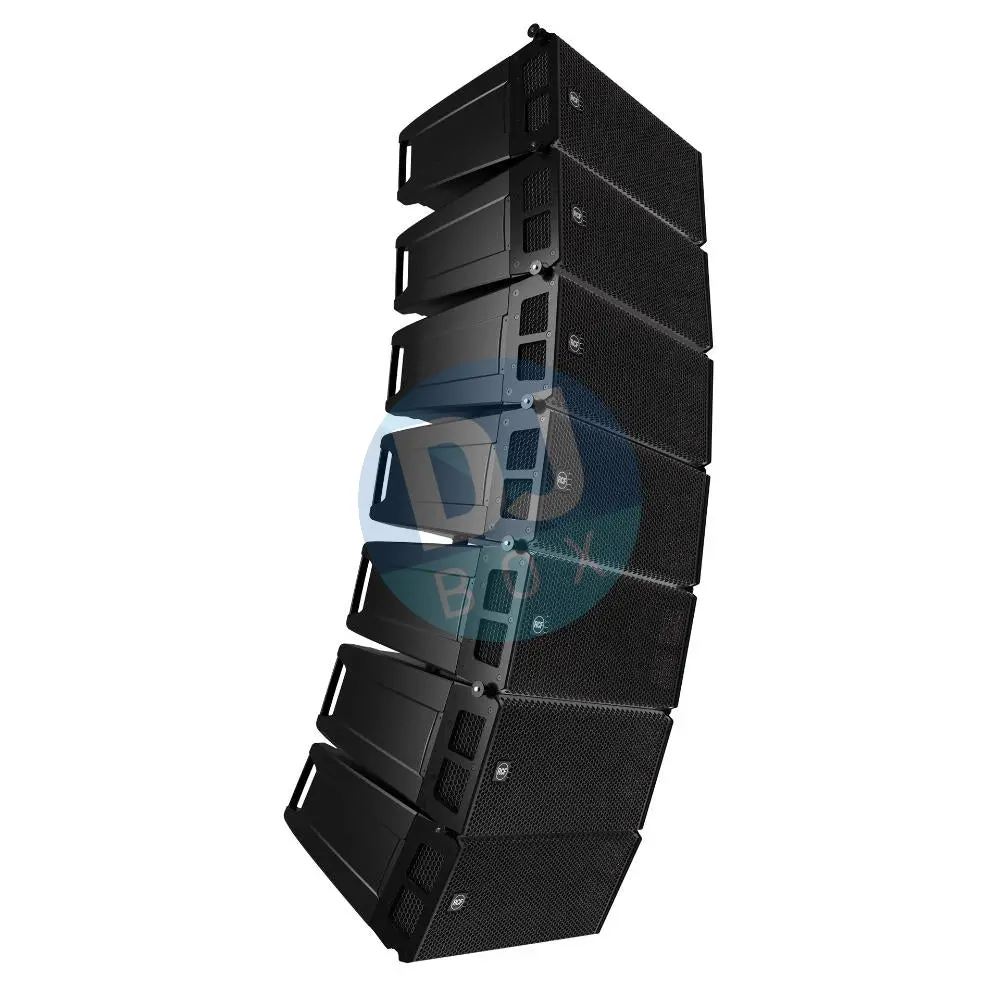

The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.

ACOUSTICAL SPECIFICATIONS
Frequency Response
65 Hz ÷ 20000 Hz
Max SPL @ 1m
131 dB
Horizontal coverage angle
100°
Vertical coverage angle
10°
TRANSDUCERS
Compression Driver
1 x 1.0'' neo, 1.75'' v.c
Woofer
2 x 6.0'' neo, 2.0'' v.c
INPUT/OUTPUT SECTION

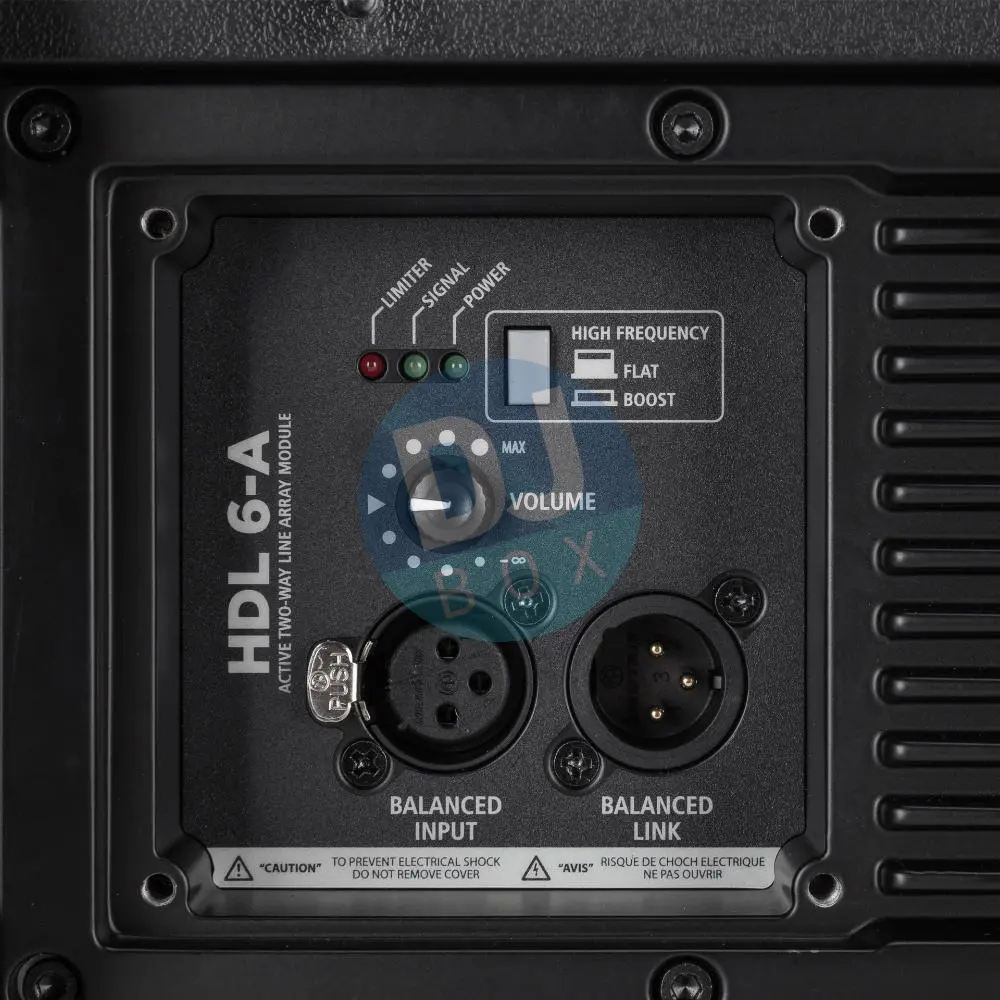

Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
+4 dBu
PROCESSOR SECTION
Crossover Frequencies
900 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
HF correction
POWER SECTION
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections

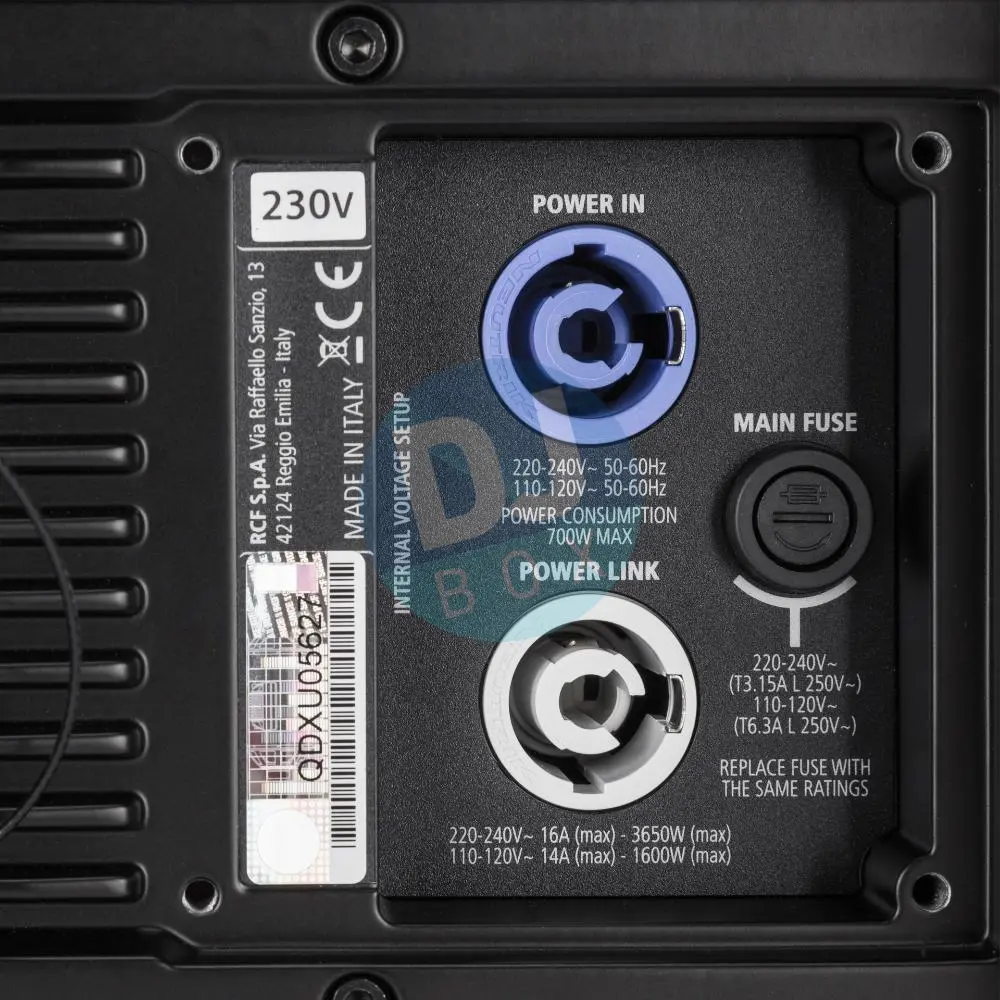

Powercon IN/OUT
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material
PP Composite
Hardware

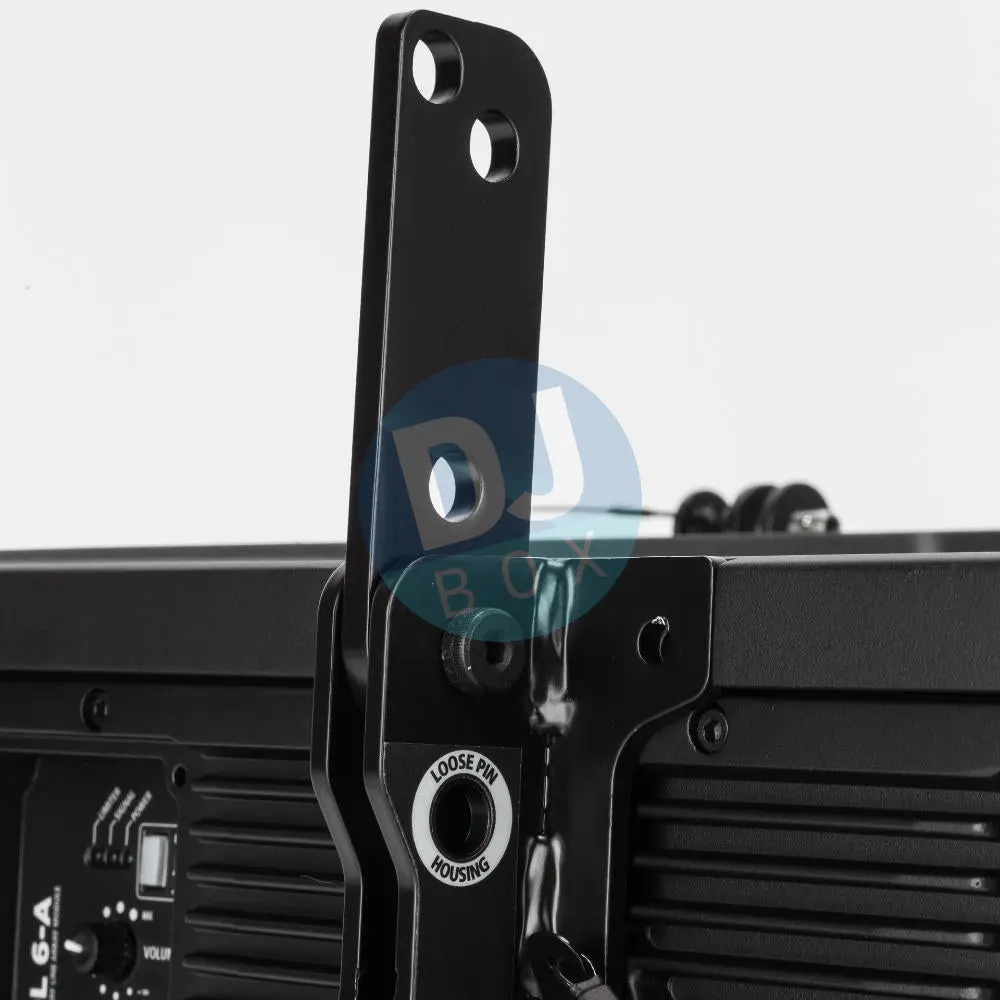

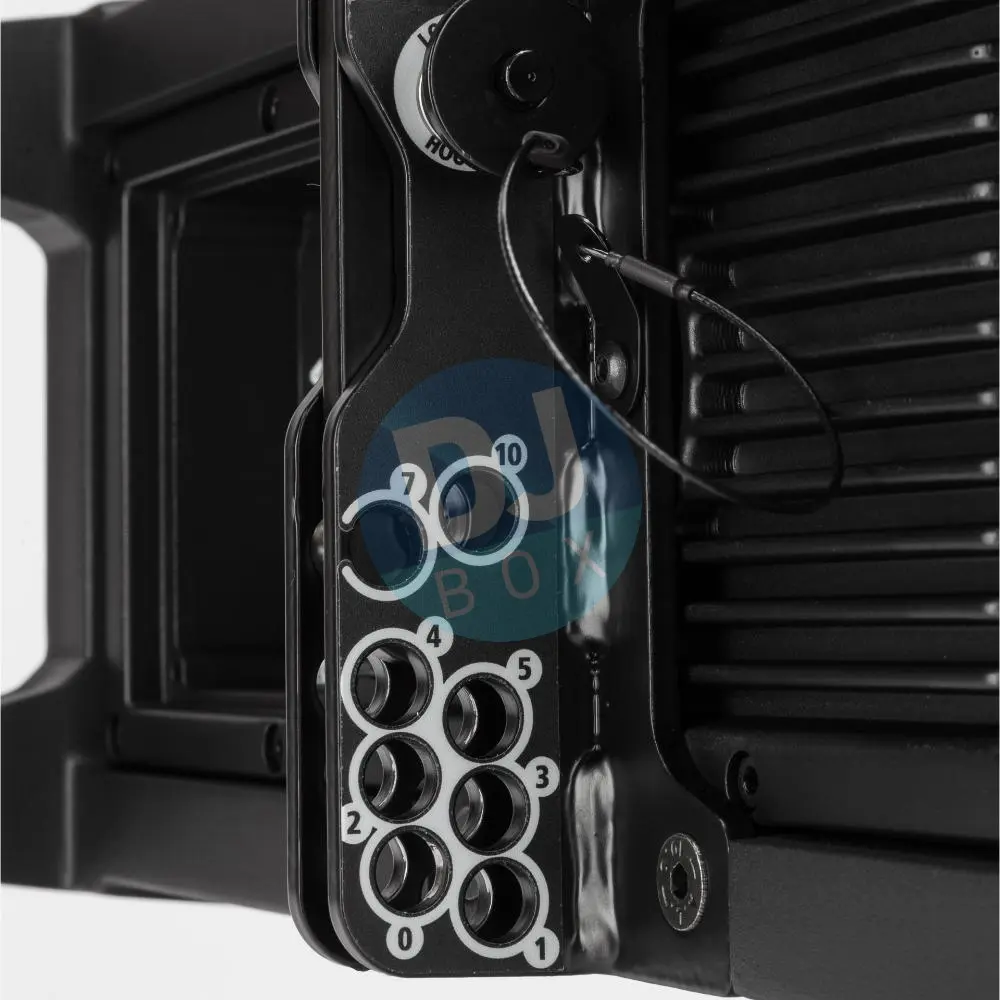

Array fittings
Handles
2 Back
Grille
Steel
Color
Black, White
SIZE / WEIGHT
Height
237 mm / 9.33 inches
Width
470 mm / 18.5 inches
Depth
377 mm / 14.84 inches
Weight
11.6 kg / 25.57 lbs
SHIPPING INFORMATION
Package Height
260 mm / 10.24 inches
Package Width
550 mm / 21.65 inches
Package Depth
425 mm / 16.73 inches
Package Weight
13 kg / 28.66 lbs
$631.06

Original: $1,803.04

-65%
RCF HDL 6-A ACTIVE LINE ARRAY MODULE

$1,803.04

$631.06
Product image 1
Product image 2
Product image 3

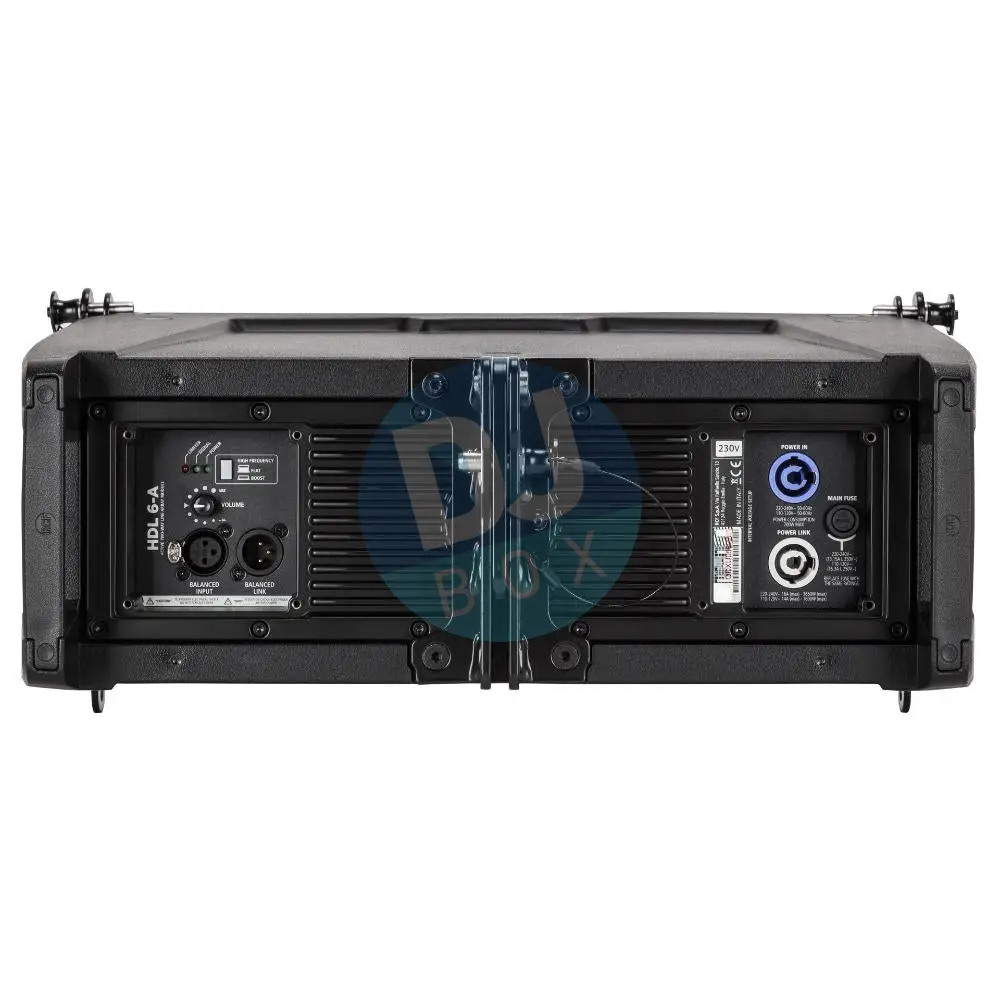

Product image 4

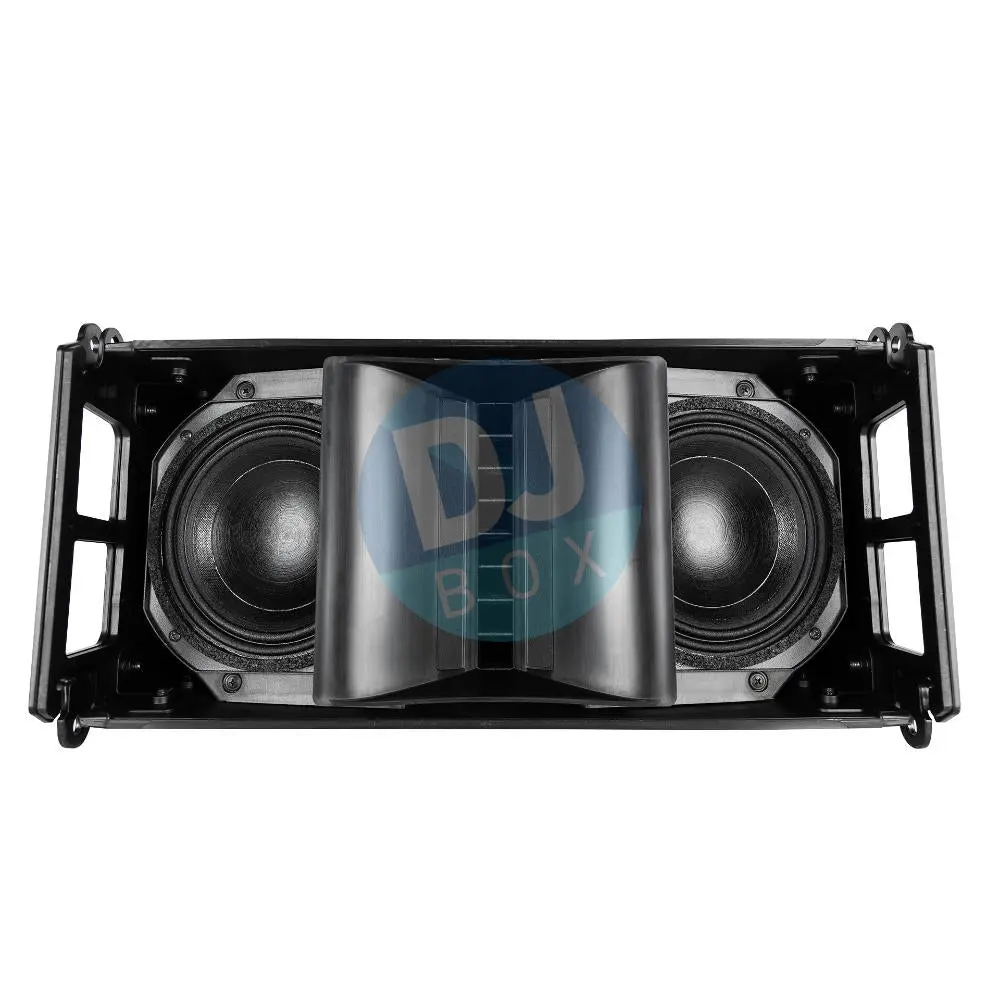

Product image 5
