RCF HDL 10-A ACTIVE LINE ARRAY MODULE

RCF HDL 10-A ACTIVE LINE ARRAY MODULE

RCF HDL 10-A ACTIVE LINE ARRAY MODULE

FEATURES
  • 1400 Watt Peak power - 700 Watt RMS
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
  • 2 x 8" Woofers
  • 1 x 2" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced

The very compact size, no compromise transducers and a unique composite cabinet design make the RCF HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.

ACOUSTICAL SPECIFICATIONS
Frequency Response
65 Hz ÷ 20000 Hz
Max SPL @ 1m
133 dB
Horizontal coverage angle
100°
Vertical coverage angle
15°
TRANSDUCERS
Compression Driver
1 x 2.0'', 2.5'' v.c
Woofer
2 x 8'', 2.0'' v.c
INPUT/OUTPUT SECTION
Input signal
bal/unbal
Input connectors
XLR
Output connectors
XLR
Input sensitivity
-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover Frequencies
800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Cluster, HF, High curving, Indoor
POWER SECTION
Total Power
1400 W Peak, 700 W RMS
High frequencies
400 W Peak, 200 W RMS
Low frequencies
1000 W Peak, 500 W RMS
Cooling
Convection
Connections
Powercon IN/OUT
STANDARD COMPLIANCE
Safety agency
CE compliant
PHYSICAL SPECIFICATIONS
Cabinet/Case Material
PP Composite

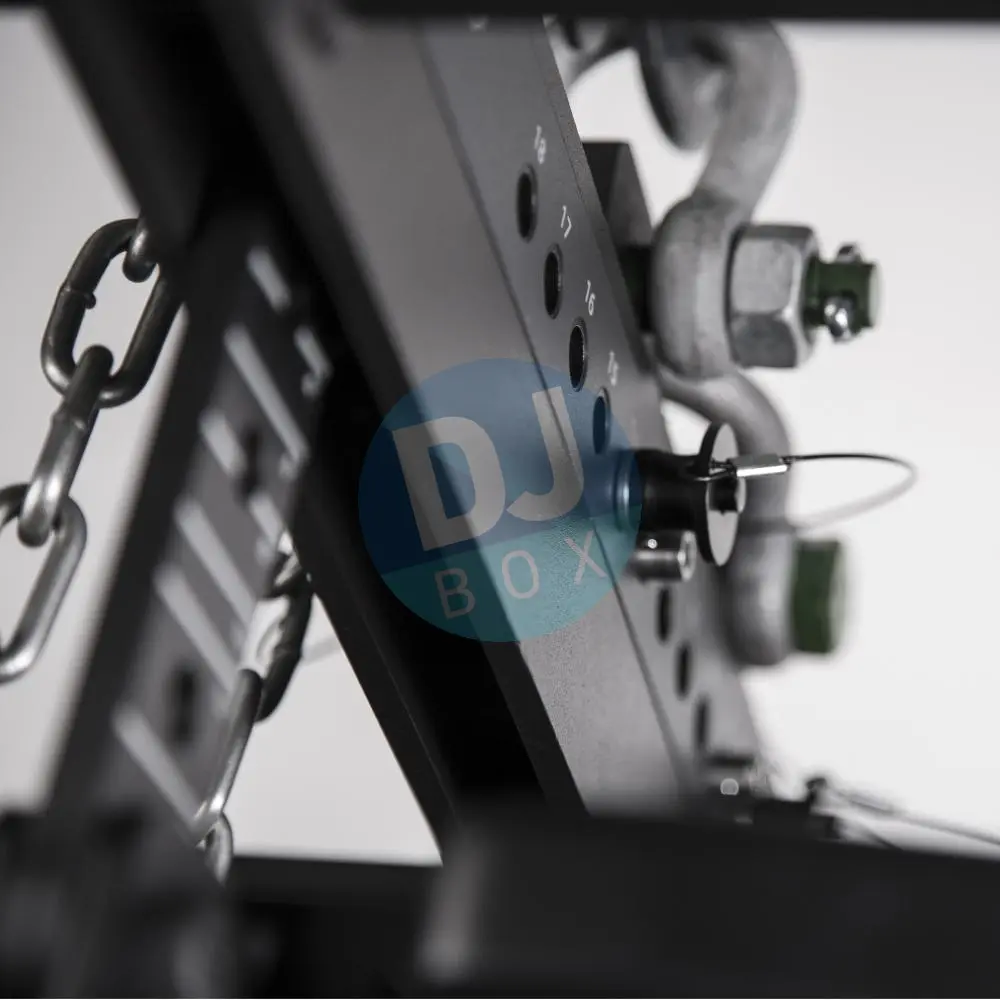

Hardware
Rigging flyware
Handles
2 side
Grille
Steel
Color
Black, White
SIZE / WEIGHT
Height
294 mm / 11.57 inches
Width
569 mm / 22.4 inches
Depth
434 mm / 17.09 inches
Weight
20.4 kg / 44.97 lbs
SHIPPING INFORMATION
Package Height
375 mm / 14.76 inches
Package Width
650 mm / 25.59 inches
Package Depth
500 mm / 19.69 inches
Package Weight
23 kg / 50.71 lbs
$794.02

Original: $2,268.64

-65%
RCF HDL 10-A ACTIVE LINE ARRAY MODULE

$2,268.64

$794.02
Product image 1
Product image 2
Product image 3
Product image 4

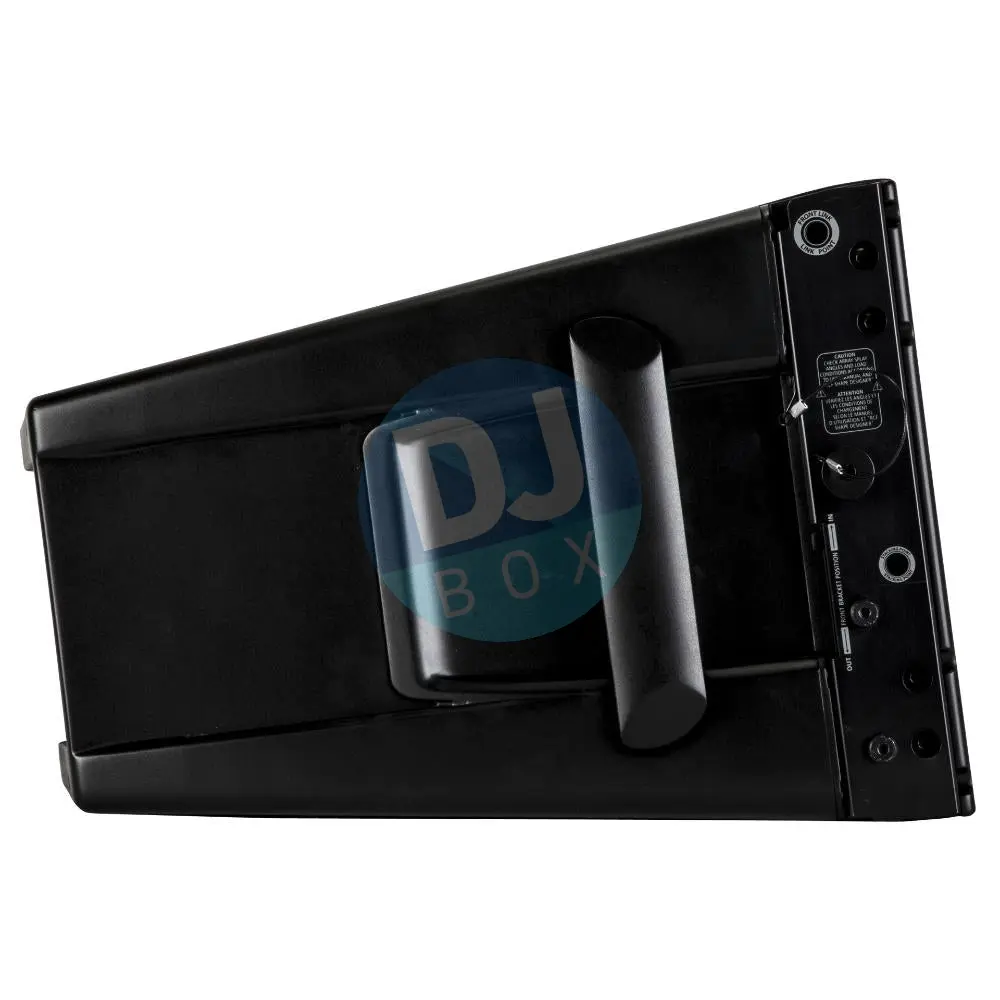

Product image 5
Product image 6
Product image 7

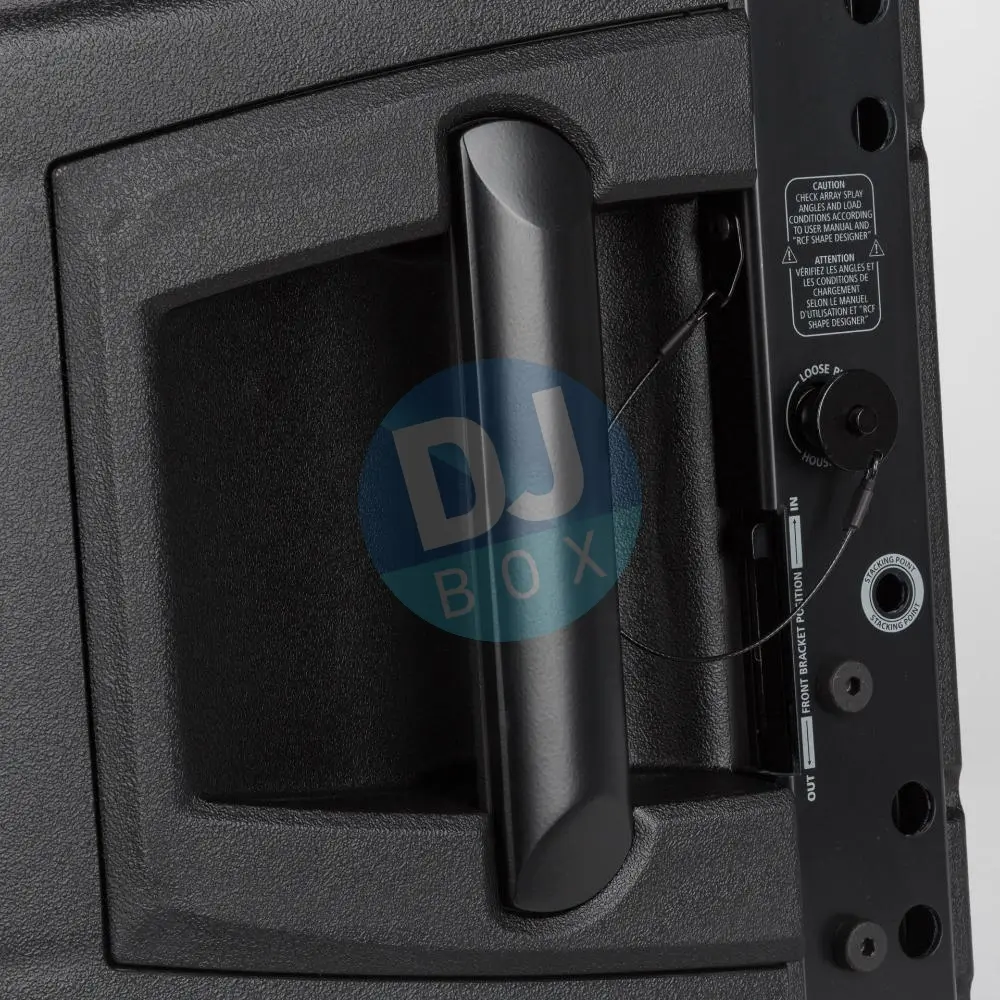

Product image 8
Product image 9
Product image 10

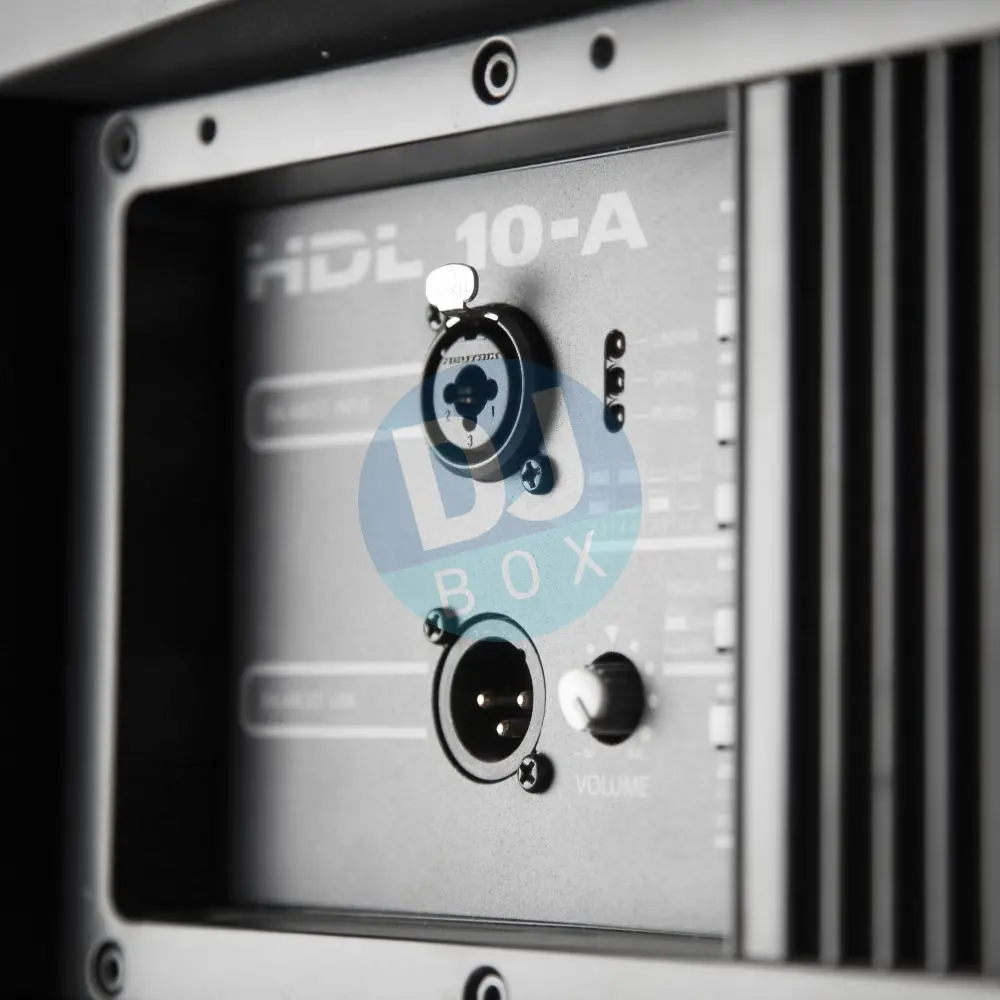

Product image 11
Product image 12
Product image 13
