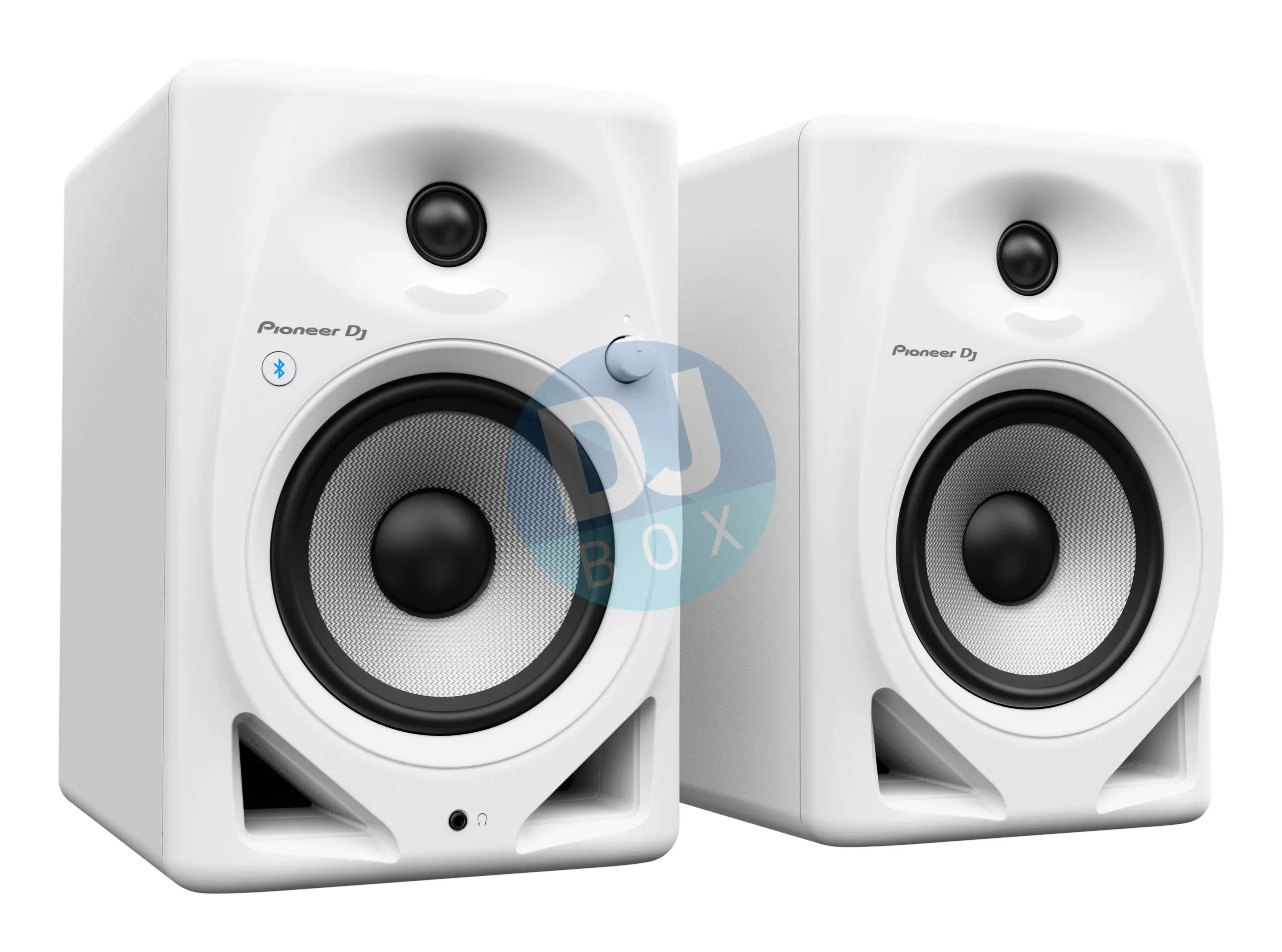

Pioneer DJ DM-50D-BT Monitor

DM-50D-BT

DM-50D

DM-40D-BT

DM-40D

Type

2-way bass reflex, active monitor speakers

Amplifier

Amplifier type

Class D with DSP

Amplifier output

Lch: 25 W / 4 Ω, Rch: 25 W / 4 Ω

Lch: 19 W / 4 Ω, Rch: 19 W / 4 Ω

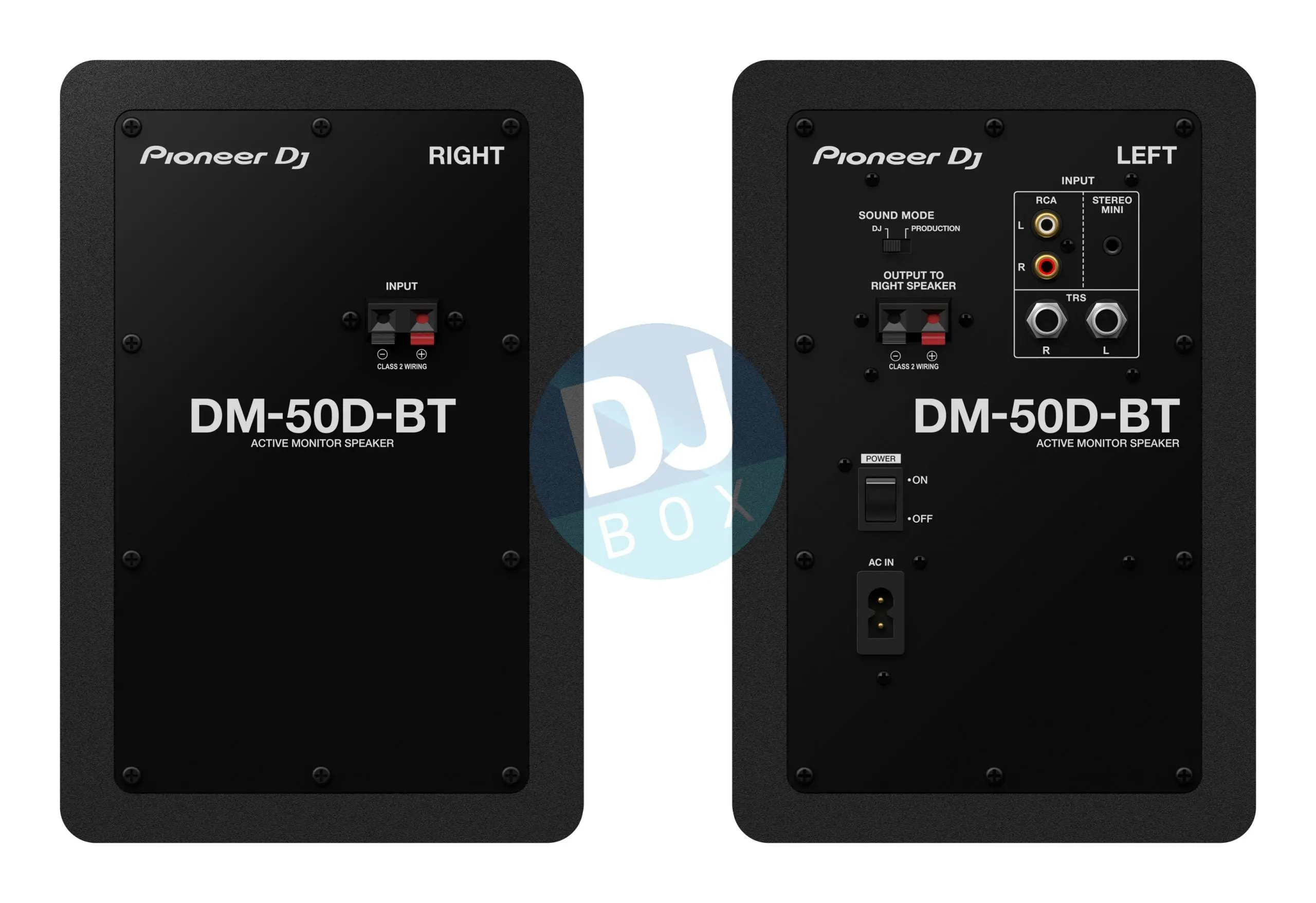

Input terminals (balanced input)

1/4” TRS jack x 1

-

Input terminals (unbalanced input)

RCA pin jack x 1, 3.5-mm stereo mini jack x 1

Input impedance

10 kΩ

Output terminal

3.5-mm stereo mini jack x 1

Speaker

Enclosure

Bass reflex

Enclosure material

MDF vinyl laminate

Woofer (LF driver)

5" (127 mm) fiberglass cones

4" (102 mm) fiberglass cones

Tweeter (HF driver)

3/4” (19 mm) soft dome

Bluetooth®

Version

Bluetooth®

Specification Ver. 5.0

-

Bluetooth® Specification Ver. 5.0

-

Maximum transmission distance

Approximately 10 m in unobstructed circumstances*

-

Approximately 10 m in unobstructed circumstances*

-

Frequency used

2.4 GHz

-

2.4 GHz

-

Modulation

FH-SS (Frequency Hopping Spread Spectrum)

-

FH-SS (Frequency Hopping Spread Spectrum)

-

Supported Bluetooth profiles

A2DP, AVRCP

-

A2DP, AVRCP

-

Supported Codec

SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX™ Low Latency

-

SBC, AAC

-

Power unit/other

Supported voltages

AC 110 V — 240 V, 50 Hz / 60 Hz

Power consumption

25 W

20 W

Power consumption during standby mode

0.3 W or less

Max dimensions (W ｘ D ｘ H)

Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”

Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”

Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78”

Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35”

Weight

Lch: 3.9 kg / 8.6 lbs.

Rch: 3.5 kg / 7.7 lbs.

Lch: 2.5 kg / 5.5 lbs.

Rch: 2.2 kg / 4.9 lbs.

Accessories

Power cord

Audio converter cable (3.5 mm stereo mini plug to RCA)

Speaker cord

Bottom cushions

Quick Start Guide

Precautions for Use

Warranty (for selected regions)
