Pioneer DJ DM-40D monitor speaker

Pioneer DJ DM-40D monitor speaker

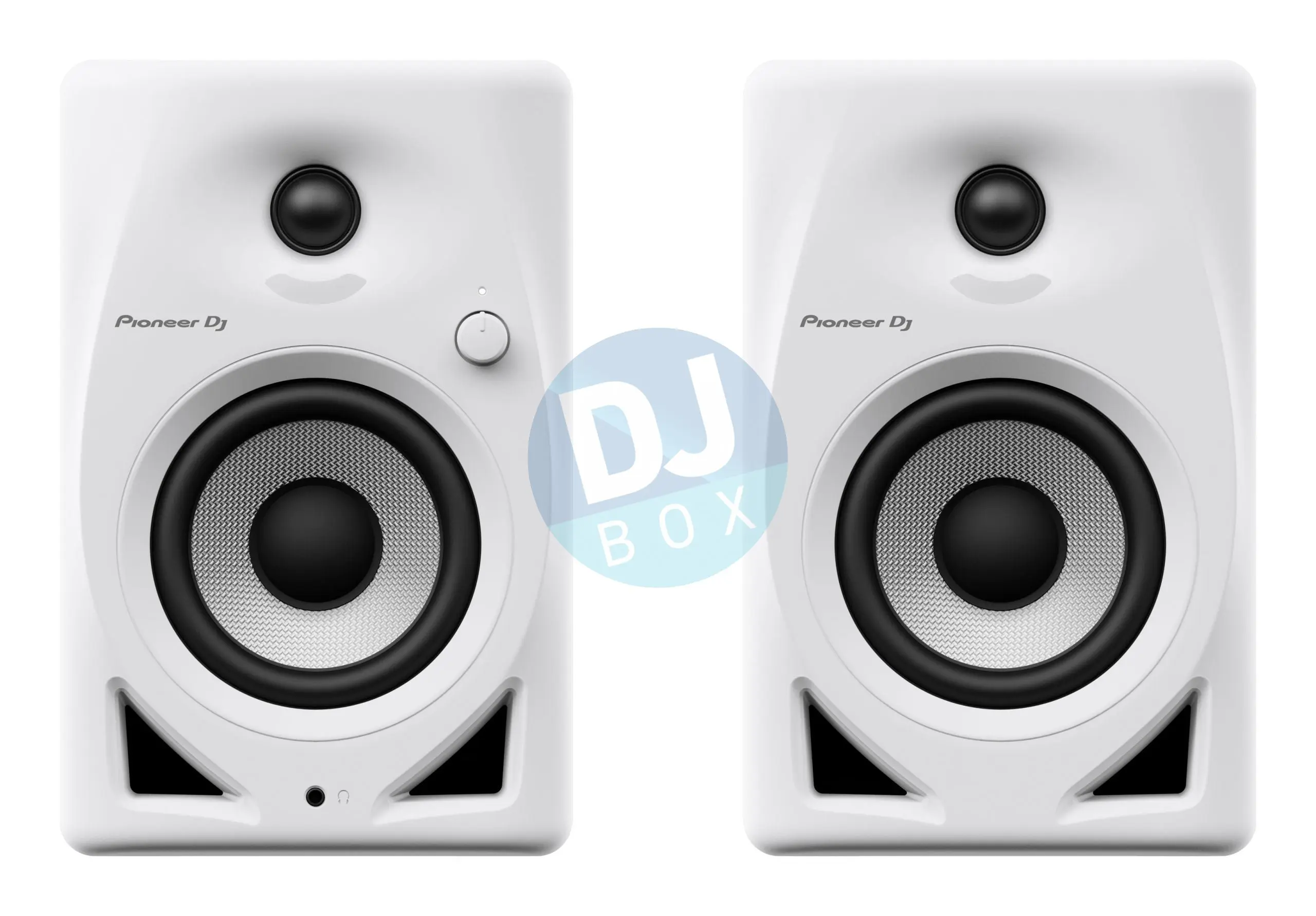

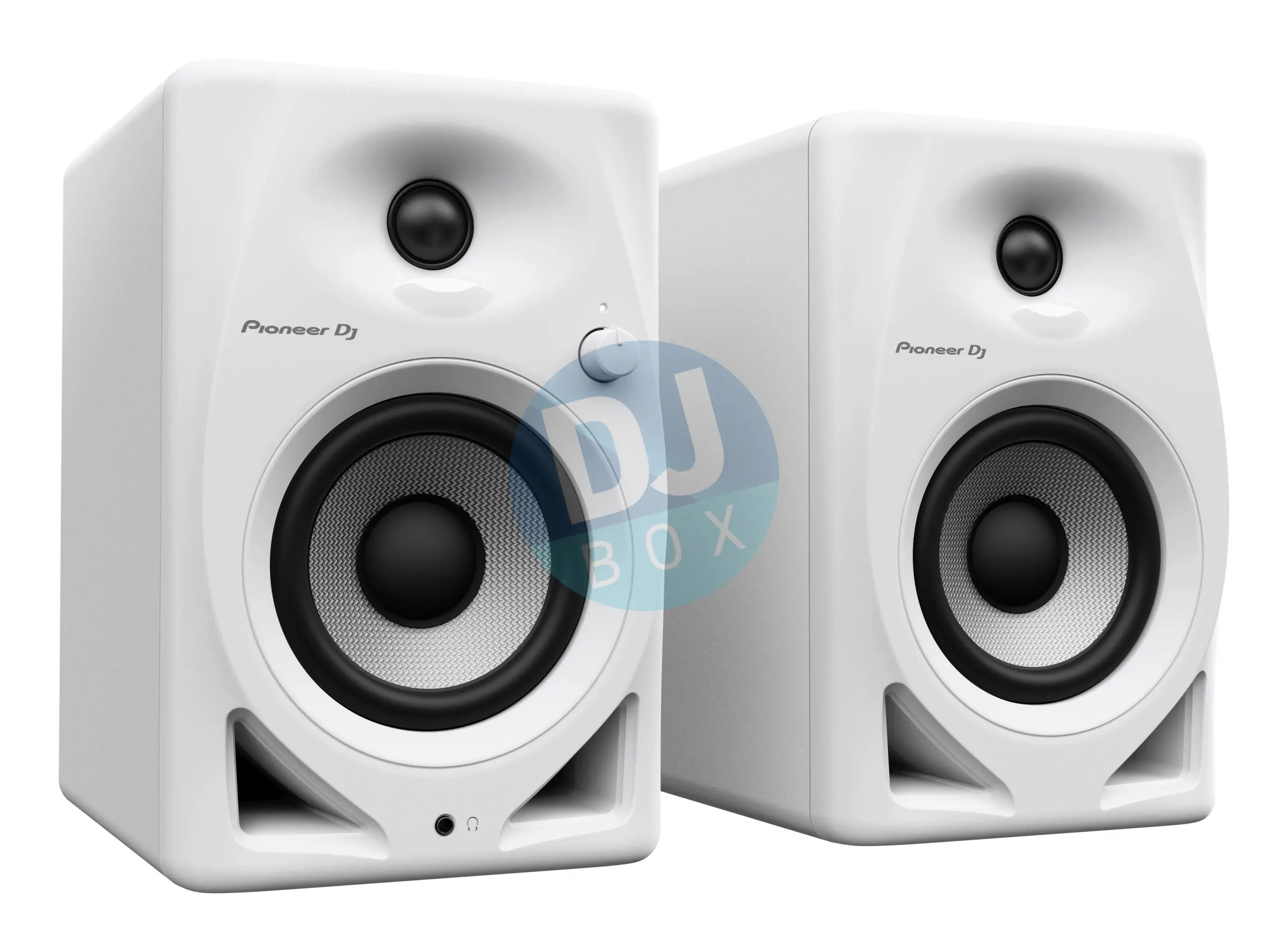

DM-40D 4 inch desktop monitor system

The DM-40D speakers form a brand-new easy-to-use 4-inch desktop monitor system. Sold in pairs, these speakers enable users to enjoy high-quality, powerful sound and to change from DJ mode to Production mode at the fl ip of a switch, with DSP settings automatically optimized for the chosen application.

Thanks to the 2-way sound mode, there’s no need to own different sets of speakers for DJing and making music, or to choose a set that’s more suited to one task. The DM-40D system is perfect for both.

The DM-40D signifi cantly improves on the DM-40 thanks to its advanced design for high-quality sound, plus its refi ned components, including the Class D amplifier. It also features the handy 2-way sound mode for DJs/producers.

• Advanced design for high-quality sound The speakers are loaded with fresh components including a Class D amplifi er with 96 kHz sampling DSP, updated DECO convex diffusers, and a new 4-inch woofer that’s perfectly aligned with the tweeter. This enables them to produce pure, balanced bass sound, crystalclear high frequencies, and plenty of power when it’s needed.

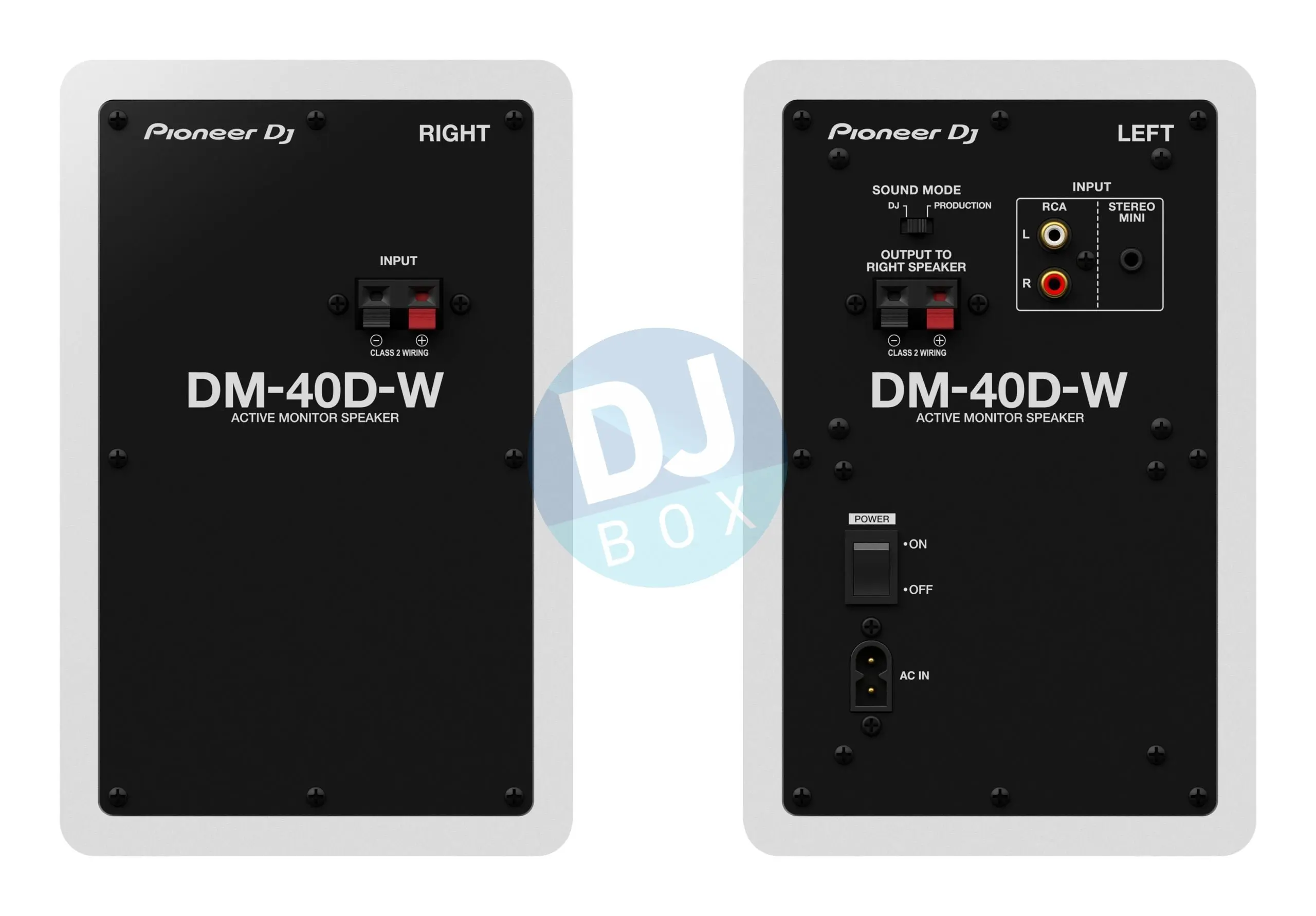

• 2-way sound mode With a fl ip of a single switch, the speakers change from DJ mode to Production mode, with DSP settings automatically optimizing for the chosen task. • Multiple inputs All kinds of DJ and production gear can be connected to the RCA and mini jack input terminals.

• Easy to use The headphones socket and level knob are easily found on the front panel, so there’s no need to reach around the back.

• Smart design, available in black or white With a slick, professional look, the speakers can be matched with classic DJ gear or the interior design of a room thanks to the choice of black or white models

SPECIFICATIONS

	DM-50D-BT	DM-50D	DM-40D-BT	DM-40D
Type	2-way bass reflex, active monitor speakers
Amplifier
Amplifier type	Class D with DSP
Amplifier output	Lch: 25 W / 4 Ω, Rch: 25 W / 4 Ω		Lch: 19 W / 4 Ω, Rch: 19 W / 4 Ω
Input terminals (balanced input)	1/4” TRS jack x 1		-
Input terminals (unbalanced input)	RCA pin jack x 1, 3.5-mm stereo mini jack x 1
Input impedance	10 kΩ
Output terminal	3.5-mm stereo mini jack x 1
Speaker
Enclosure	Bass reflex
Enclosure material	MDF vinyl laminate
Woofer (LF driver)	5" (127 mm) fiberglass cones		4" (102 mm) fiberglass cones
Tweeter (HF driver)	3/4” (19 mm) soft dome
Bluetooth®
Version	Bluetooth® Specification Ver. 5.0	-	Bluetooth® Specification Ver. 5.0	-
Maximum transmission distance	Approximately 10 m in unobstructed circumstances*	-	Approximately 10 m in unobstructed circumstances*	-
Frequency used	2.4 GHz	-	2.4 GHz	-
Modulation	FH-SS (Frequency Hopping Spread Spectrum)	-	FH-SS (Frequency Hopping Spread Spectrum)	-
Supported Bluetooth profiles	A2DP, AVRCP	-	A2DP, AVRCP	-
Supported Codec	SBC, AAC, Qualcomm® aptX™, Qualcomm® aptX™ Low Latency	-	SBC, AAC	-
Power unit/other
Supported voltages	AC 110 V — 240 V, 50 Hz / 60 Hz
Power consumption	25 W		20 W
Power consumption during standby mode	0.3 W or less
Max dimensions (W ｘ D ｘ H)	Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12” Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”		Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78” Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35”
Weight	Lch: 3.9 kg / 8.6 lbs. Rch: 3.5 kg / 7.7 lbs.		Lch: 2.5 kg / 5.5 lbs. Rch: 2.2 kg / 4.9 lbs.
Accessories	Power cord Audio converter cable (3.5 mm stereo mini plug to RCA) Speaker cord Bottom cushions Quick Start Guide Precautions for Use Warranty (for selected regions)
