Flash - Event LedBarACCU 920 IP WDMX
Flash - Event LedBarACCU 920 IP WDMX

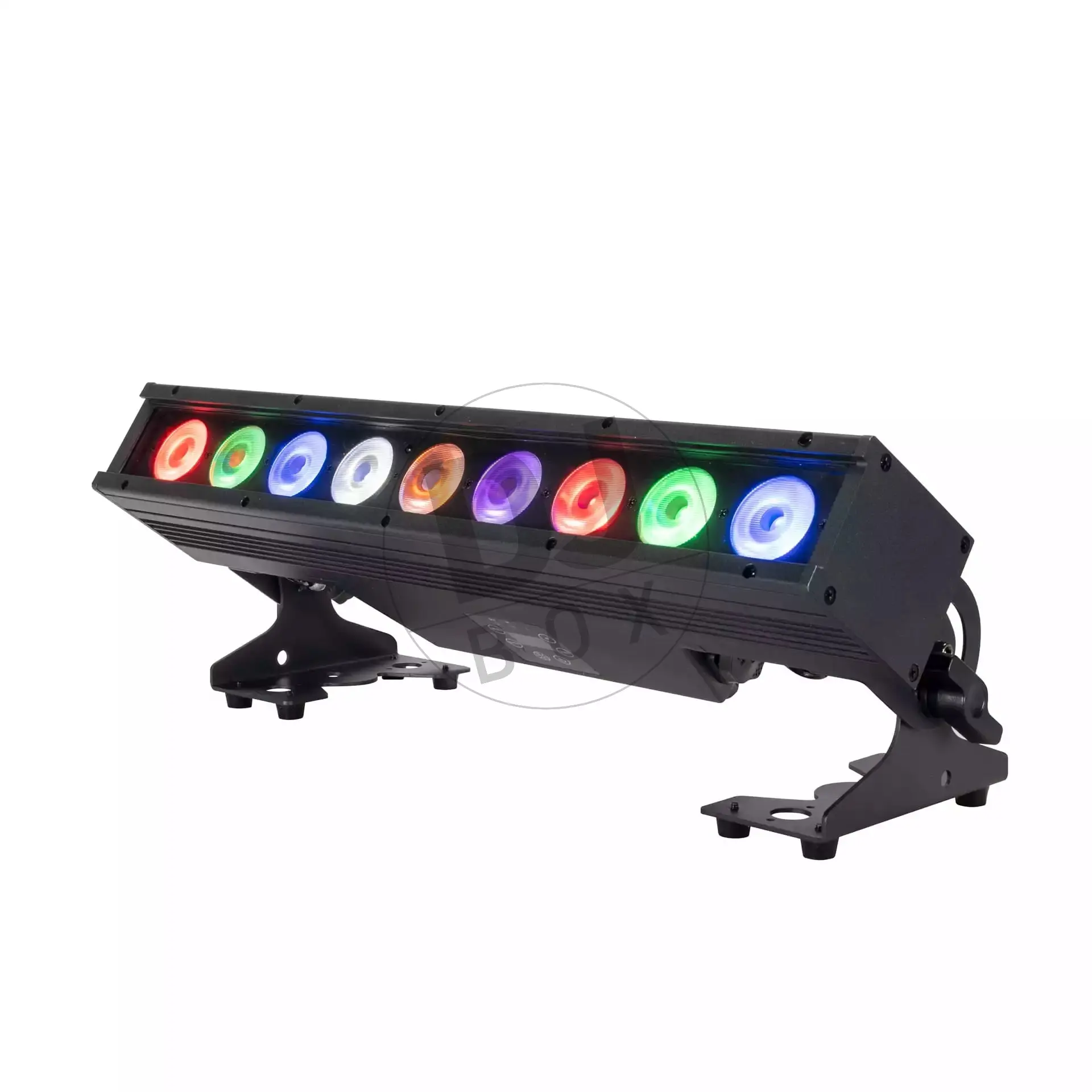

Flash LedBarACCU 920 IP WDMX is a very durable, multi-purpose LED battery bar in IP65 waterproof class. Equipped with high quality 9 diodes with a power of 18W each, enabling smooth mixing of RGBW-AUV colors with a constant angle of light, with an exceptionally high operating frequency of diodes at 64 kHz, which allows to eliminate the flickering effect and a built-in 2.4G receiver / transmitter for wireless DMX operation. In addition to the constant power source (AC), this device uses efficient battery technology, based on lithium batteries (18650) which can be charged and discharged more than 500 times. Full charging of the batteries takes +/- 6h, which allows 2-3h of work of the reflector at maximum light output, 5-6 hours in automatic mode, 15h in monochrome mode. In addition, this multi-purpose LedBarACCU 920 IP65 allows for multiple control modes: wireless DMX 512, DMX512, Sound control, Auto control, Master-slave, IR, Wi-FI.
To ensure maximum power and extend battery life, we recommend charging your device until the green LED indicator lights up. This charging method allows the battery to be fully charged, which translates into better performance and longer battery life. Take care of your device by using its full capabilities!

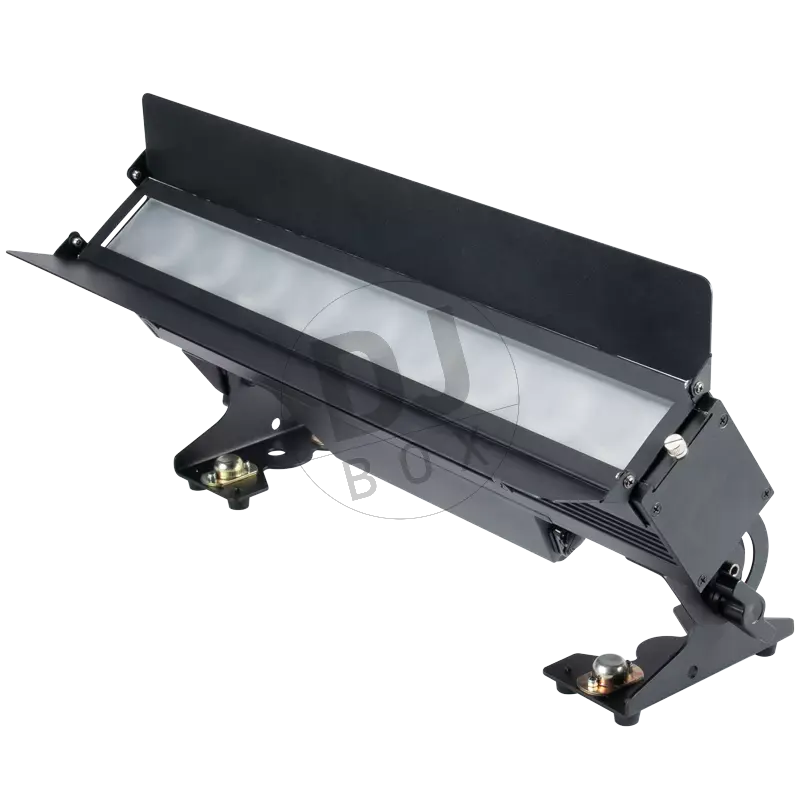

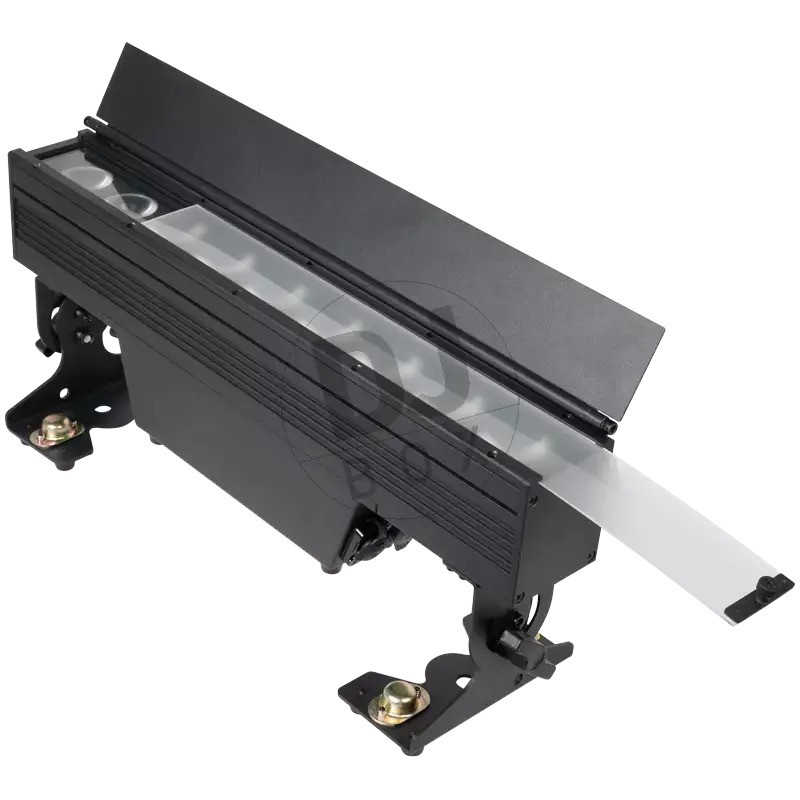

To meet the expectations of our customers, we have prepared a special offer consisting of six maximally equipped devices in a massive transport box.1) - 1x Case with built-in TrueCON IN/OUT socket2) - 6x LedBarACCU 920 IP WDMX3) - 6x Barndoor diffuser made of milky plexiglass4) - 1x Power cable for Powerbank (in Case) type TrueCON (In)5) - 6x Power cable TrueCON6) - 6x DMX cable7) - 12x Omega bracket8) - 12x Hook for Omega bracket9) - 6x IR remote10) - Passive 230 V AC power distribution system integrated in a transport case for charging LEDBAR fixtures.
Power Source (AC) |
|
|---|---|
| Supply voltage | 110-250V |
| Power consumption | 162W |
| Power frequency | 50-60Hz |
Supply voltage (DC) |
|
|---|---|
| Battery | 18650mAh lithium |
Light source |
|
|---|---|
| Type | LED (RGBWAUV) |
| Quantity | 9 |
| Power (W) | 18 |
| Number of control sections | 9 |
| Color temperature | 2000K-10000K |
| Color Rendering Index (CRI) | 90 |
Color Mixing System |
|
|---|---|
| RGBWAUV | 8 bit |
Beam angle |
|
|---|---|
| Beam angle | Fixed |
CTO |
|
|---|---|
| CTO | (smooth) |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 5 |
| Number of channels | 6-54 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| W-DMX | Yes |
| F-DMX | Yes |
| CRMX | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| WI-FI | Yes |
| IR control | Yes |

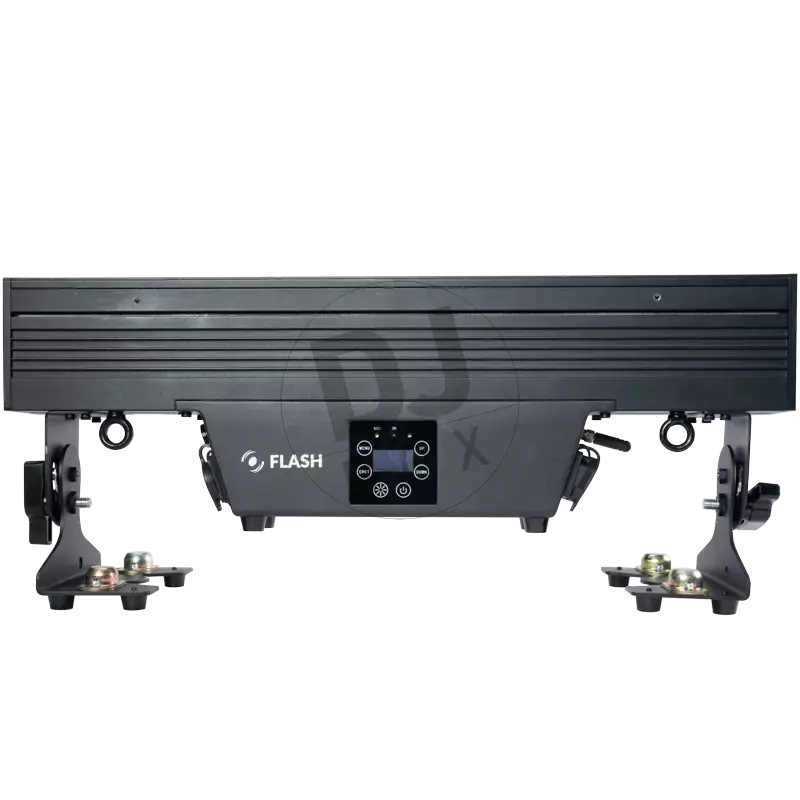

User Interface |
|
|---|---|
| Capacitive (touch) buttons | Yes |

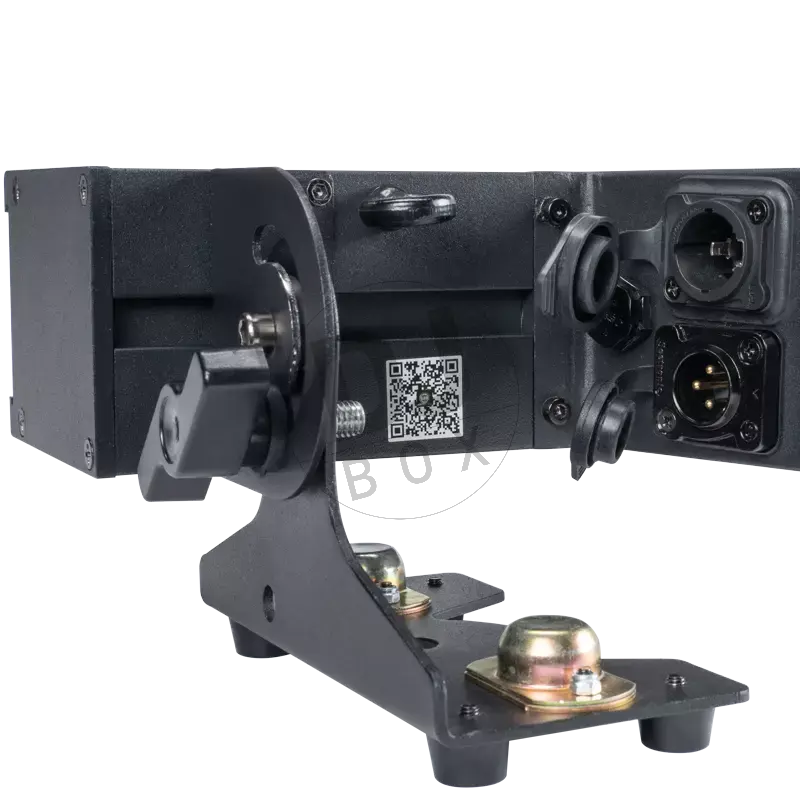

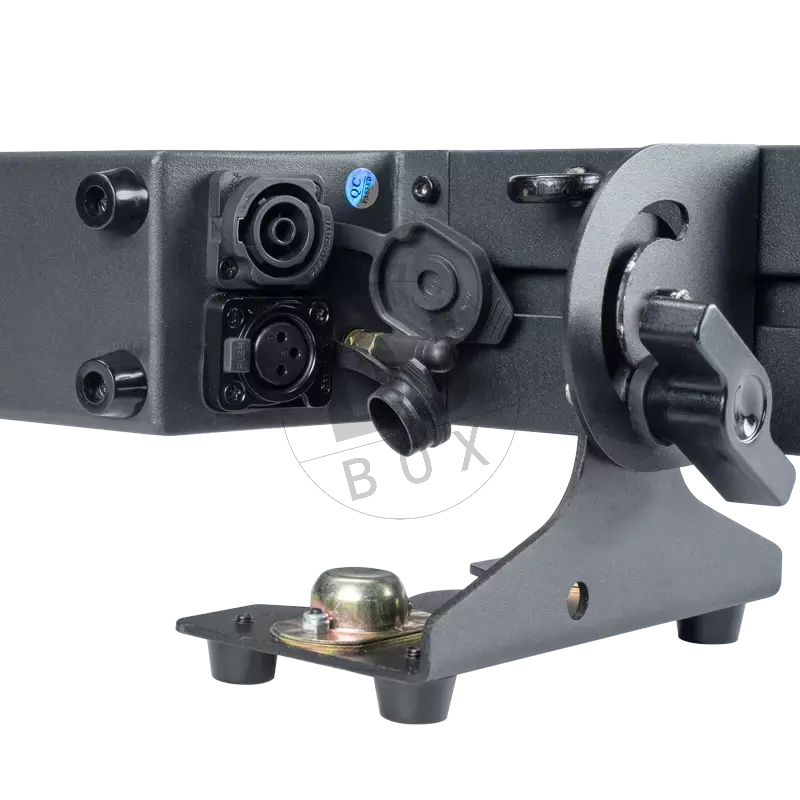

Connectors |
|
|---|---|
| AC IN | TrueCon IP65 |
| AC OUT | TrueCon IP65 |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP65 |
| Housing type | Aluminium |
| Fixing | Integrated |
| Housing Color | Black |
| Cooling | Passive |
| Length [cm] | 50 |
| Width [cm] | 21 |
| Height [cm] | 13 |
| Weight [kg] | 5,8 |
Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | TrueCON |
| Device | LedBarACCU 920 IP WDMX |
| Handle | Integrated |

Original: $732.16
-65%$732.16
$256.26
