Flash - Art BarFX 800 IP65

Flash - Art BarFX 800 IP65 – Professional LED Bar for indoor and outdoor use

The power of light in a compact form
The Flash BarFX 800 IP65 is a modern 800W LED Bar delivering an impressive light output of 40,000 lumens.
The fixture features two independent light sources:
112 × 5W White LEDs (6500K) – bright, intense white light with 16 control sections,
224 × 2W RGBW LEDs – full color palette and creative effects with 16 control sections.
A fixed 75° beam angle, manual Frost filter, and 16-bit smooth dimming make the BarFX 800 IP65 a perfect tool for both wash and effect lighting, as well as a powerful strobe for large stages, event installations, or architectural illumination.

Creativity and precision
Thanks to independent control of 16 RGBW pixels and 16 white sections, along with built-in effect macros, users gain vast creative potential.
The fixture also offers strobe effects (frequency 1–30 Hz) with both pulse and random modes.

Ready for any environment
The IP65-rated housing guarantees full protection against rain, dust, and challenging outdoor conditions.
Its passive cooling system ensures silent operation, while the specially designed housing allows installation in any orientation and the connection of multiple units into one seamless line using the included linking pins.

Professional control and integration
The BarFX 800 IP65 supports:
DMX512 (13–89 channels, 5 modes – 3 DMX and 2 Art-Net),
RDM and Art-Net,
AUTO mode.
This makes it easy to integrate into professional lighting systems.
An intuitive LCD display with control buttons allows for quick and convenient setup. The fixture is equipped with a complete set of professional-grade connectors, ensuring fast, secure, and reliable operation in any stage environment. TrueCON IP65 (AC IN/OUT) connectors provide robust, waterproof power connections even in the harshest outdoor conditions. For signal communication, 3-pin XLR (DMX IN/OUT) connectors guarantee full compatibility with professional lighting control systems. Additionally, EtherCON (IN/OUT) ports enable Art-Net integration and network communication via a standard RJ45 cable, offering enhanced flexibility and easy system management.

Durability and mobility
With its compact dimensions (102 × 18 × 9 cm, weight 10.4 kg), aluminium housing, and multiple mounting options (Omega brackets, linking pins, side adapter, safety point), the BarFX 800 IP65 ensures fast, secure, and versatile installation in any environment.

Key features of BarFX 800 IP65:
Power: 800W and 40,000 lm luminous flux
112 × 5W White LEDs + 224 × 2W RGBW LEDs
16 white control sections + 16 RGBW sections
Independent pixel control and built-in effect macros

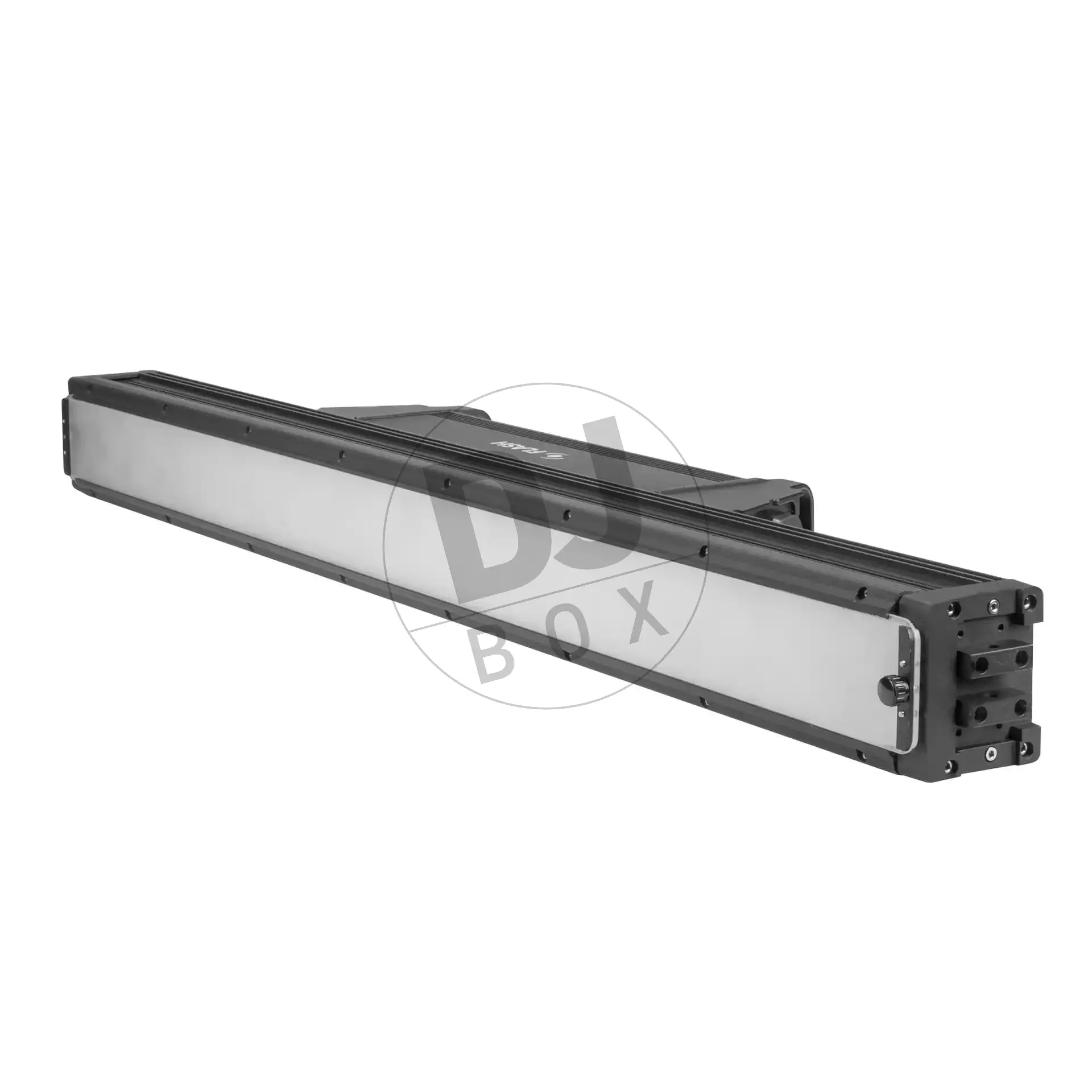

Fixed 75° beam angle + Frost filter
Strobe effects (1–30 Hz)
IP65 protection rating – weather-resistant design
Passive cooling – completely silent operation
Linkable system – multiple units can form one seamless light line

Flash ART BarFX 800 IP65 – Professional LED Bar for any environment
The Flash ART BarFX 800 IP65 is a professional LED Bar designed to perform in all conditions – from large concert stages and outdoor festivals to corporate events and architectural installations.

A set designed for professional lighting and rental companies
When purchasing four units of BarFX 800 IP65, you receive a dedicated wheeled flight case, engineered for both convenience and safety, along with a complete set of accessories.
The entire case construction – from plywood and profiles to locks and fittings – features an elegant black finish for a clean, professional look. It is equipped with ergonomic handles for easy transport and a stacking system that ensures stability when stored. A dedicated label slot makes warehouse organization easier and faster.
The interior has been precisely designed to hold 4 BarFX 800 IP65 units and all essential accessories:
4 × TrueCON power cables
4 × DMX cables
8 × linking pins
8 × Omega brackets
8 × side mounting adapters
4 × vertical mounting adapters
4 × safety cables
4 × Frost filters
This well-thought-out, complete set provides maximum transport convenience, efficient storage, and full readiness for operation in any condition.

Choose power, precision, and reliability – choose BarFX 800 IP65!
