ADJ VINTAGE X

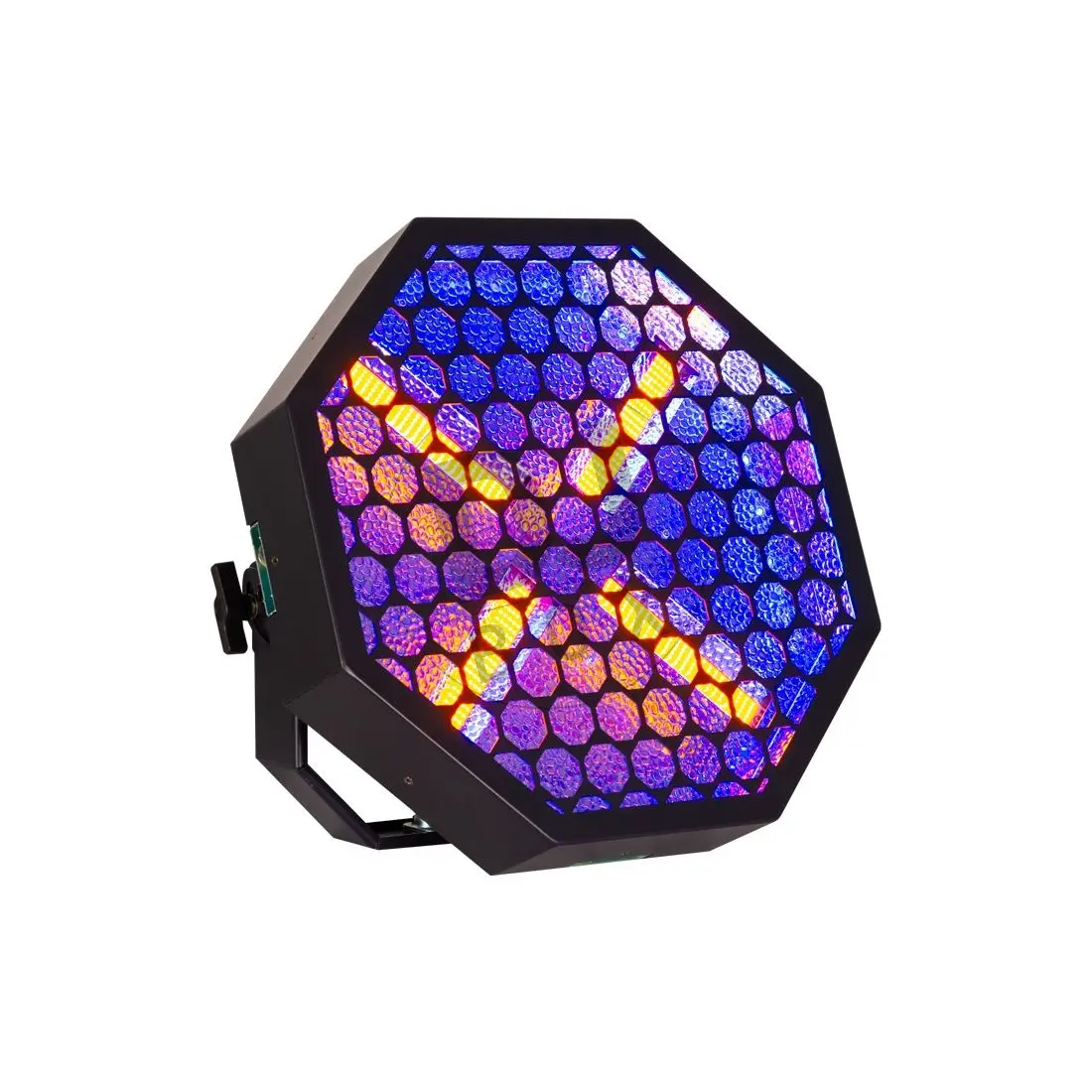

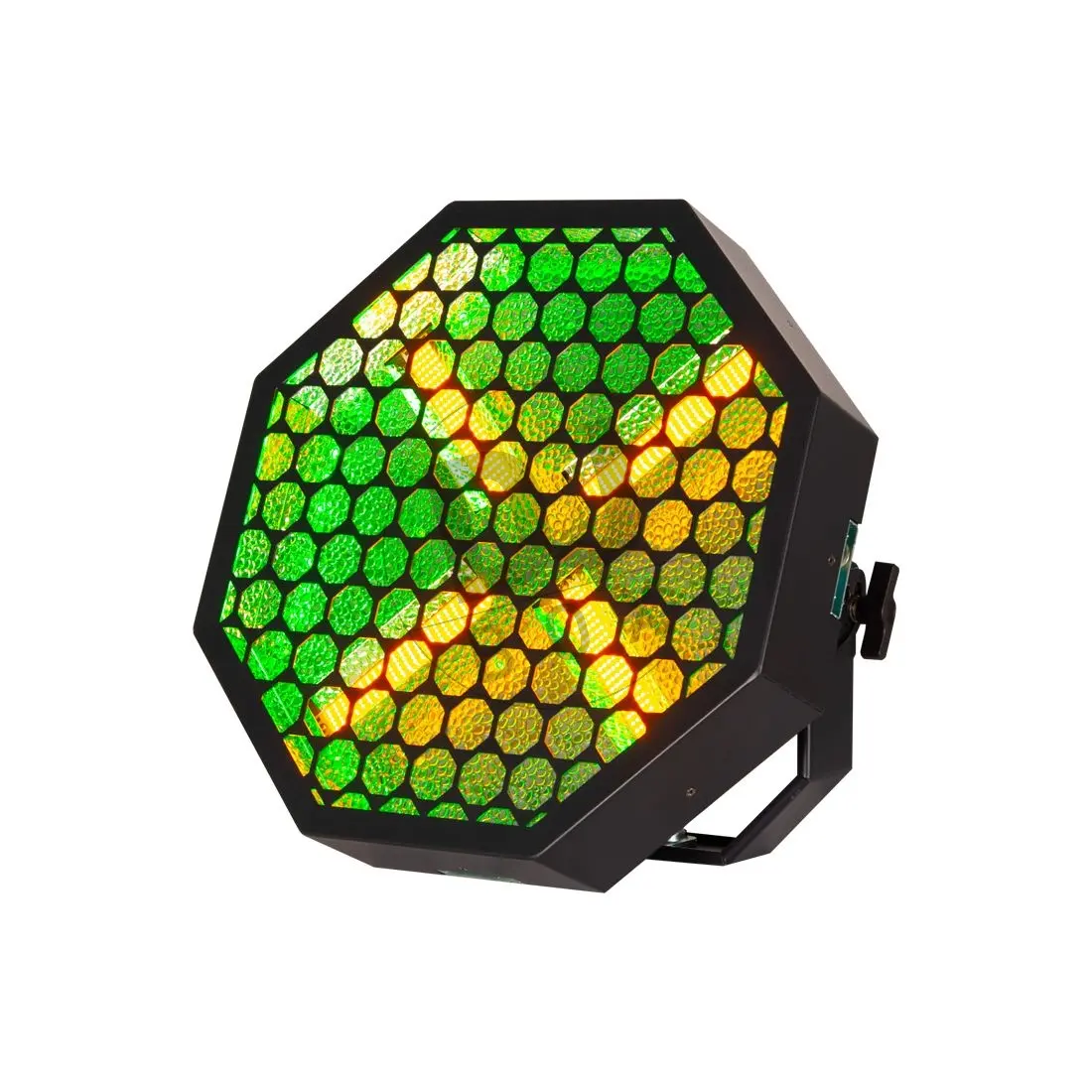

ADJ Vintage X is a highly adaptable scenic lighting fixture that sparks creativity and captures attention with its dual-purpose design. Featuring four 60-watt foreground amber LEDs (2000K), it emulates the warm glow of tungsten for a retro blinder effect, while 64 vibrant 3-watt RGB LEDs deliver rich, dynamic color tones and stunning effects. This combination allows for smooth dimming transitions and bold, captivating lighting displays in an intriguing octagon shaped fixture.

With its wide 150-degree field angle, the Vintage X ensures excellent light coverage, making it perfect for stage productions, live events, and theatrical applications. Additional features include advanced strobing effects, retro background lighting, and silent operation, while its flicker-free performance guarantees smooth visuals. The fixture also boasts a user-friendly OLED display and compatibility with DMX, RDM, Bluetooth, and Aria X2.

Designed for flexibility, the Vintage X supports multiple control modes, and interlocking, making it ideal for immersive lighting environments. Combining classic vintage aesthetics with cutting-edge technology, it offers both creative versatility and reliable performance for modern lighting designs.

1. Light Source & Optical Performance

• Amber Foreground LEDs:

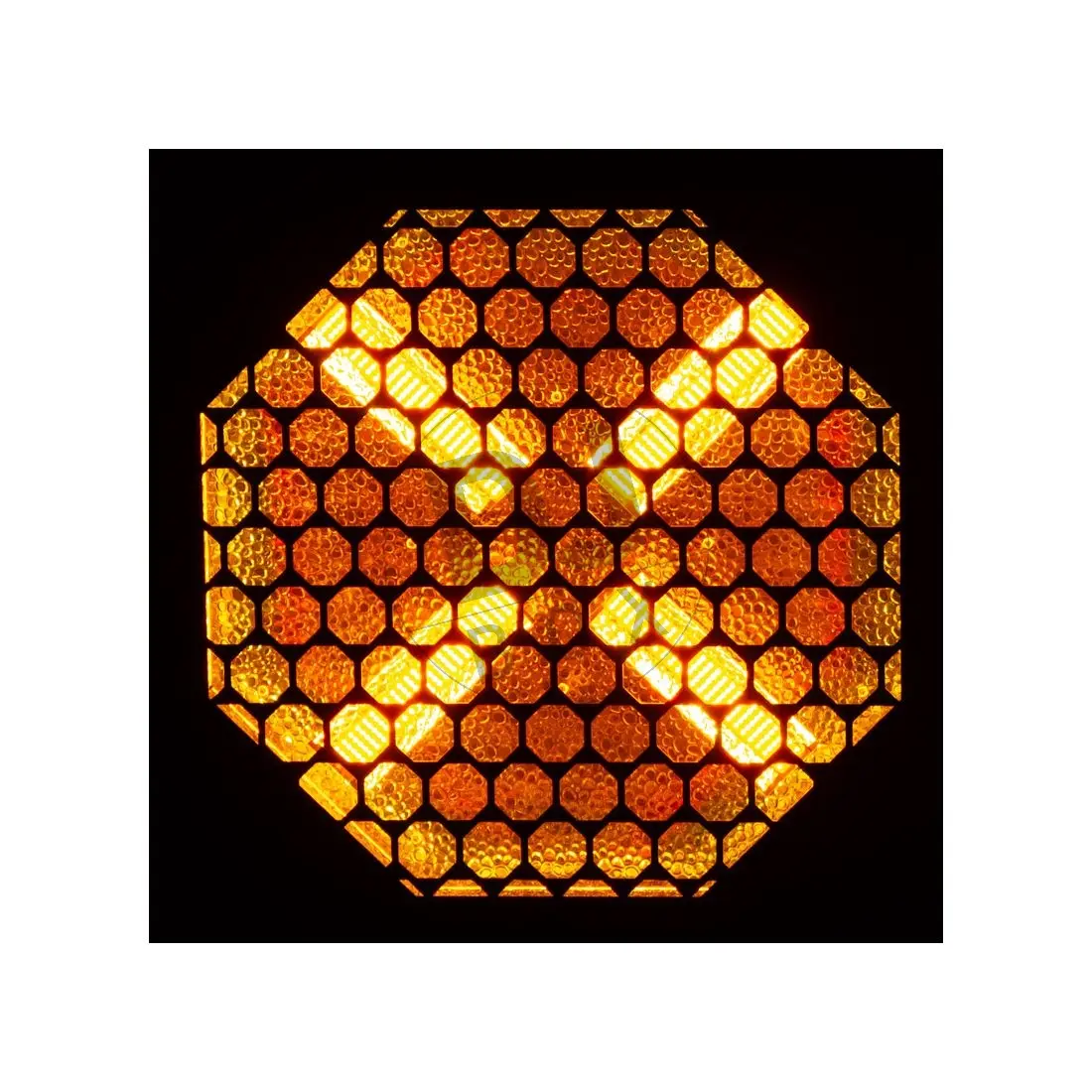

  • 4 × 60 W amber LEDs at 2000 K for that classic, warm blinder glow.

• RGB Background LEDs:

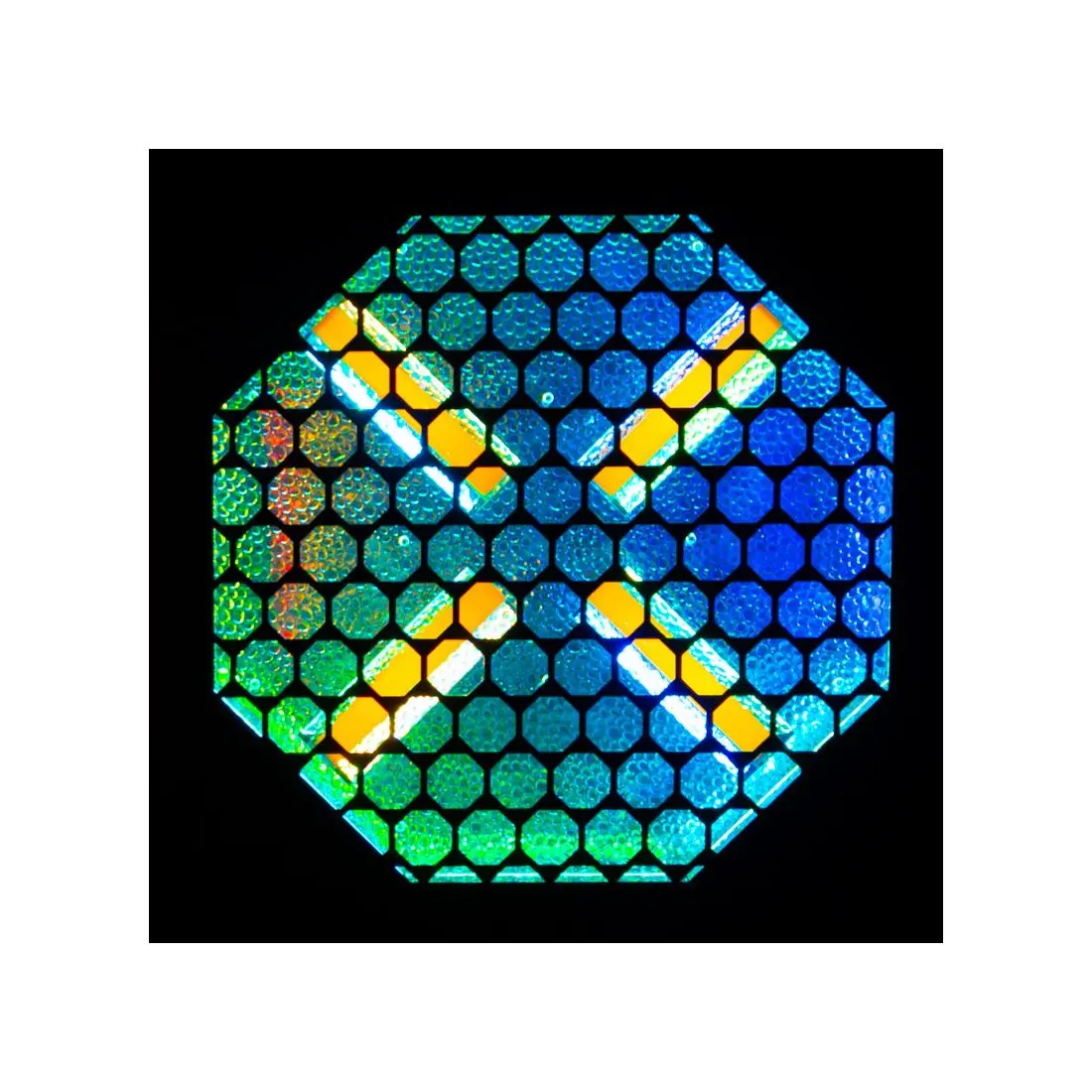

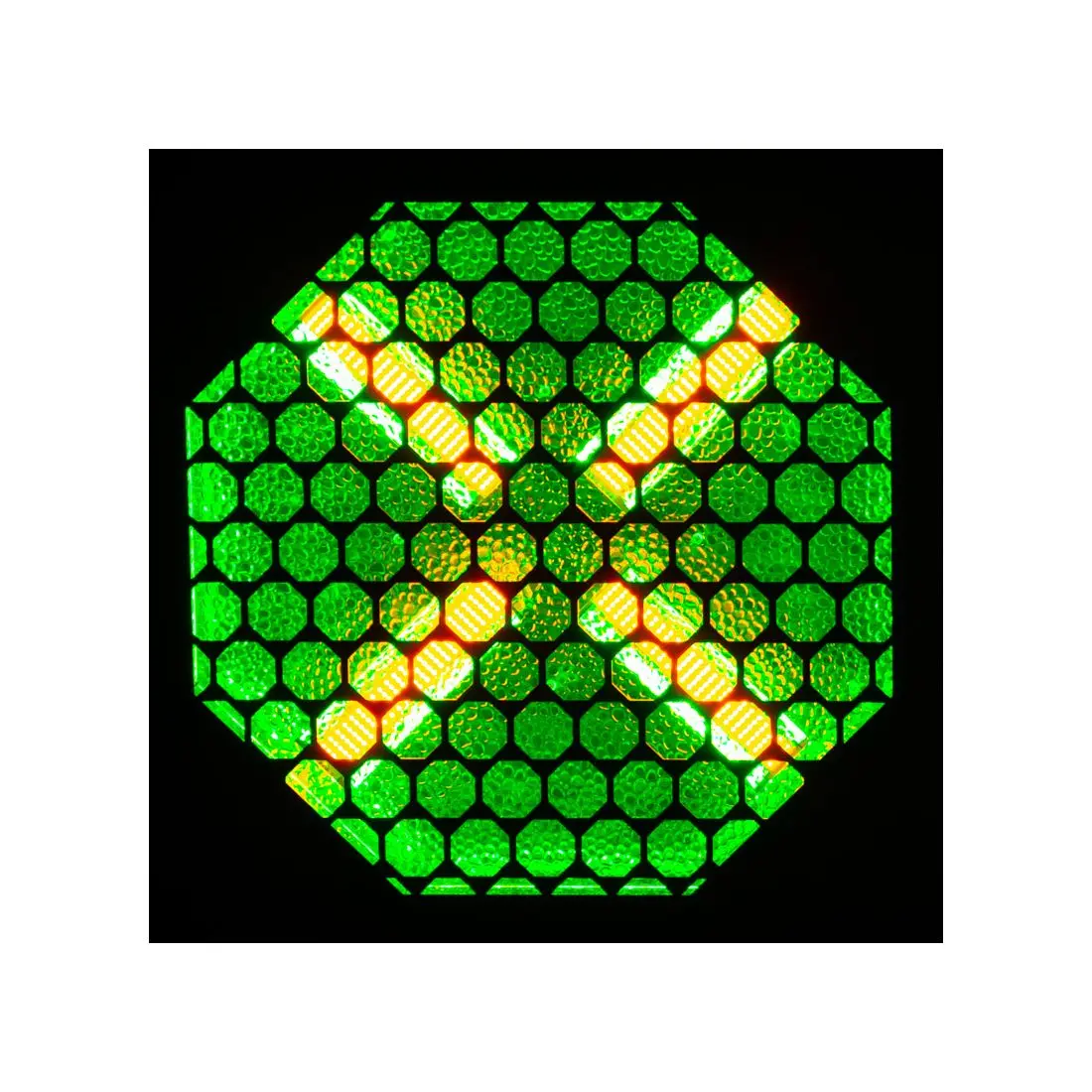

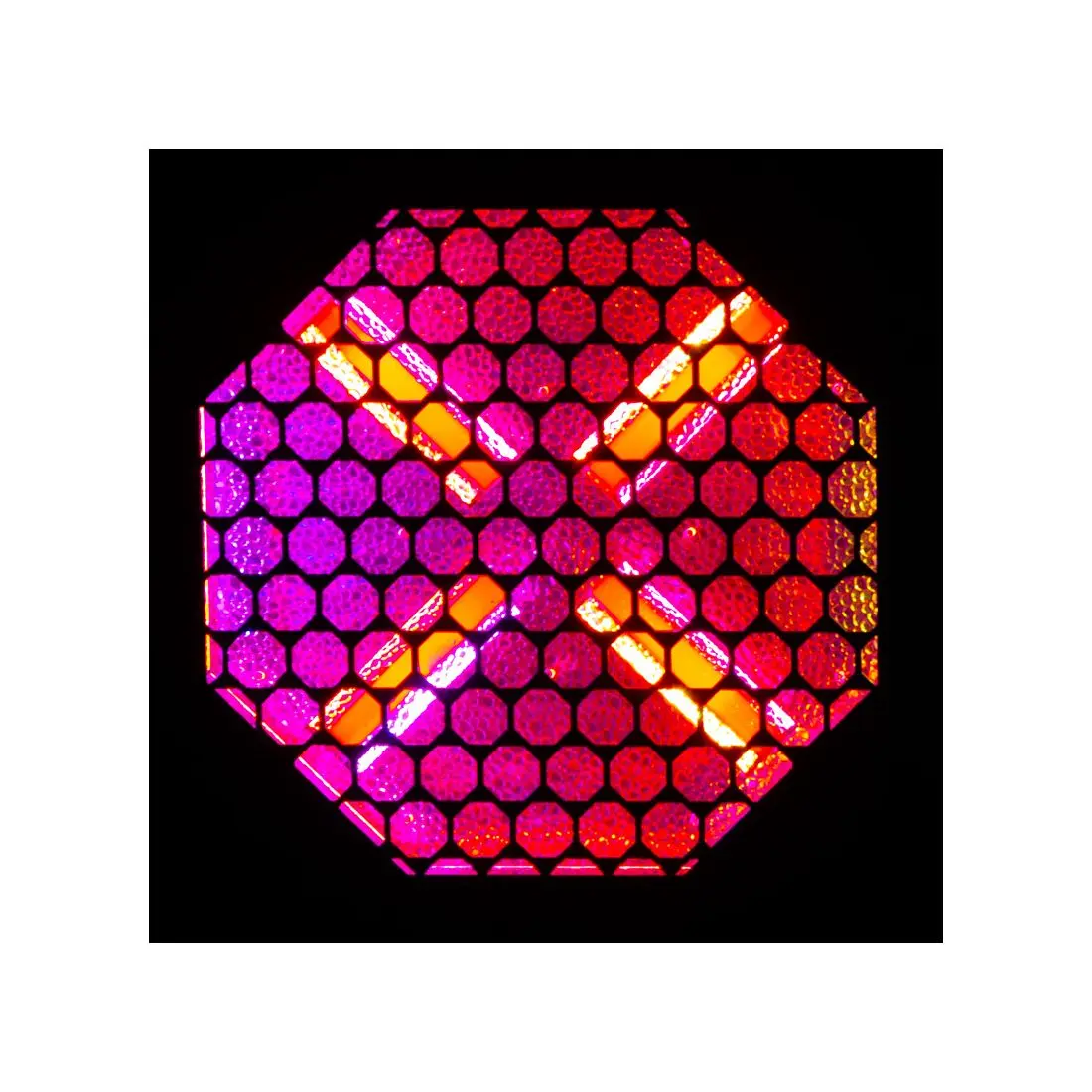

  • 64 × 3 W full-color LEDs, customizable across the spectrum and capable of mixing whites from approximately 2700 K to 10 000 K.

• Output & Coverage:

  • About 220 lux with 7000–8000 lumens. Beam angle ≈ 140°, field angle ≈ 150°.

---

2. Durability & Build

• Lifespan:

  • Rated at around 50,000 operating hours, though actual longevity depends on usage and environment.

• Housing & Safety:

  • Rugged metal body, IP20-rated (indoor use), equipped with a safety eyelet.

• Rigging:

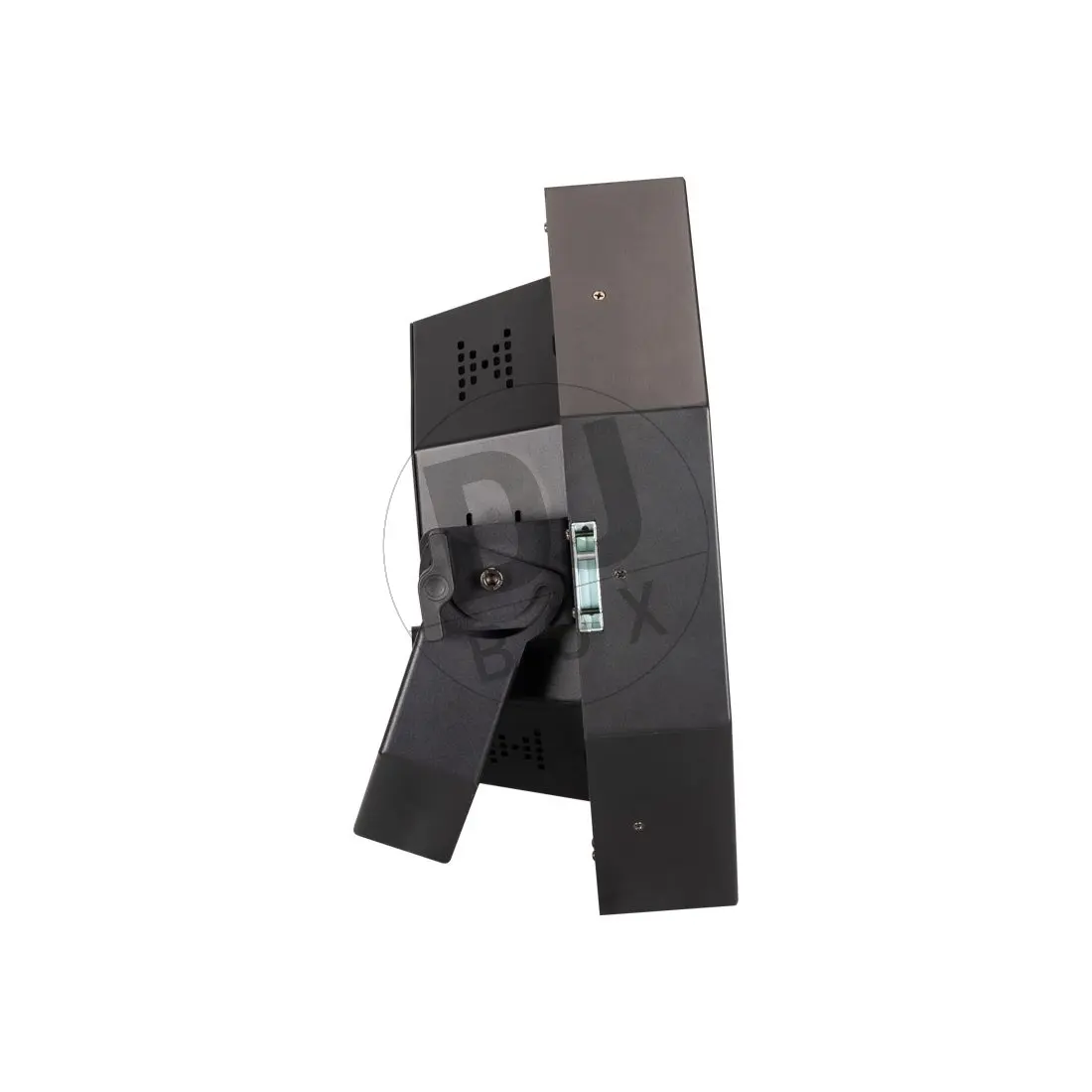

  • Features an adjustable hanging bracket, coffin-lock system to interlock up to eight units, and prepared for omega clamps (sold separately).

---

3. Control & Effects

• Control Interfaces:

  • DMX512, Aria X2 wireless DMX, Bluetooth, RDM, and RDM Net compatibility.

• Modes & Settings:

  • Built-in programs for both amber and RGB sections; variable white temperature, six dim modes, four dim curves, electronic dimming and strobe (0.1–20 Hz); selectable LED refresh rates (900 Hz–25 kHz) to ensure flicker-free video capture.

• DMX Channel Options:

  • Multiple channel profiles available: e.g., 10, 16, 25, 42, 47, up to 218 as per ADJ site; some outlets reference nine modes (8, 13, 22, 39, 43, 196, 200, 208, 211).

• Onboard Control:

  • OLED display with manual operation via onboard interface; supports primary/secondary (master/slave) configuration.

---

4. Connections & Power

• DMX & Power:

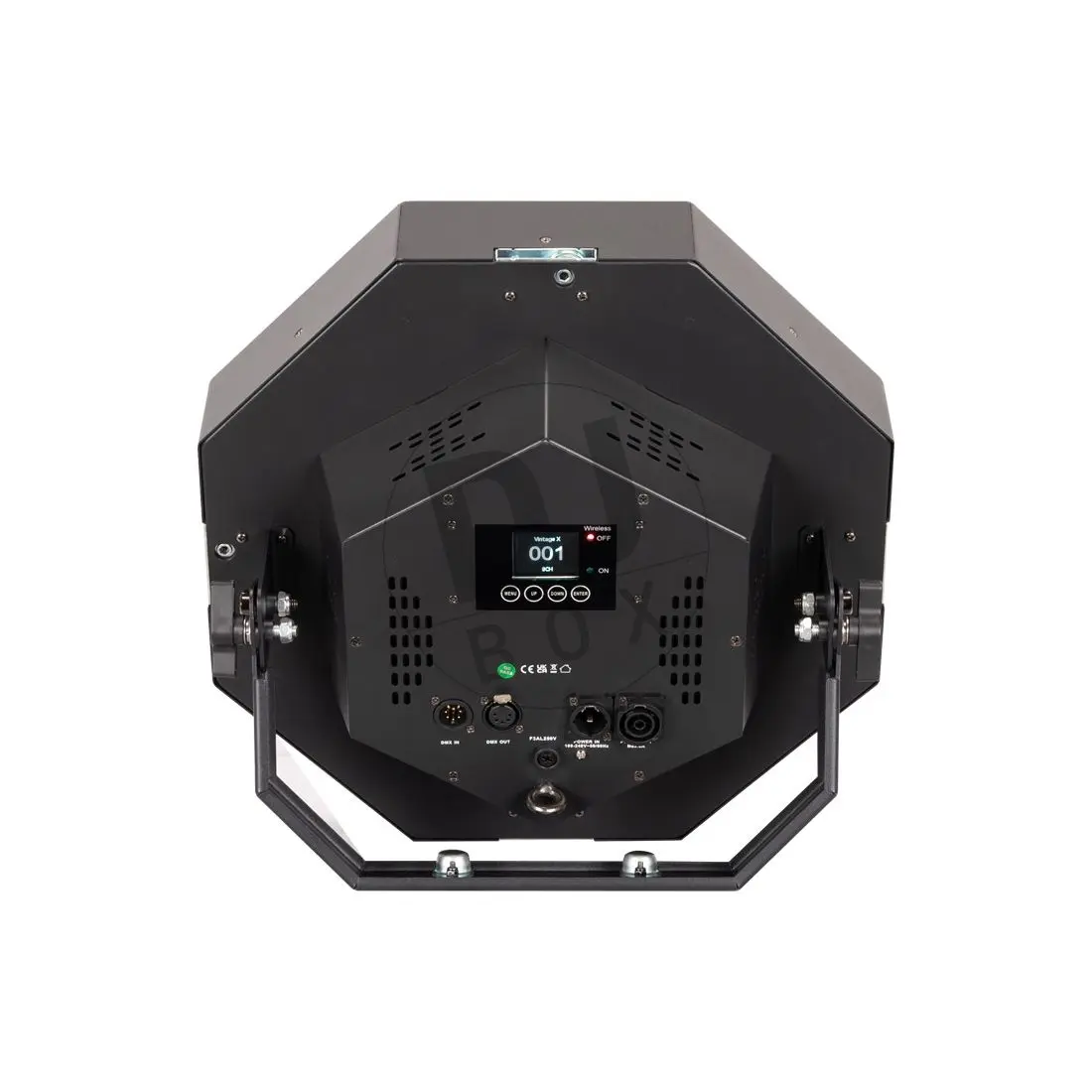

  • 5-pin XLR DMX In/Out. IP65-rated locking power In and Thru sockets.

• Power Specs:

  • Universal AC (100–240 V, 50–60 Hz), ~200 W consumption. Supports linking—2 units at 120 V, 4 units at 230 V.

---

5. Physical Dimensions & Thermal

• Size & Weight:

  • Approx. 15.7″ × 15.7″ × 7.6″ (398 mm × 398 mm × 194 mm), weighing about 18 lb (8.2 kg).

• Thermal Range:

  • Operational: –20 °C to +45 °C (–4 °F to +113 °F); Storage: –30 °C to +45 °C (–22 °F to +113 °F).

---

6. Certifications & Accessories

• Certs:

  • CE certified; cETLus, FCC certifications pending.

• Included:

  • One IP65 locking power cable.

• Optional:

  • 107 mm omega clamp for rigging.

---
