ADJ Jolt Panel FX

ADJ Jolt Panel FX

ADJ Jolt Panel FX

The ADJ Jolt Panel FX offers a powerful combination of RGB blinder and strobe effects with its upgraded features. Its smooth dimming and adjustable strobe speed create a unique display of colors and intensity levels, perfect for an exciting light show. With its lightweight design, it's easy to take the Jolt Panel FX to any event.

The ADJ Jolt Panel FX is a cutting-edge lighting product that is perfect for any event, from concerts to weddings to corporate gatherings. This lighting panel is versatile and dynamic, providing a range of lighting effects that are sure to impress your guests or audience.


The ADJ Jolt Panel FX features multiple pixel control options, allowing you to create unique lighting effects and patterns that will set your event apart from others. With RGBW color mixing and a narrow beam angle, this lighting panel is perfect for creating stunning aerial effects or spotlighting specific areas.


In addition to its dynamic lighting options, the ADJ Jolt Panel FX is also incredibly user-friendly. With an easy-to-navigate menu system and a compact, lightweight design, this lighting panel is easy to set up and transport from one event to the next.


Whether you're a professional lighting technician or just starting out, the ADJ Jolt Panel FX is an excellent choice for creating versatile and dynamic lighting effects that will make your event one to remember. So why wait? Place your order today and experience the power of ADJ Jolt Panel FX!

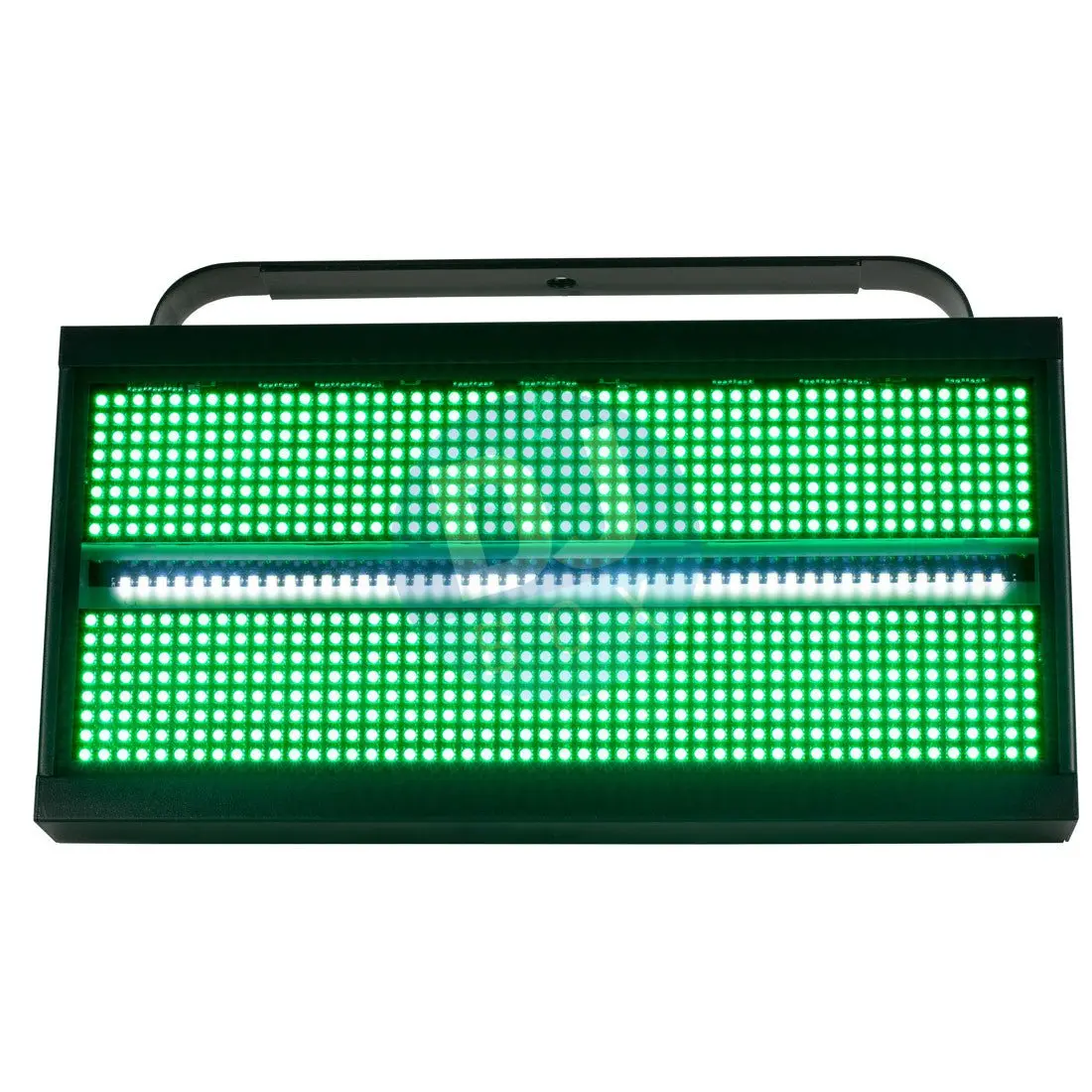

The ADJ Jolt Panel FX is an innovative multi-use strobe / eye candy fixture. It is equipped with 800 RGB SMD LED for color strobing and eye candy effects, and 48 white SMD LED located in the center of fixture to create the traditional look of a strobe. Zone chasing control provides an eye candy effect when used together with the white LEDs. The Jolt Panel FX’s massive light output is specifically designed for large stages, nightclubs, live events and touring.

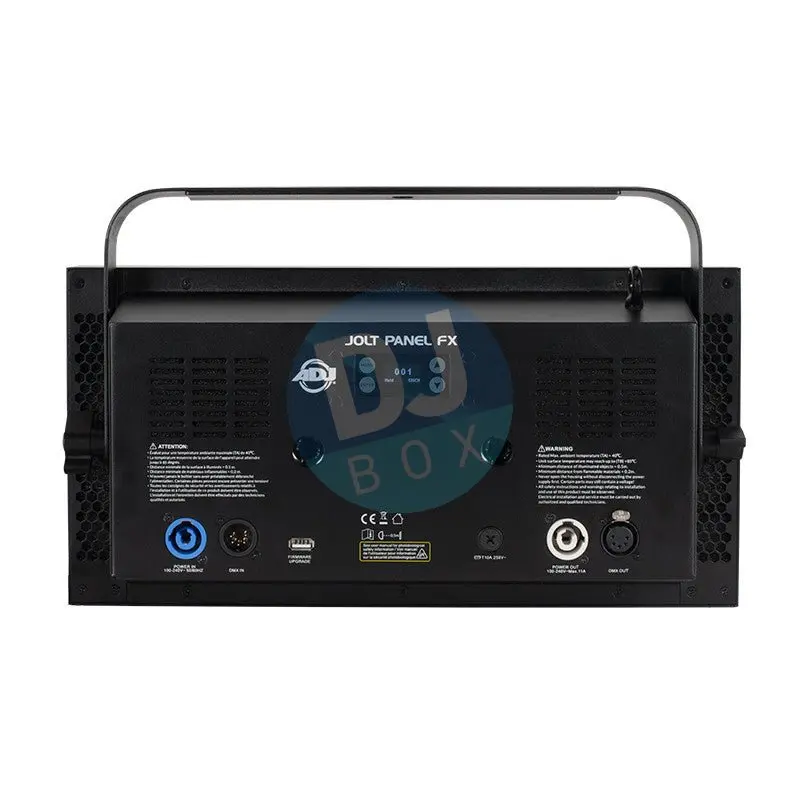

The rear panel has conveniently located connections 5-pin DMX in/out connections along with locking power in/out to daisy chain power. There is also a USB input that allows uses a fast and convenient way to update firmware. There are also hole to connect an omega bracket to the Jolt Panel FX.

The Jolt Panel FX offers users an easy way to navigate the built-in features from a LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, color macros, LED refresh rate, gamma settings and DMX channel modes.

A scissor yoke, and an omega bracket come with the fixture so the it can be attached to a clamp and hung on truss.

Versatile and Dynamic Lighting with ADJ Jolt Panel FX

Source:
• 800 RGB SMD LEDs + 48 Cool White SMD LEDs
• Lumen: 19.500 (full on)
• RGB LEDs: 121 Degree Beam Angle
• Cool White LEDs: 89 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6500-7000K
• 50,000 Hour Average LED Life
• CRI: 83

Features:
• 40 x RGB LED zones
• 6 x Cool White LED zones
• 25 built-in RGB LED Program Macros
• 9 built-in Cool White LED Program Macros

Control:
• Control Protocol: DMX
• 8 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81 126 and 141 channels
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• Dim Speed control (0.1~10 Seconds)
• 0-100% Smooth Dimming
• Strobe, shutter & pulse control
• Max Strobe Rate 25Hz. Min Strobe Rate: 0.35Hz.
• Adjustable LED Refresh Rates (900~25kHz)
• Display: LCD display with 4-button touch menu

Connections:
• Data: 5-pin DMX In/Out
• 180 degree mounting bracket system
• Ready for Omega Bracket (Sold Separately)
• Locking Power in/out

Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 330W (1.4A@230V~50Hz)

Dimensions / Weight:
• Length: 159mm
• Width: 405mm
• Height: 250mm
• Weight: 64kg
