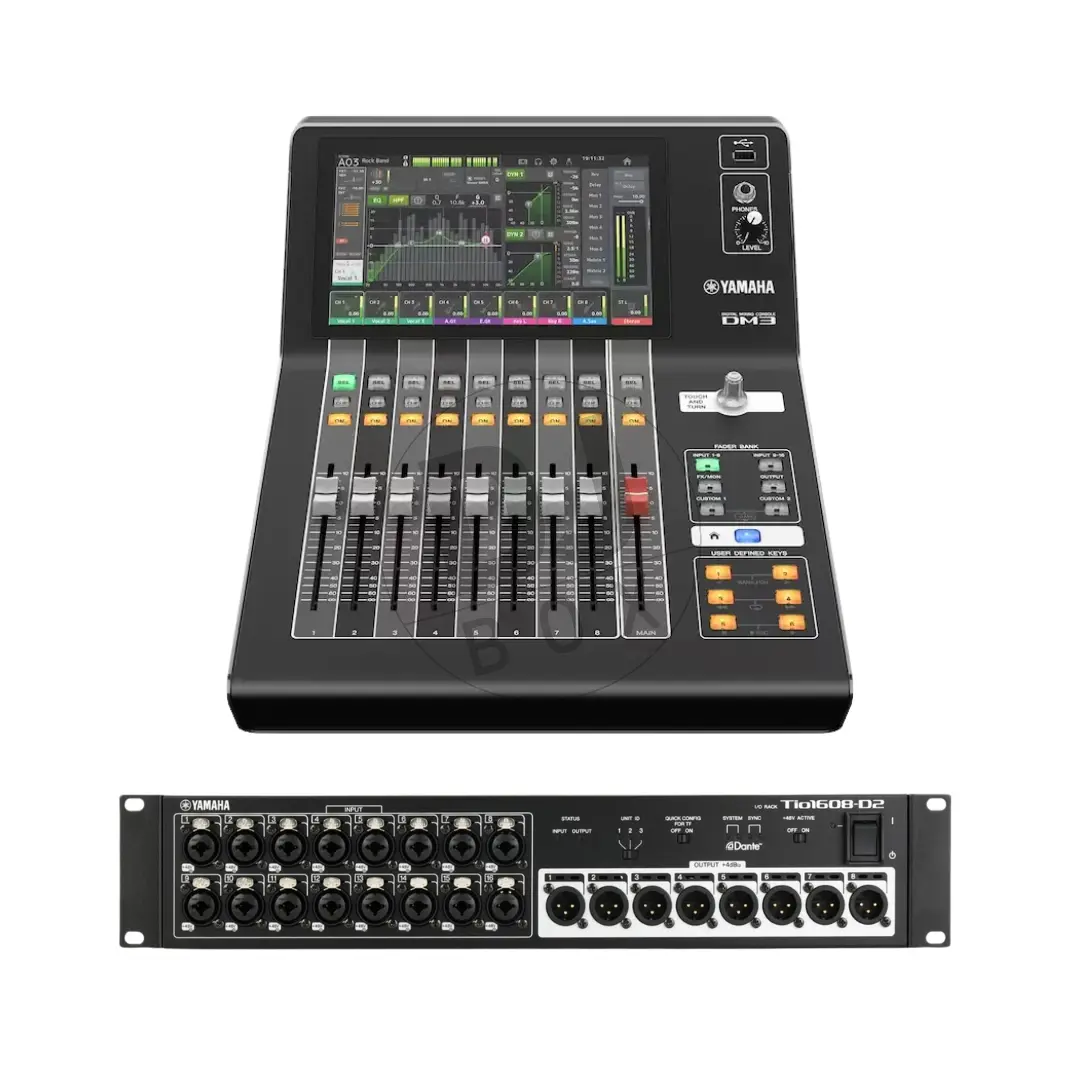

Yamaha DM3-D Digital Mixer + Tio1608-D2 Stagebox Bundle
Yamaha DM3-D Digital Mixer + Tio1608-D2 Stagebox Bundle
Take full control of your live sound, installation, or touring setup with this complete Yamaha Dante digital mixing system bundle, combining the powerful DM3-D digital mixer with the versatile Tio1608-D2 stagebox - get this system package from DJBox.ie -Yamaha DM3-D Digital Mixer + Tio1608Β
Designed for professional audio engineers, venues, and production companies, this bundle delivers high-resolution audio, ultra-low latency networking, and seamless Dante integrationβall in a compact and highly portable system.
Why Choose This Bundle?
- Complete Dante Ecosystem β Seamless integration between mixer and stagebox
- Plug & Play Setup β Automatic configuration via Yamaha AUTO SETUP
- Ultra-Low Latency Audio β High-performance Dante networking
- Remote I/O Control β Control stagebox preamps directly from the mixer
- Compact & Touring Ready β Ideal for live sound, installs, and broadcast
- Scalable System β Expand with additional Dante-compatible devices
This bundle eliminates the need for bulky analogue snakes by using a single CAT5e cable for audio and control, dramatically simplifying setup and improving reliability.
Yamaha DM3-D Digital Mixer Overview
The Yamaha DM3-D is a compact, professional Dante-enabled digital mixer offering powerful processing, flexible routing, and intuitive control.
Key Features
- 16 mono + 1 stereo input channels
- 96kHz / 48kHz audio processing
- Built-in Dante (16x16 channels)
- 6 mix buses + 2 FX + 2 matrix outputs
- 9 motorised faders with touch & control workflow
- USB multitrack recording (18 channels)
- DAW control compatibility (Cubase, Nuendo, etc.)
- AUTO SETUP for fast system configuration
Perfect for live sound, streaming, corporate AV, and studio applications.
Yamaha DM3-D Specifications
| Specification | Details |
|---|---|
| Mixing Capacity | 16 mono + 1 stereo |
| Sample Rates | 48kHz / 96kHz |
| Dante Channels | 16 in / 16 out |
| Inputs | 16 mic/line (XLR, 4 combo) |
| Outputs | 8 XLR (OMNI OUT) |
| Mix Buses | 6 mix + 2 FX + 2 matrix |
| USB Audio | 18-in / 18-out |
| Control | DAW + remote apps |
| Dimensions | 320 x 140 x 455 mm |
| Weight | 6.5 kg |
Yamaha Tio1608-D2 Dante Stagebox Overview
The Yamaha Tio1608-D2 is a high-performance Dante stagebox, designed to expand your system with remote-controlled inputs and outputs.
Key Features
- 16 mic/line inputs + 8 line outputs
- Dante networking with dual ports (Primary/Secondary)
- Remote gain control from DM3-D
- Recallable D-PRE mic preamps for natural sound
- Supports up to 96kHz audio
- Quick configuration with AUTO SETUP
- Daisy-chain via CAT5e for flexible setups
Ideal for stage use, FOH expansion, installations, and touring rigs.
Yamaha Tio1608-D2 Specifications
| Specification | Details |
|---|---|
| Inputs | 16 x combo XLR/TRS |
| Outputs | 8 x XLR |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Gain Range | -6 dB to +66 dB |
| Max Input Level | +30 dBu |
| Max Output Level | +24 dBu |
| Networking | Dante (Primary + Secondary) |
| Latency | <1.3 ms (typical) |
| Rack Size | 2U |
| Connectivity | CAT5e Ethernet |
Perfect System Integration
When paired together, the DM3-D and Tio1608-D2 create a powerful, flexible digital audio system:
- Control all stage inputs remotely from FOH
- Reduce cabling complexity with Dante networking
- Maintain pristine audio quality over long distances
- Expand your system effortlessly
The DM3 can connect directly to a single Tio1608-D2 for a streamlined and efficient live sound workflow.
Ideal For
- Live sound engineers
- Touring productions
- Venues & theatres
- Houses of worship
- Corporate AV setups
- Broadcast & streaming
Whatβs Included
- Yamaha DM3-D Digital Mixer
- Yamaha Tio1608-D2 Dante Stagebox
- Power cables
- User documentation
Original: $3,951.78
-65%$3,951.78
$1,383.12
