Showtec Phantom 3R Hybrid
Elevate Your Lighting Game with Showtec Phantom 3R Hybrid
- 140 W Moving Head for both Spot, Wash and Beam effects
- Motorised zoom, focus and frost
- 6-facet linear & 8-facet circular overlapping prisms
- Motorised zoom
- 12 colours + white
The Showtec Phantom 3R Hybrid is an all-in-one true Hybrid Moving Head that can easily change from Spot to Wash to Beam, suitable for indoor venues. Its intense 140 watt Osram 3R discharge light engine and motorised focus with auto focus function creates razor sharp beams and gobos at almost any distance. The overlapping circular and linear rotating prisms can be independently controlled and create dynamic beam effects. The Phantom 3R Hybrid operates within a 3° - 20° motorised zoom range in both Spot, Wash and Beam modus for ultimate light control.
Specifications
Source
| Light Source Type | Discharge |
|---|---|
| Light Source Quantity | 1 |
| Light Source Power | 140 |
| Life Expectancy | 6000 |
| Luminous Flux (Total) | 4707 |
| CRI | 70 |
| CCT | 9200 |
| Source Warm-up Time | 3 |
| Source Hot Restart Time | 5 |
Optical
| Beam Angle Minimum (Circular) | 3 |
|---|---|
| Beam Angle Max. (Circular) | 20 |
| Zoom Type | Motorised |
| Zoom Minimum | 3 |
| Zoom Maximum | 20 |
| Frost | Yes |
| Focus | Motorised |
Control and Programming
| Control Mode | Auto, DMX, Manual, Master Slave, Sound |
|---|---|
| DMX Channels | 14, 19 |
| Protocols | DMX |
| Wireless | Optional |
| Display | LCD |
Dynamic Effects
| Dimmer | 0-100 % |
|---|---|
| Strobe | 0-20 Hz |
| Shutter | Yes |
| Prism 1 | 8-facet Circulair |
| Prism 2 | 6-facet Linear |
| Prism Overlay | Yes |
| Prism Index & Rotate | No |
| Colour System | Colour Wheel |
| Dichroic Colour Wheel 1 | 12 |
| Gobo System | Glass + Metal |
| Gobo Wheel Index & Rotate | Yes |

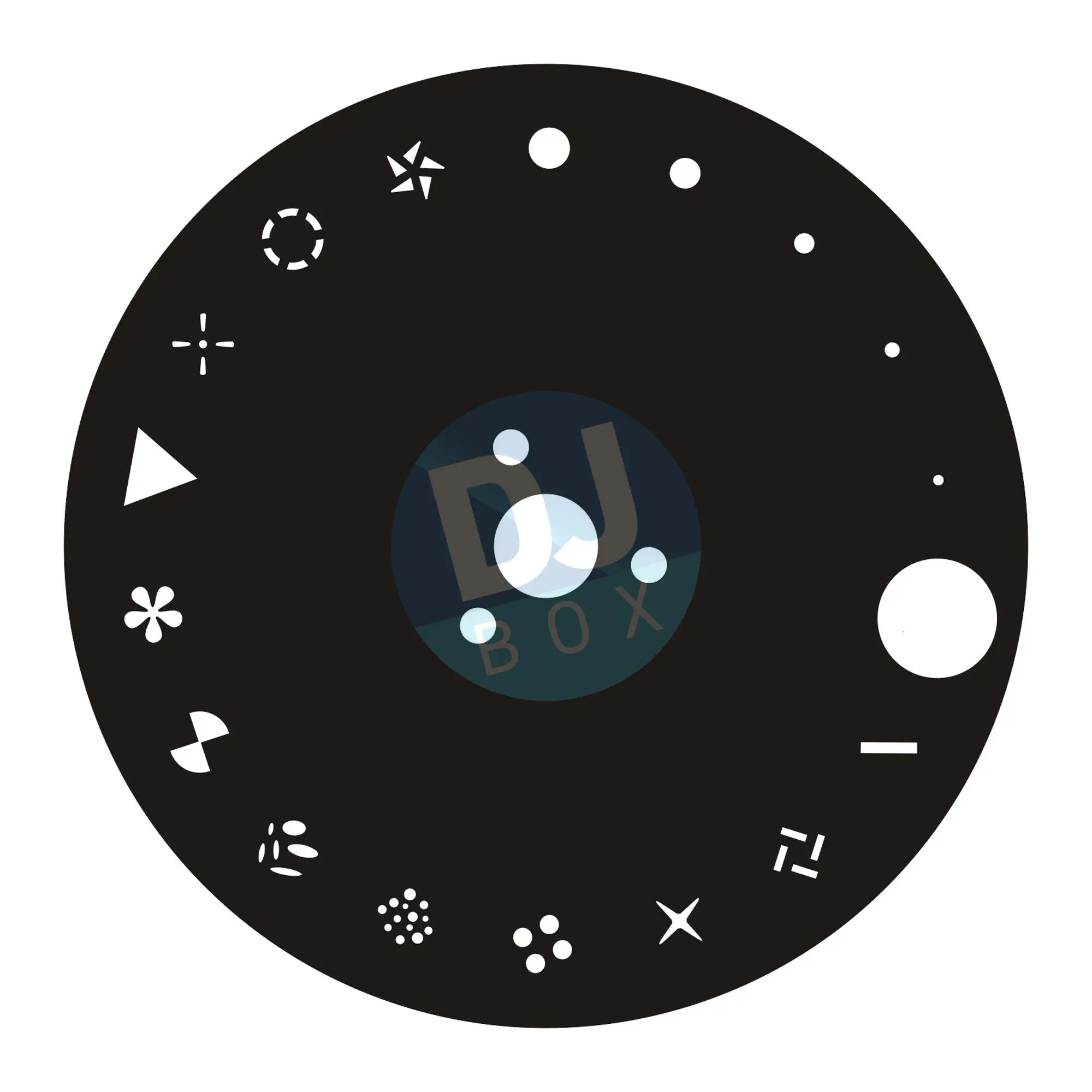

| Gobo Wheel 1 | 16 |

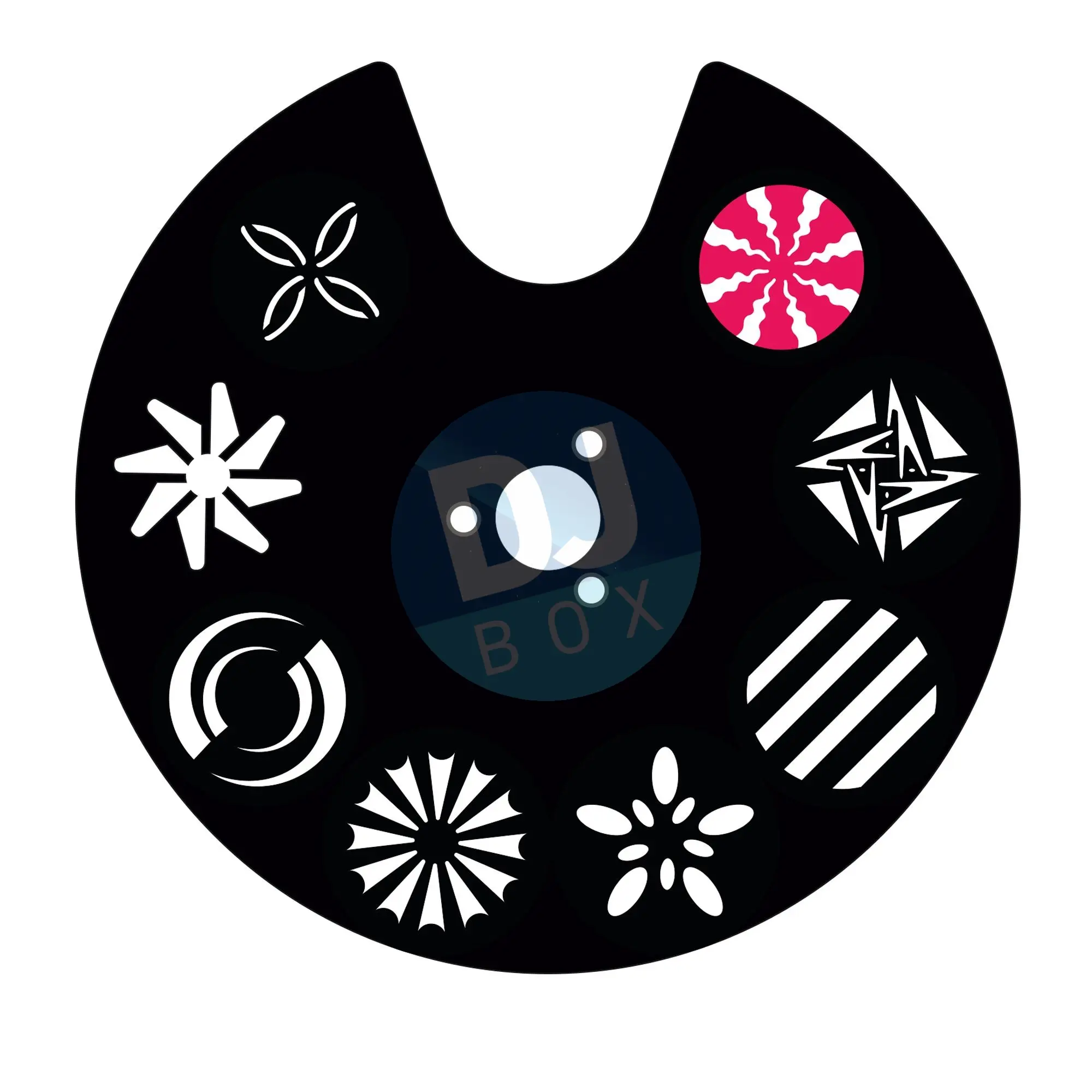

| Gobo Wheel 2 | 8 |
| Gobo Size | 13.75 |
| Image Diameter | 11.75 |
Movement
| Pan | 540 |
|---|---|
| Tilt | 260 |
| Pan/Tilt Resolution | 16-bit |
Electrical Specifications and Connections
| Power Supply | 100-240 V AC 50/60 Hz |
|---|---|
| Power Consumption | 270 |
| Fuse | 5 |

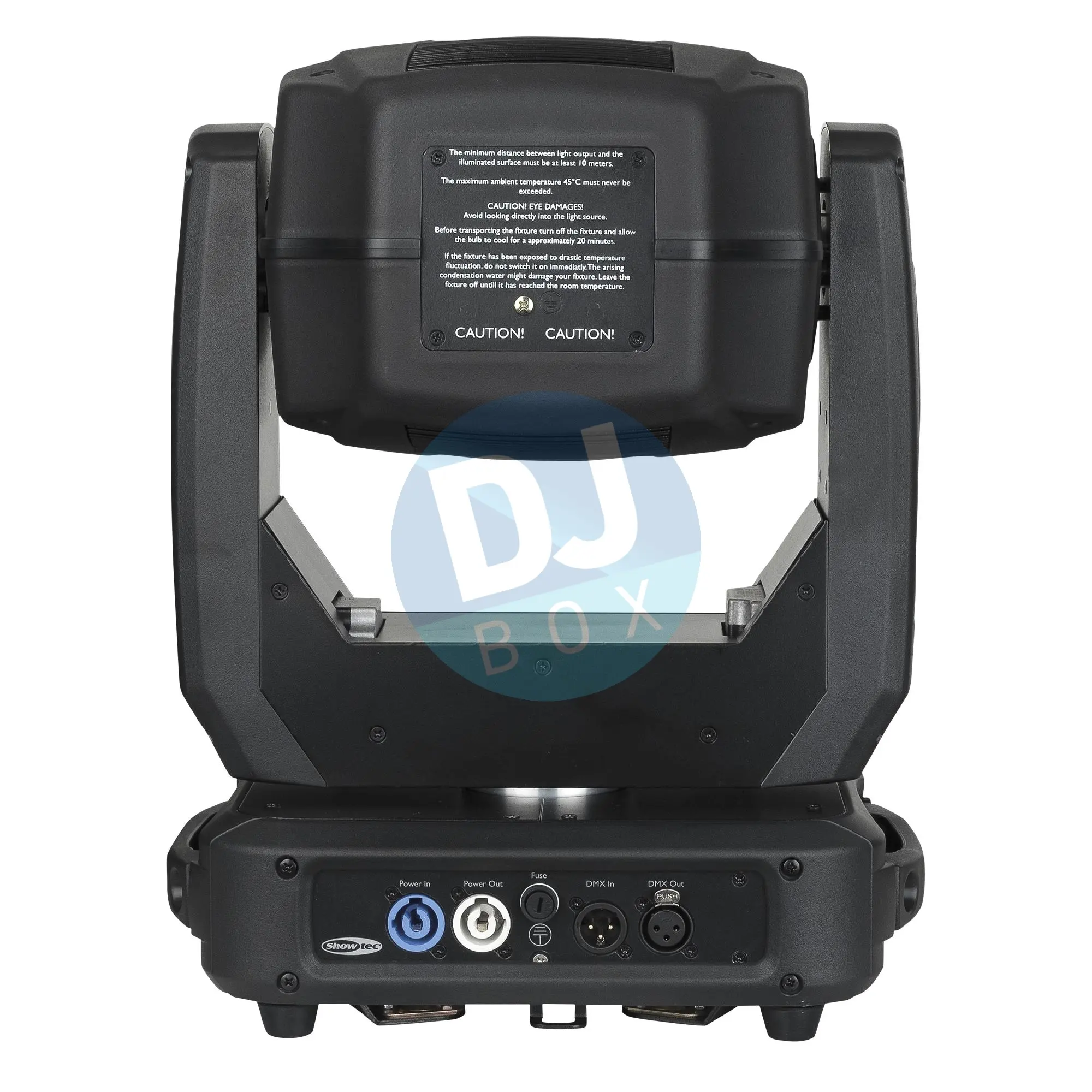

| Power Connector In | Power Pro Blue |
| Power Connector Out | Power Pro Grey |
| DMX Connector | XLR 3P In/Out |
| DMX Connector In | XLR 3P |
| DMX Connector Out | XLR 3P |
Mechanical Specifications
| Length (mm) | 325 |
|---|---|
| Width (mm) | 210 |
| Height (mm) | 505 |
| Weight | 16.7 |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal, Plastic |
| Colour | Black |
Product Properties
| Cooling | Axial fan |
|---|
Rigging
| Mounting Options | Quick-Lock |
|---|---|
| Safety Attachment | Yes |
Thermal Specifications
| Maximum Ambient Temperature | 40 |
|---|---|
| Maximum Surface Temperature | 70 |
| Minimum Distance to Objects | 10 |
Included Items
| Included Cables | powerCON cable |
|---|---|
| Included Rigging | Quick-Lock Bracket |
Enter the world of advanced lighting with Showtec Phantom 3R Hybrid. A leading Moving Head device, the Phantom 3R Hybrid’s functionalities are impressive and packed with a wide range of features. It's not only dependable, but also provides an extraordinary visual effect guaranteed to leave your audience in awe.
Crafted by Showtec, a trusted name in professional lighting equipment, the Phantom 3R Hybrid promises quality and durability. Whether you are an event planner looking to spice up your parties or a production manager in need of good stage lighting, this product is an excellent choice because it meets a wide array of lighting needs.
The Phantom 3R Hybrid features a powerful light source and a captivating prism effect. The result is a myriad of vibrant colors and patterns that can transform any space into a mesmerizing spectacle. The beam, spot, and wash features are flawless, delivering high-quality lighting effects that can elevate any event. So, choose Showtec Phantom 3R Hybrid, and let the light do the magic.
Original: $2,012.56
-65%$2,012.56
$704.40
