RCF Evox J9
RCF Evox J9 Active Three-Way Portable Column PA System
The RCF Evox J9 is a powerful, active three-way portable column PA system engineered for professional performers, bands, DJs, and events needing exceptional clarity, high output, and effortless portability. Featuring a 12-inch high-power woofer, an array of six 3-inch neodymium full-range drivers, and a 1.75-inch neodymium compression driver with True Resistive Waveguide, the RCF Evox J9 delivers uniform 120° x 40° coverage and impressive 130 dB max SPL from its compact, road-ready design.
Key Features
- 2100W peak Class-D amplifier with built-in DSP processing
- 130 dB maximum SPL for high-impact sound
- True three-way configuration: 12" woofer + 6 × 3" full-range + 1.75" compression driver
- FiRPHASE technology for phase-coherent, transparent audio
- Bass Motion Control for extended low-end without distortion
- 120° x 40° True Resistive Waveguide for resonant-free, even dispersion
- Three EQ presets: Linear/Live, Club, Voice
- Balanced combo XLR/jack inputs and XLR output
- Quick-fit aluminum pole (full-length included) for adjustable height
- Lightweight composite cabinet with padded column bag
- Convection-cooled, fanless design for silent operation
- Available in black or white finish
RCF Evox J9: Premium Portable Power for Professional Audio
The RCF Evox J9 combines Italian engineering excellence with practical portability, making it an ideal choice for live performances, corporate events, weddings, conferences, and mobile entertainment. Powered by a robust 2100W Class-D amplifier, the RCF Evox J9 achieves 130 dB max SPL while maintaining crystal-clear sound across its 40 Hz – 20 kHz frequency range. The three-way design ensures articulate mids and highs from the six neodymium full-range transducers and 1.75-inch compression driver, paired with deep, controlled bass from the 12-inch woofer in a bass-reflex enclosure.
Advanced DSP technologies like FiRPHASE deliver zero-phase distortion for precise imaging and natural transients, while Bass Motion Control extends low-frequency response without risking woofer overexcursion. The RCF Evox J9 offers three user-selectable presets (Linear/Live for neutral response, Club for enhanced punch, Voice for speech clarity), allowing quick adaptation to any venue or application. Its True Resistive Waveguide provides wide 120° horizontal and 40° vertical coverage, ensuring consistent sound quality throughout the audience area with minimal reflections.
Setup is fast and intuitive: the lightweight aluminum pole assembles quickly (with optional extensions for varied heights), and the composite cabinet includes a quick-fit socket and top handle for easy transport. The fanless convection cooling keeps operation silent, perfect for quiet environments. Balanced inputs support microphones or line-level sources, with XLR output for daisy-chaining or subwoofer integration (via ACE presets for optimized pairing). Complete with a padded carrying bag for the column array, the RCF Evox J9 offers professional-grade performance in a streamlined, durable package—delivering reliable, high-fidelity audio wherever your event takes you. (≈280 words)
Specifications
| Specification | Details |
|---|---|
| Brand | RCF |
| Model | Evox J9 |
| System Type | Active three-way portable column PA |
| Amplifier Power | 2100 W Peak (700 W HF + 1400 W LF) |
| Max SPL @ 1m | 130 dB |
| Frequency Response | 40 Hz – 20,000 Hz |
| Coverage Angle | 120° Horizontal × 40° Vertical |
| Compression Driver | 1 × 1.75" neodymium (1.75" voice coil) |
| Full-Range Drivers | 6 × 3" neodymium (1" voice coil) |
| Woofer | 1 × 12" (2.5" voice coil) |
| DSP / Processing | FiRPHASE, Bass Motion Control, Soft Limiter |
| Presets | Linear/Live, Club, Voice |
| Inputs | 1 × Combo XLR/jack (balanced/unbalanced) |
| Outputs | 1 × XLR |
| Cabinet Material | PP Composite |
| Pole Mount | Quick-fit socket (aluminum pole included) |
| Dimensions (H × W × D) | 2080.1 × 350 × 462.6 mm (81.89 × 13.78 × 18.21 in) |
| Weight | 28.3 kg (62.39 lbs) |
| Power Supply | 100–240V AC (switch-mode) |
| Cooling | Convection (fanless) |
| Included Accessories | Padded column bag, full-length aluminum pole |
| Applications | Live bands, DJs, events, presentations, installations |
Description
RCF Evox J9 Active Three-Way Portable Column PA System
The RCF Evox J9 is a powerful, active three-way portable column PA system engineered for professional performers, bands, DJs, and events needing exceptional clarity, high output, and effortless portability. Featuring a 12-inch high-power woofer, an array of six 3-inch neodymium full-range drivers, and a 1.75-inch neodymium compression driver with True Resistive Waveguide, the RCF Evox J9 delivers uniform 120° x 40° coverage and impressive 130 dB max SPL from its compact, road-ready design.
Key Features
- 2100W peak Class-D amplifier with built-in DSP processing
- 130 dB maximum SPL for high-impact sound
- True three-way configuration: 12" woofer + 6 × 3" full-range + 1.75" compression driver
- FiRPHASE technology for phase-coherent, transparent audio
- Bass Motion Control for extended low-end without distortion
- 120° x 40° True Resistive Waveguide for resonant-free, even dispersion
- Three EQ presets: Linear/Live, Club, Voice
- Balanced combo XLR/jack inputs and XLR output
- Quick-fit aluminum pole (full-length included) for adjustable height
- Lightweight composite cabinet with padded column bag
- Convection-cooled, fanless design for silent operation

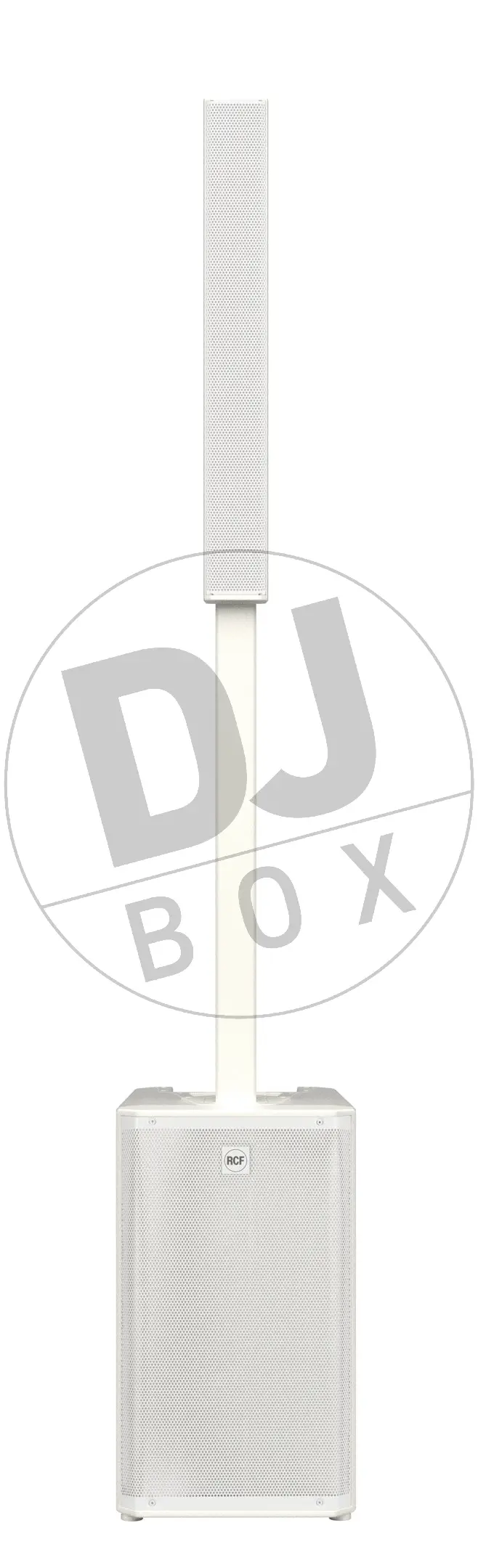

- Available in black or white finish
