RCF Evox J8

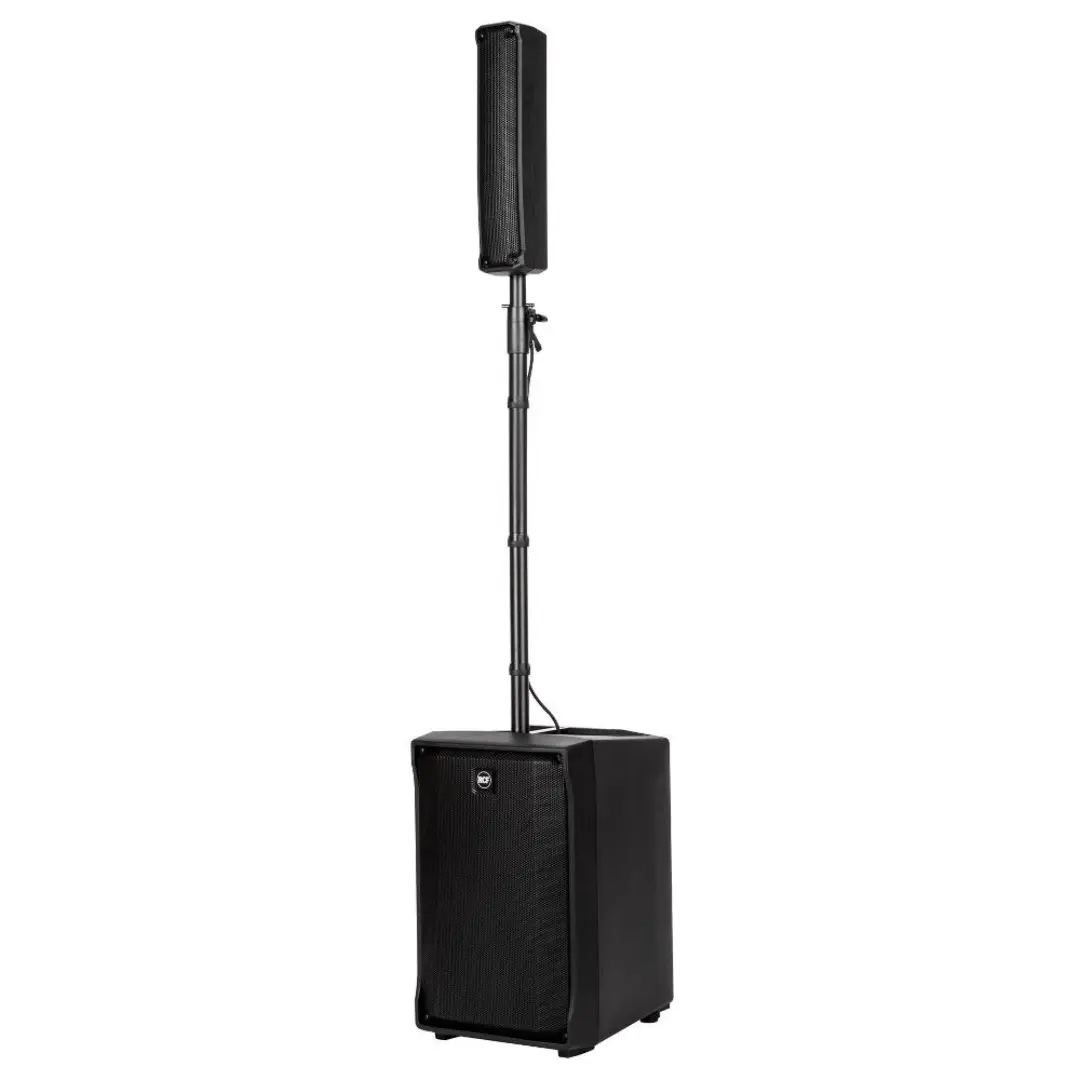

RCF Evox J8 Active Two-Way Portable Array
The RCF Evox J8 integrates a line source satellite module equipped with eight 2” full-range drivers, seamlessly paired with a robust 12” woofer housed in a bass reflex enclosure. Powered by a 1400 W Class D amplifier, this system delivers exceptional audio fidelity. The EVOX J Series, including the RCF Evox J8, retains the compact footprint of its predecessors while utilizing a lightweight composite enclosure. It produces remarkable sound quality, offering crystal-clear vocal reproduction and dynamic musical response, ideal for various performance settings.
- Max SPL: 128 dB
- Power: 1400 Watt 2-way peak
- Processing: DSP with FiRPHASE
- Woofer: 12", 2.5" voice coil
- Full-Range Drivers: 8 x 2" with 1.0" voice coil
- Dimensions: 2350 x 350 x 450 mm (92.5 x 13.77 x 17.71 in, HxWxD)
- Weight: 23.8 kg (52.5 lbs)
- Model - RCF Evox J8
Powerful Class D Amplifier
RCF’s Class D amplifier technology in the RCF Evox J8 ensures high efficiency and lightweight design, delivering rapid attack and authentic transient response. The amplifier’s sturdy aluminum structure enhances stability during transport and supports fan-less heat dissipation. With an SMPS power supply, the RCF Evox J8 maximizes output while keeping transportation weight minimal, making it a practical choice for mobile audio solutions.
Superior Transducers
High Frequencies: The ultra-compact 2” RCF drivers handle high SPL with outstanding clarity, enhancing the RCF Evox J8’s ability to reproduce vocals and intricate audio details vividly.

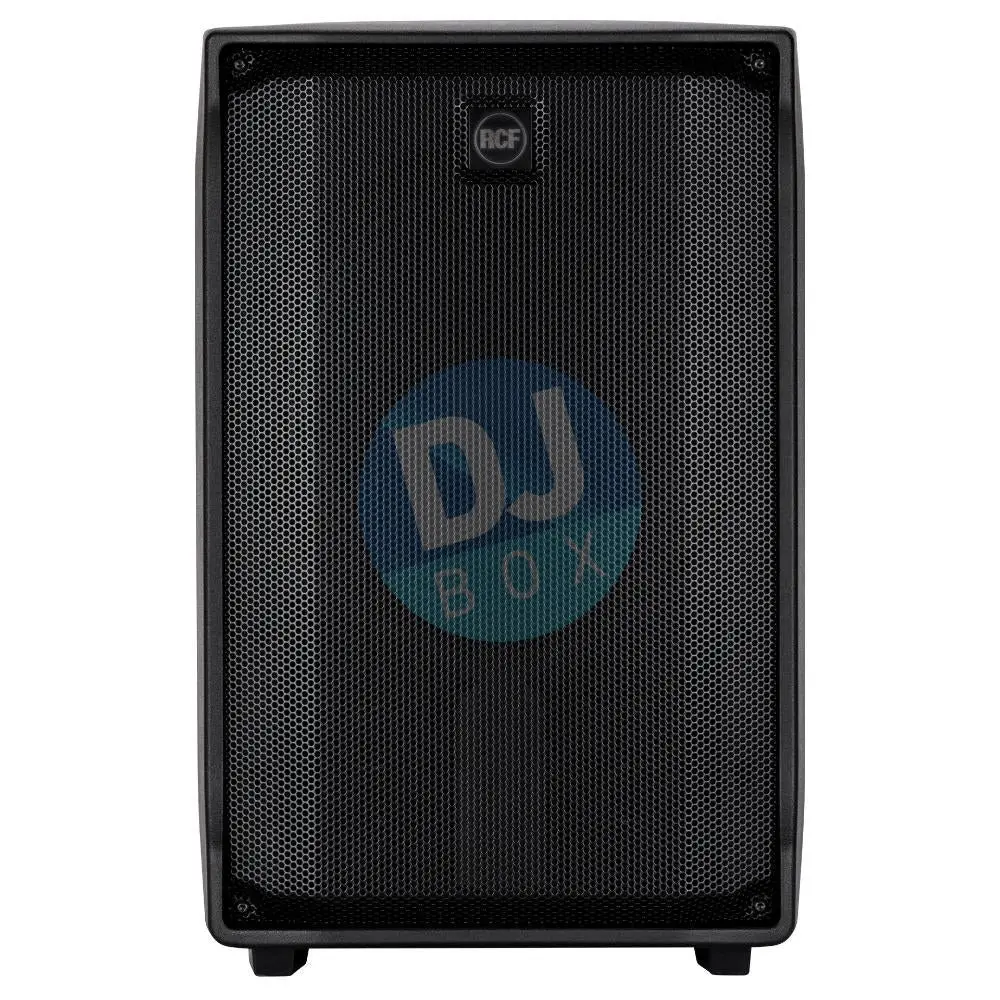

Low Frequencies: The 12” high-excursion woofer extends to deep frequencies, delivering precise and powerful bass. The bass-reflex port minimizes air turbulence, reducing distortion. With a 120°x30° (HxV) constant directivity pattern, the RCF Evox J8 ensures consistent sound coverage across venues, from front to back.
Ready to Play in a Few Simple Steps
Portability: The RCF Evox J8 features a top handle on the woofer cabinet and an integrated trolley within the optional speaker cover for easy transport. The metal pole securely attaches to the trolley, streamlining setup and mobility.
Mounting: Assemble the system by screwing the pole into the subwoofer’s pole mount, inserting the top column, and connecting the SpeakOn cable. An adjustable fastener ensures the pole length suits various setups, making the RCF Evox J8 ready for performance in minutes.
Play! The system’s quick setup ensures your audio is performance-ready with minimal effort, perfect for events requiring rapid deployment.
J System Configurations
From solo acts to large DJ events, the RCF Evox J8 offers versatile configurations. Its multiple outputs and FiRPHASE processing with 0° phase response ensure an optimal listening experience in any venue. Explore standard setups to maximize the system’s flexibility for different performance needs.
New Perspective on Linearity
RCF’s proprietary FiR filtering technology, integrated into the RCF Evox J8, delivers transparent sound, absolute clarity, and precise stereo imaging. The FiRPHASE filters maintain coherent sound distribution without phase distortion, minimizing system latency for an immersive listening experience.
Details
Learn more via RCF.
Specifications
| Specification | Details |
|---|---|
| Max SPL | 128 dB |
| Power | 1400 W Peak, 700 W RMS (Total); 400 W Peak, 200 W RMS (High); 1000 W Peak, 500 W RMS (Low) |
| Frequency Response | 40 Hz – 20,000 Hz |
| Coverage Angle | 120° (Horizontal) x 30° (Vertical) |
| Transducers | 8 x 2.0" Full-range (1.0" voice coil), 1 x 12" Woofer (2.5" voice coil) |
| Input/Output Connectors | XLR, Jack (Input); XLR (Output) |
| Input Sensitivity | -2 dBu / +4 dBu |
| Crossover Frequency | 220 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Volume, Boost, Mic/Line |
| Cooling | Convection |
| Power Connection | VDE |
| Cabinet Material | PP Composite |
| Handles | 1 Top |
| Grille | Steel |
| Color Options | Black, White |
| Dimensions (H x W x D) | 2285 mm x 400 mm x 460 mm (89.96 in x 15.75 in x 18.11 in) |
| Weight | 20.2 kg (44.53 lbs) |
| Package Dimensions (H x W x D) | 676 mm x 451 mm x 581 mm (26.61 in x 17.76 in x 22.87 in) |
| Package Weight | 29.9 kg (65.92 lbs) |
