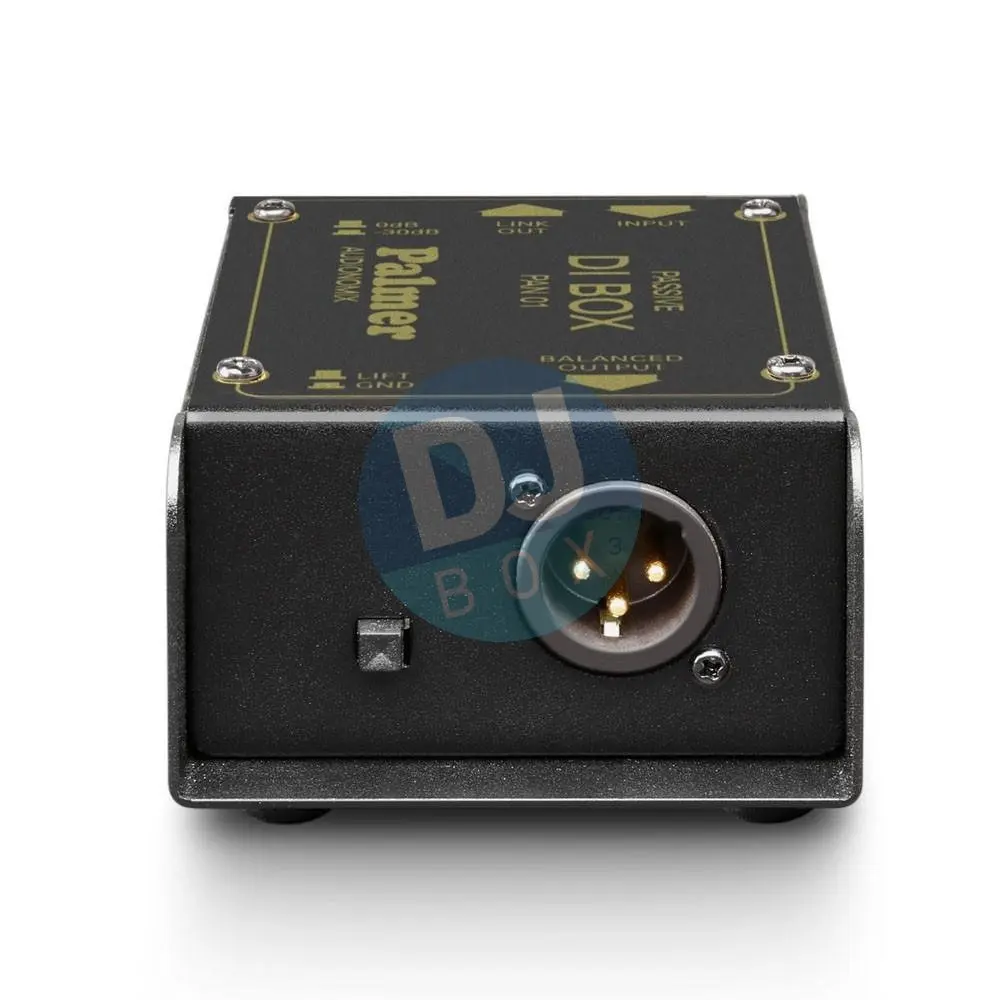

Palmer PAN 01 DI Box passive
Palmer PAN 01 DI Box passive

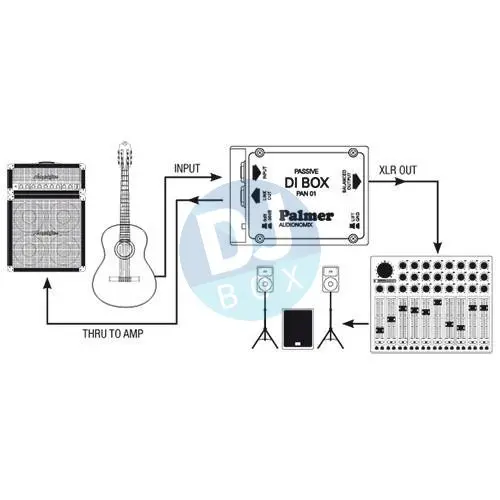

Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
General
Product type
DI Boxes
Type
passive
Channels
1
Inputs
1
Input connectors
6.3 mm jack
Max. input level
+ 54 dBu
Input impedance
(@ 60 Hz) 60k Ohm(s)
Input pad
0 / -30 dB
Outputs
1
THRU outputs/channel
1
Output connectors
6.3 mm jack, XLR
Max. output level
+ 4 dBu
Output impedance
600 Ohm(s)
Frequency response
20 - 20000 Hz
Transformer balanced
Yes
Ratio
10 : 1
Controls
attenuator, ground lift
Cabinet material
sheet steel
Cabinet surface
Powder coated
Width
110 mm
Depth
73 mm
Height
42 mm
Weight
0,34 kg
$32.19
Original: $91.96
-65%Palmer PAN 01 DI Box passiveā
$91.96
$32.19
Description
Palmer PAN 01 DI Box passive
Passive DI box. Jack input with paralell "THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.
