Flash - DJ Matrix Beam
Flash - DJ Matrix Beam

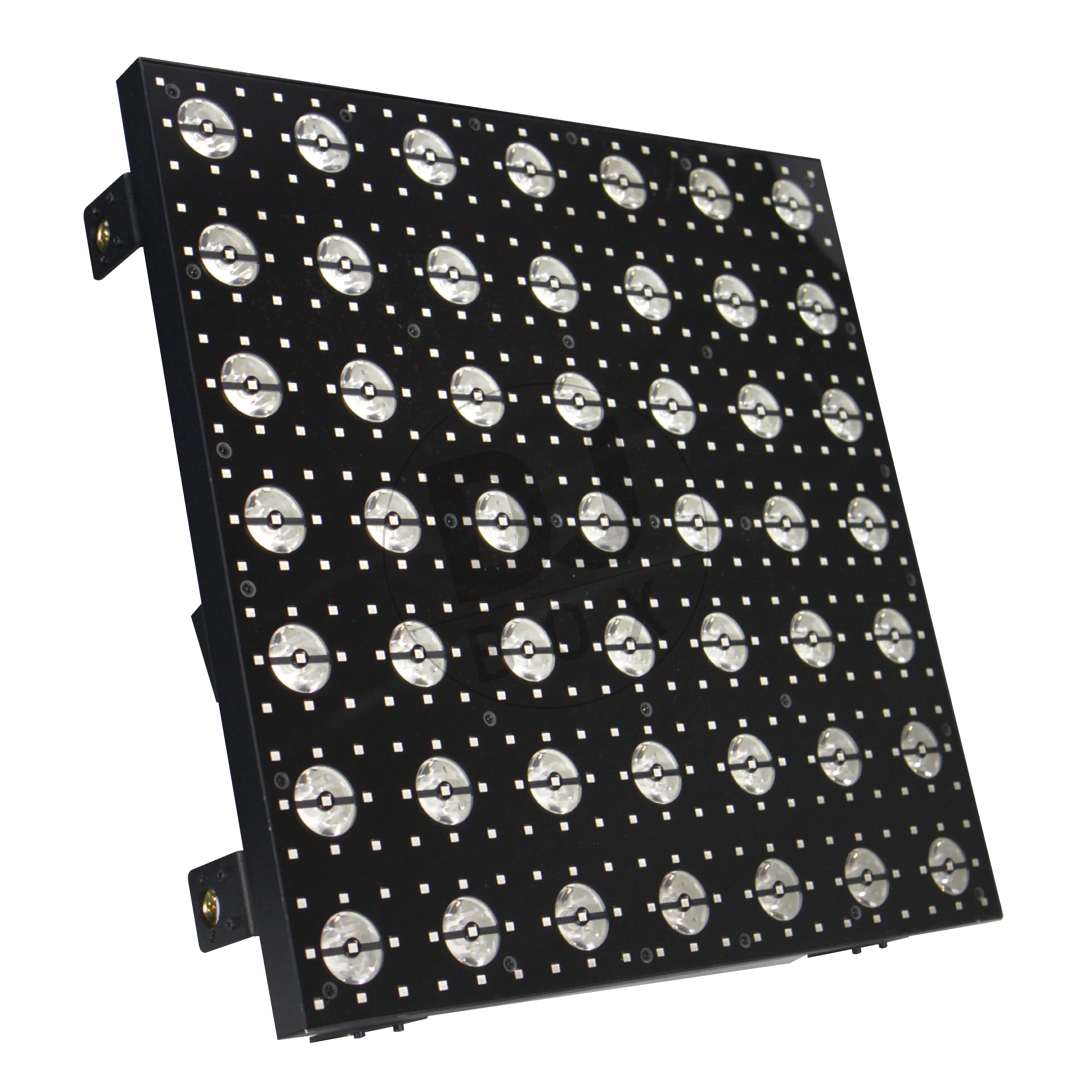

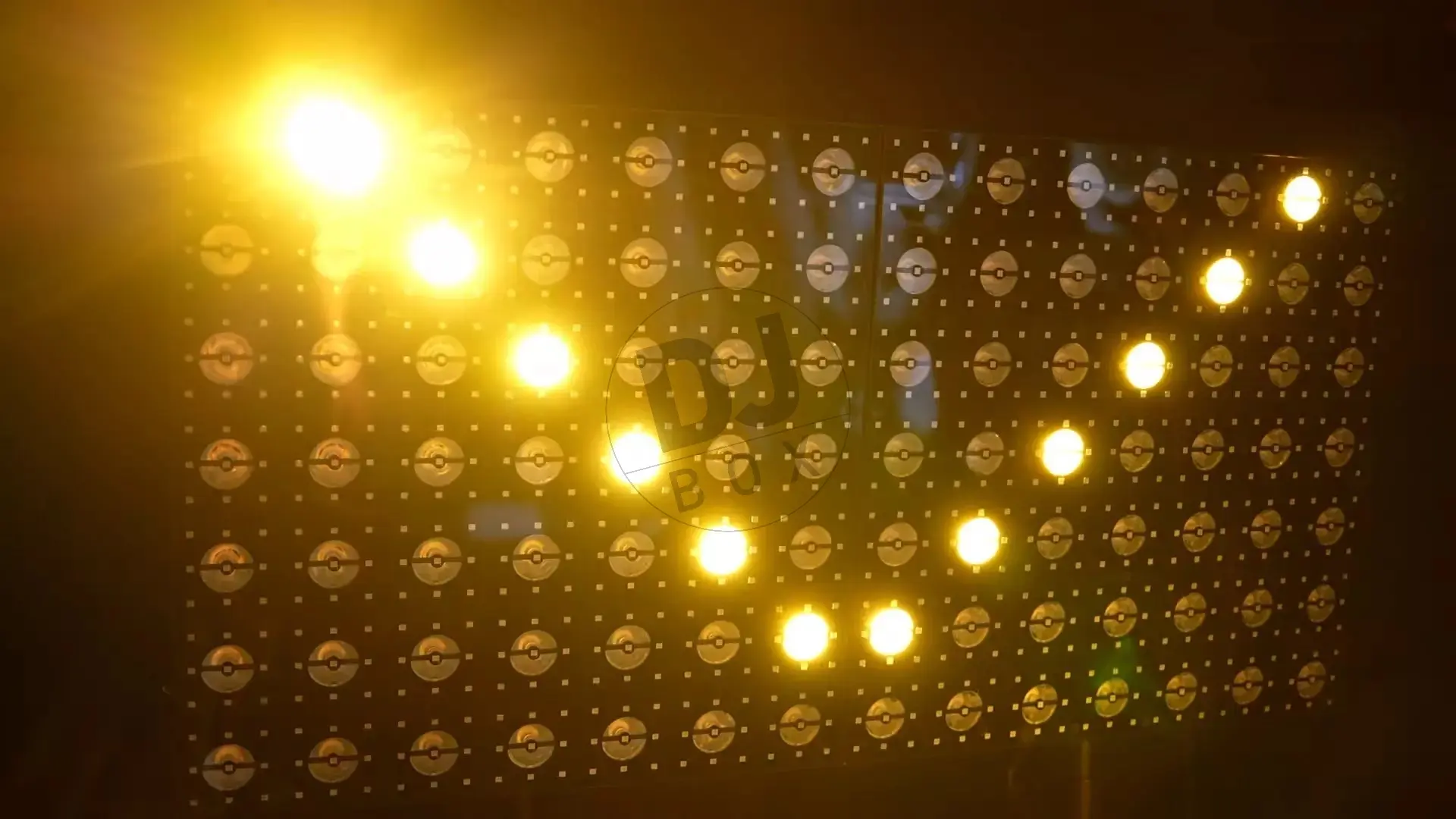

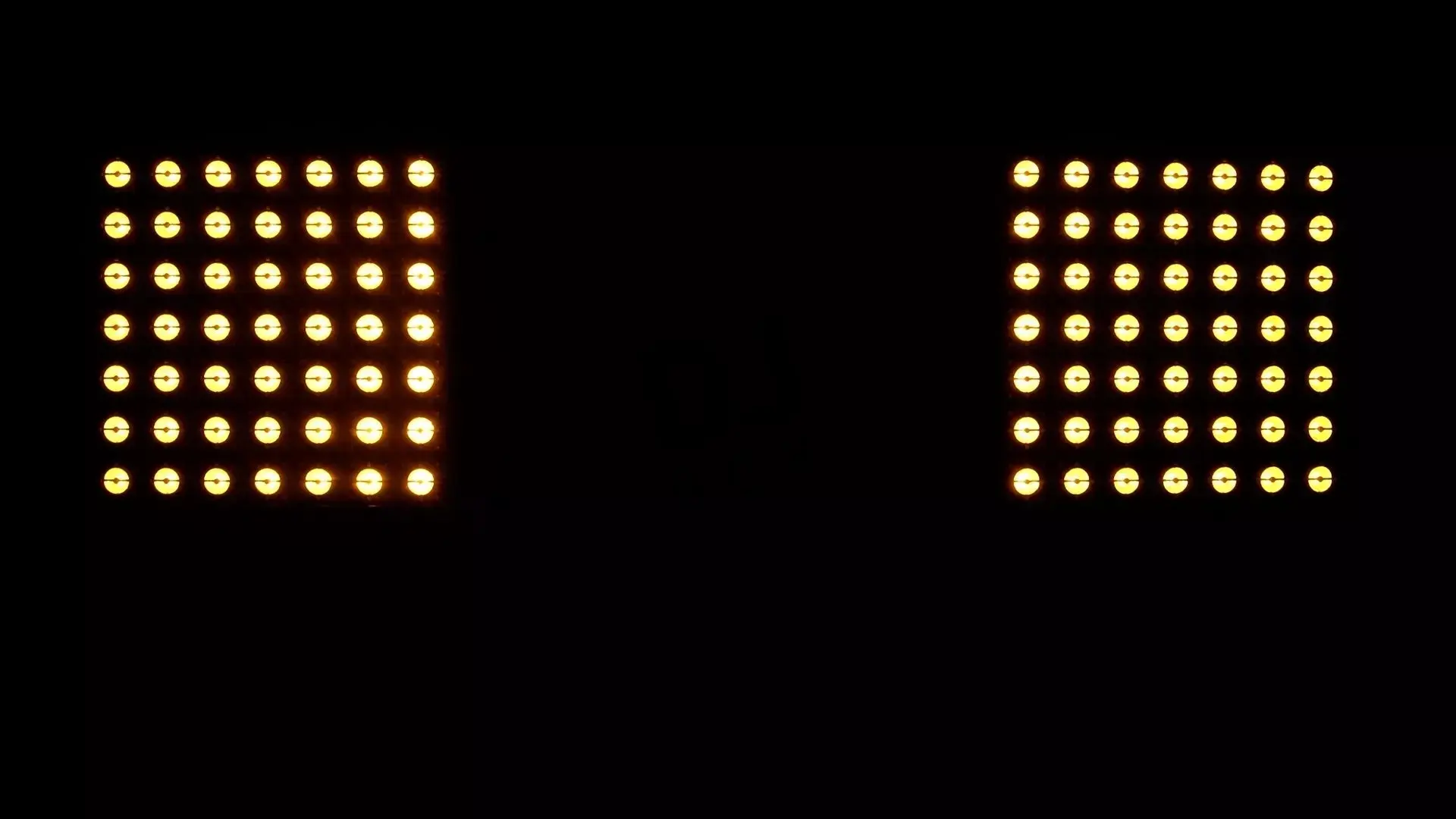

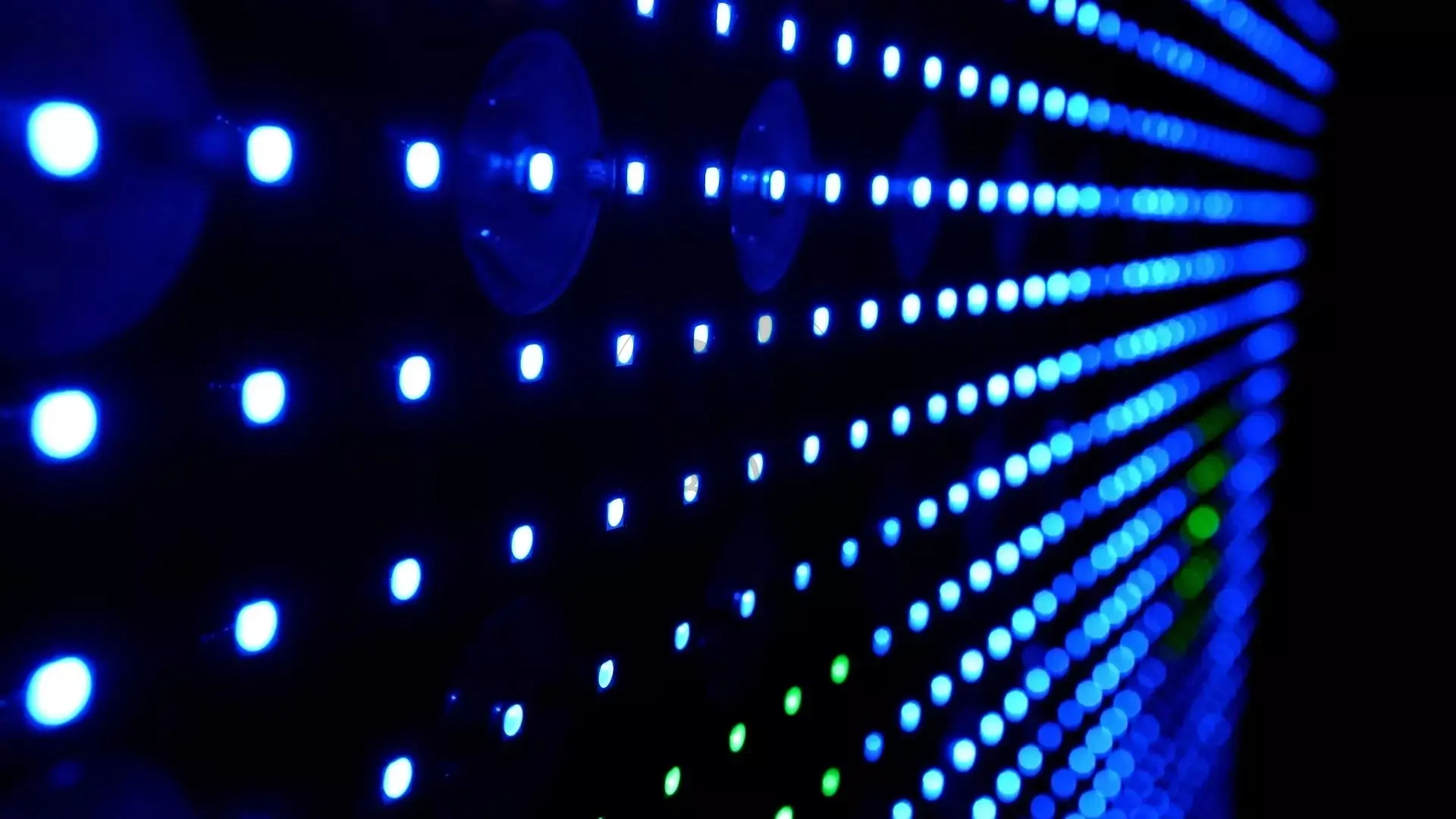

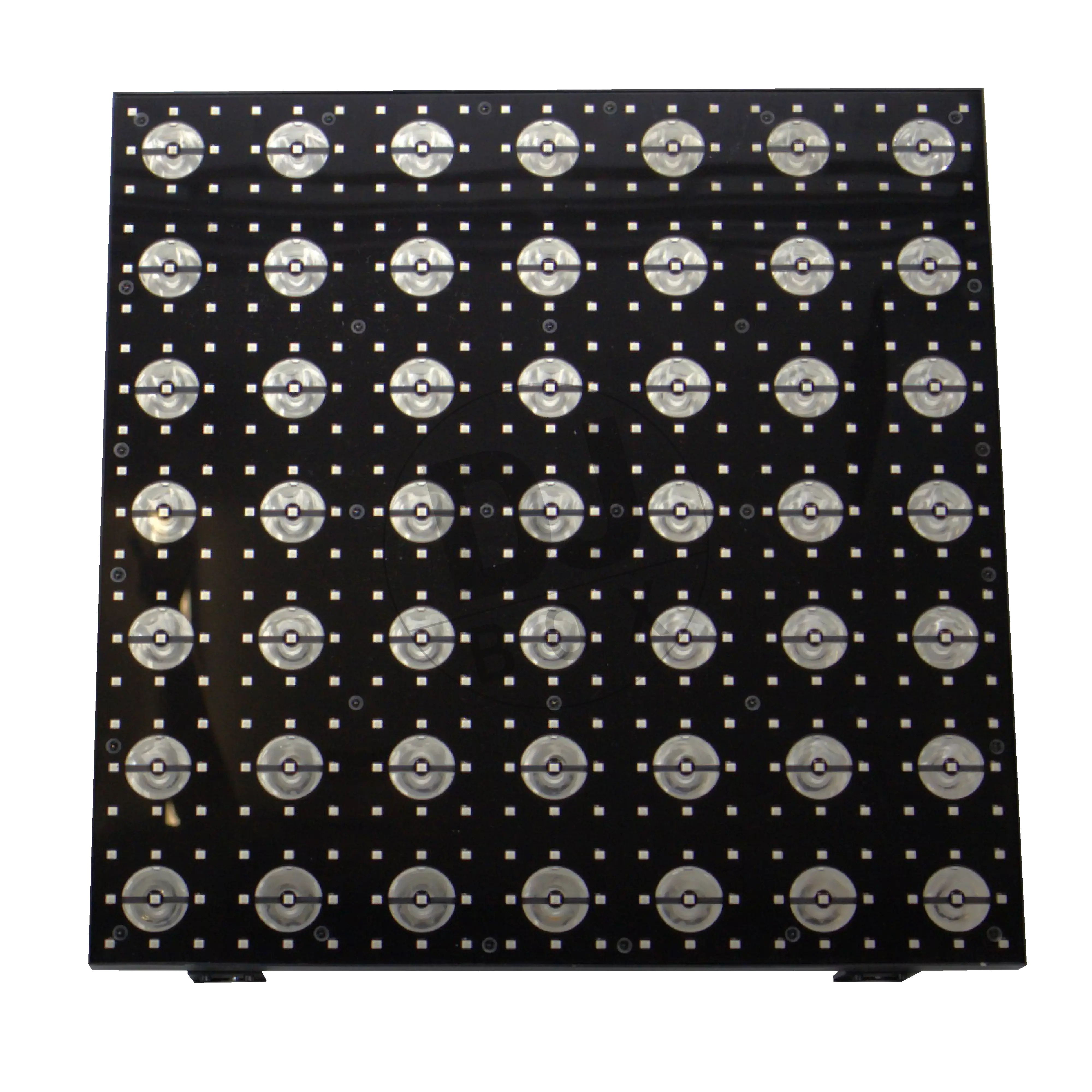

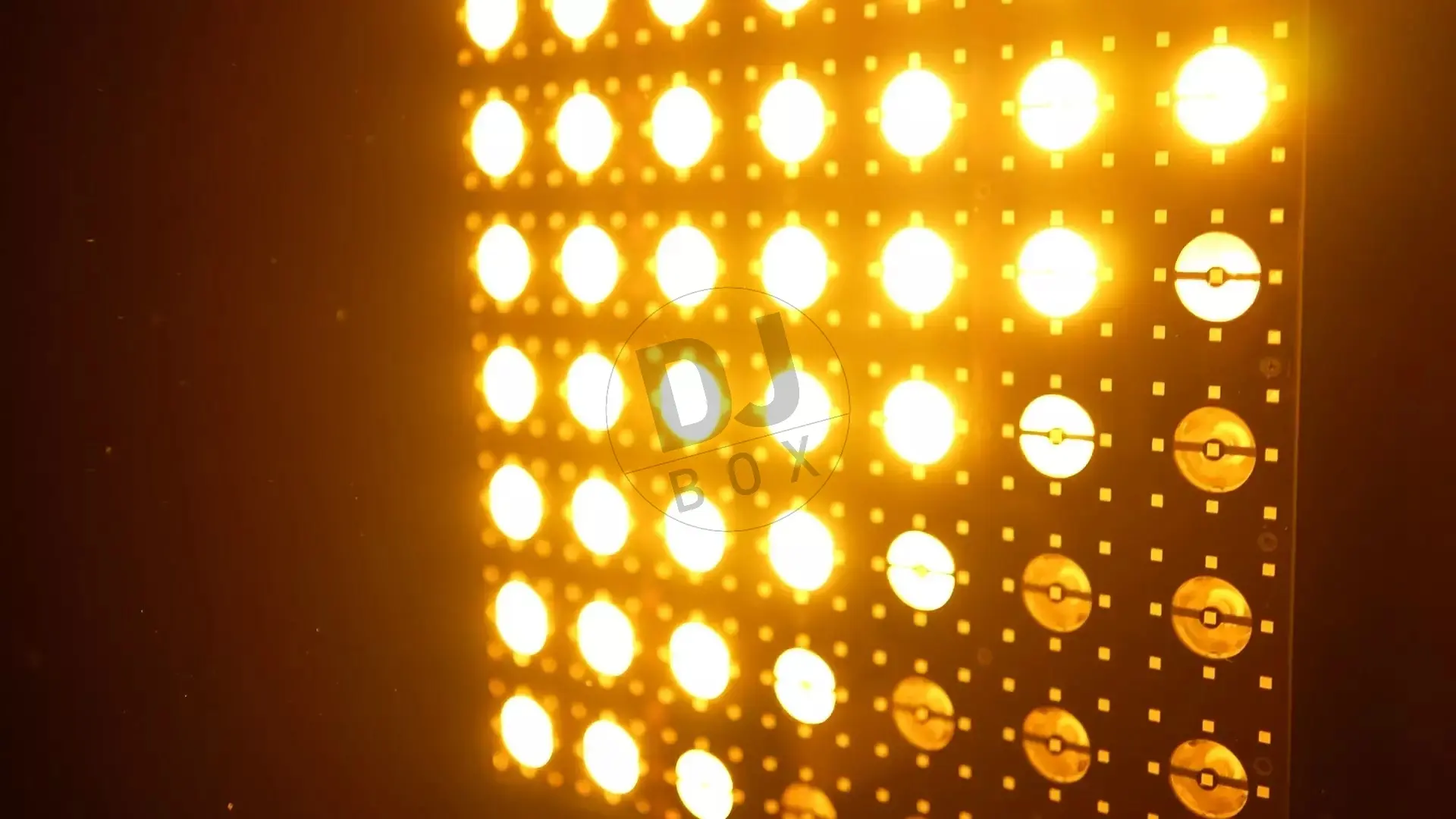

The Flash Matrix BEAM is a modern stage lamp combining high performance with extensive control options. Powered by 100-240 V AC (50/60 Hz), it boasts a total power of 300 W. Its main light source is 49 3W RGBW LEDs, and it is also equipped with 441 0.2W RGB LEDs, allowing for rich and dynamic lighting effects.

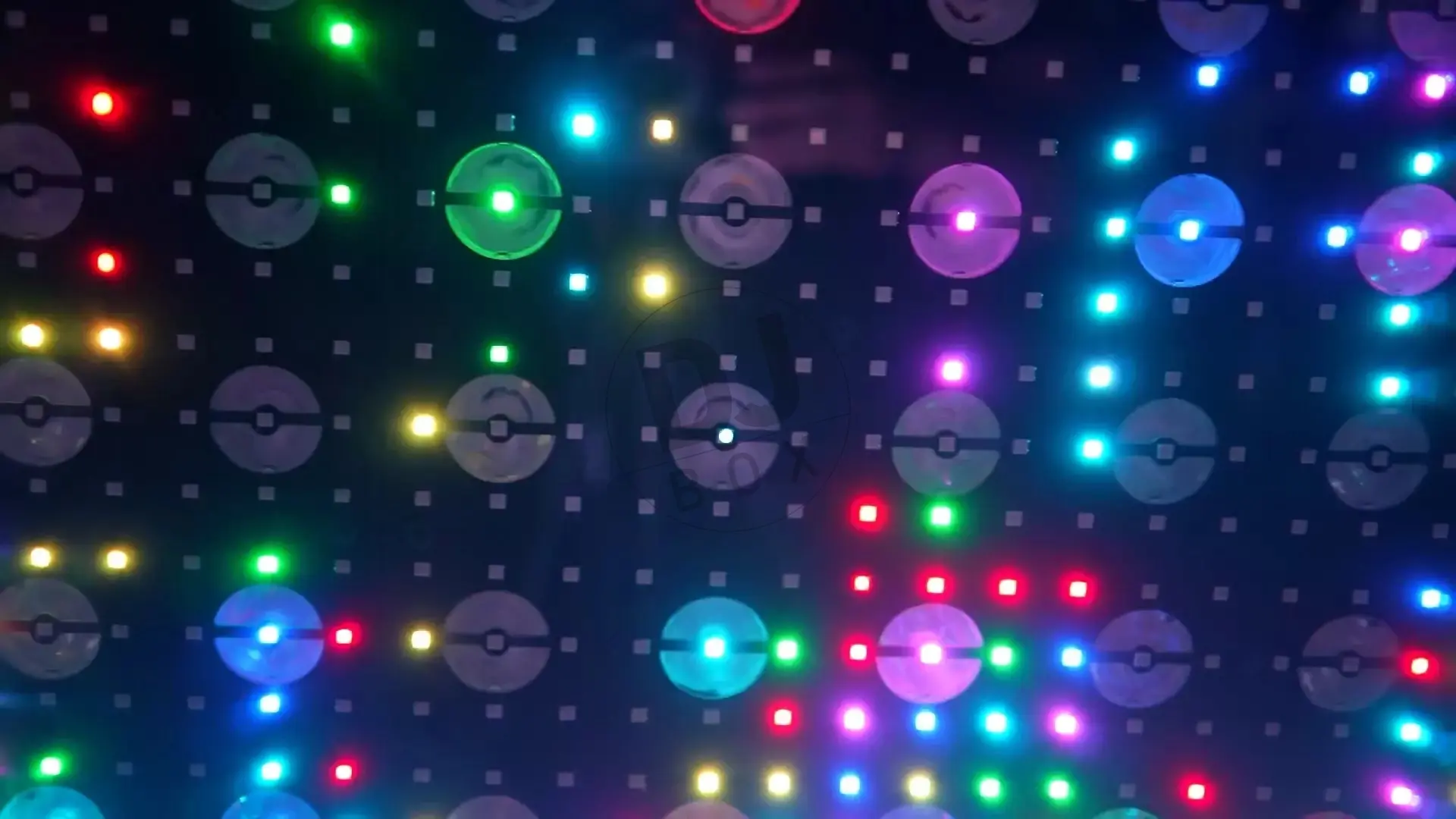

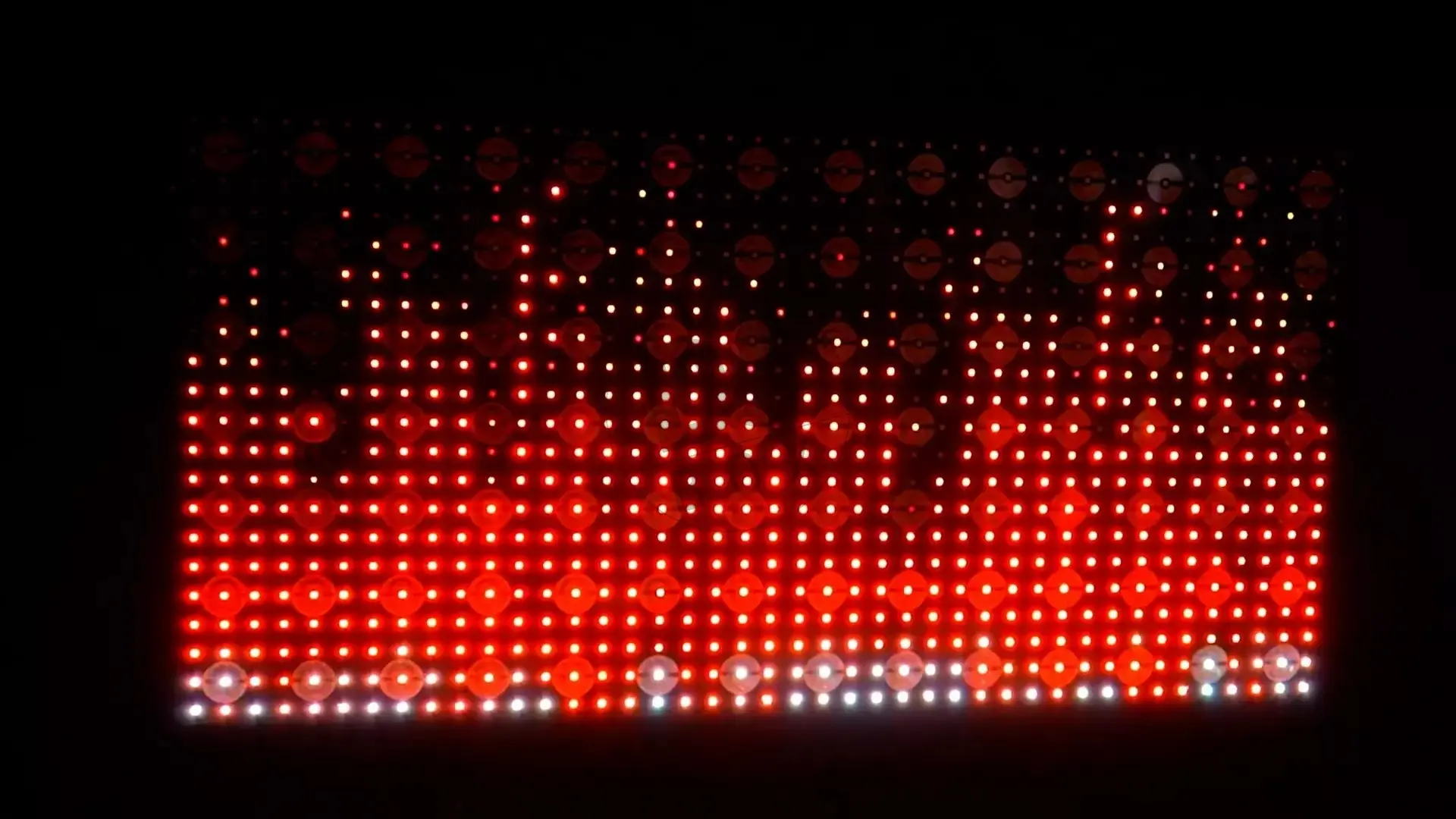

The Matrix BEAM is controlled and operated via a convenient LCD display. The lamp supports various channel configurations: 5, 15, 209, 1372, and 1376, allowing for flexible adaptation to the projector's needs. It supports DMX512 control, RDM, and Art-Net functions. It also offers smooth electronic dimming from 0 to 100%, fast flicker, and advanced pixel matrix control – both full and individual, with the ability to create effects based on pixel overlap and transformation.
Matrix BEAM is the ideal solution for demanding lighting designers, offering versatility, reliability, and creative freedom in creating modern light shows.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 300W |
| Power frequency | 50-60Hz |

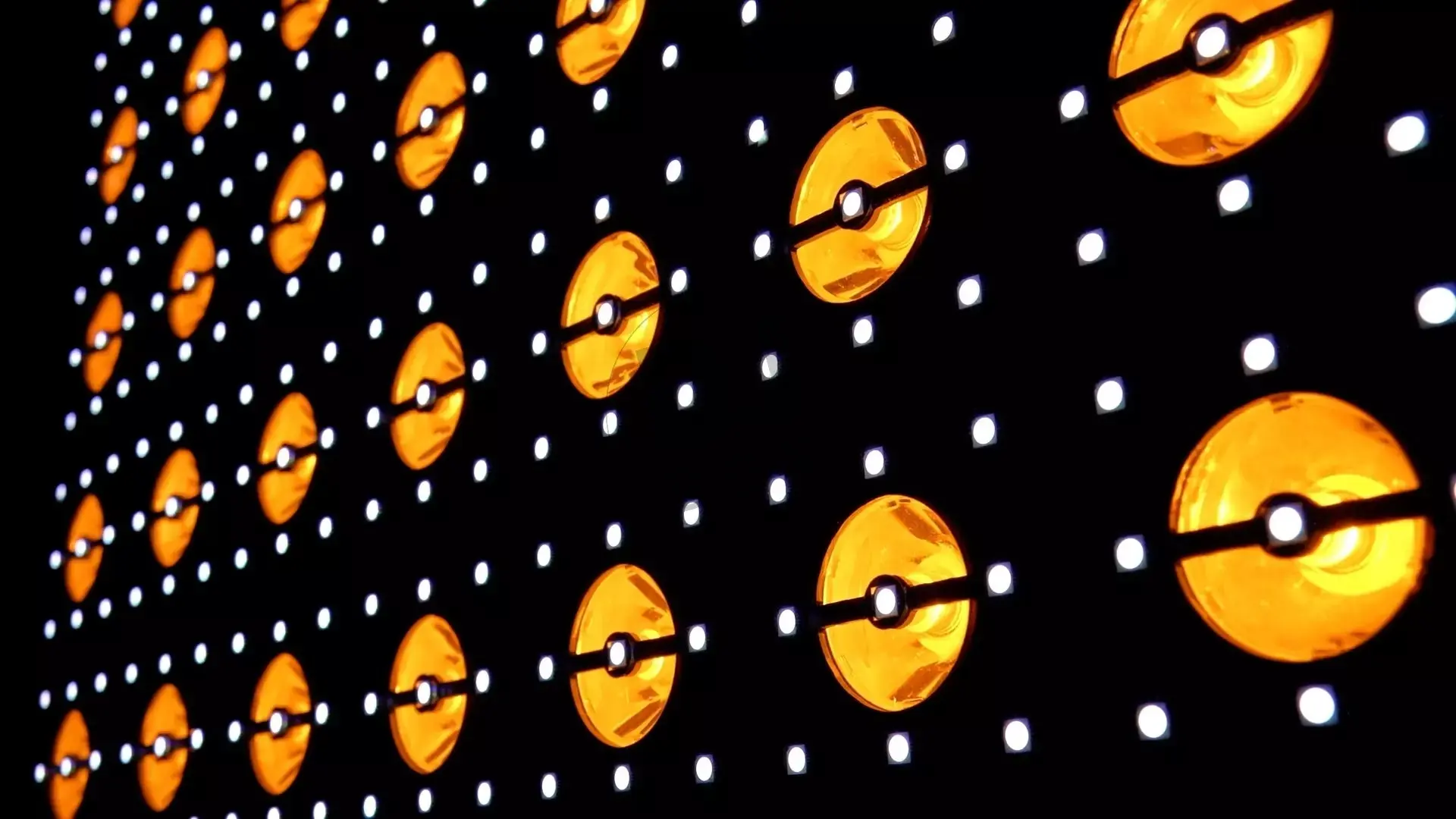

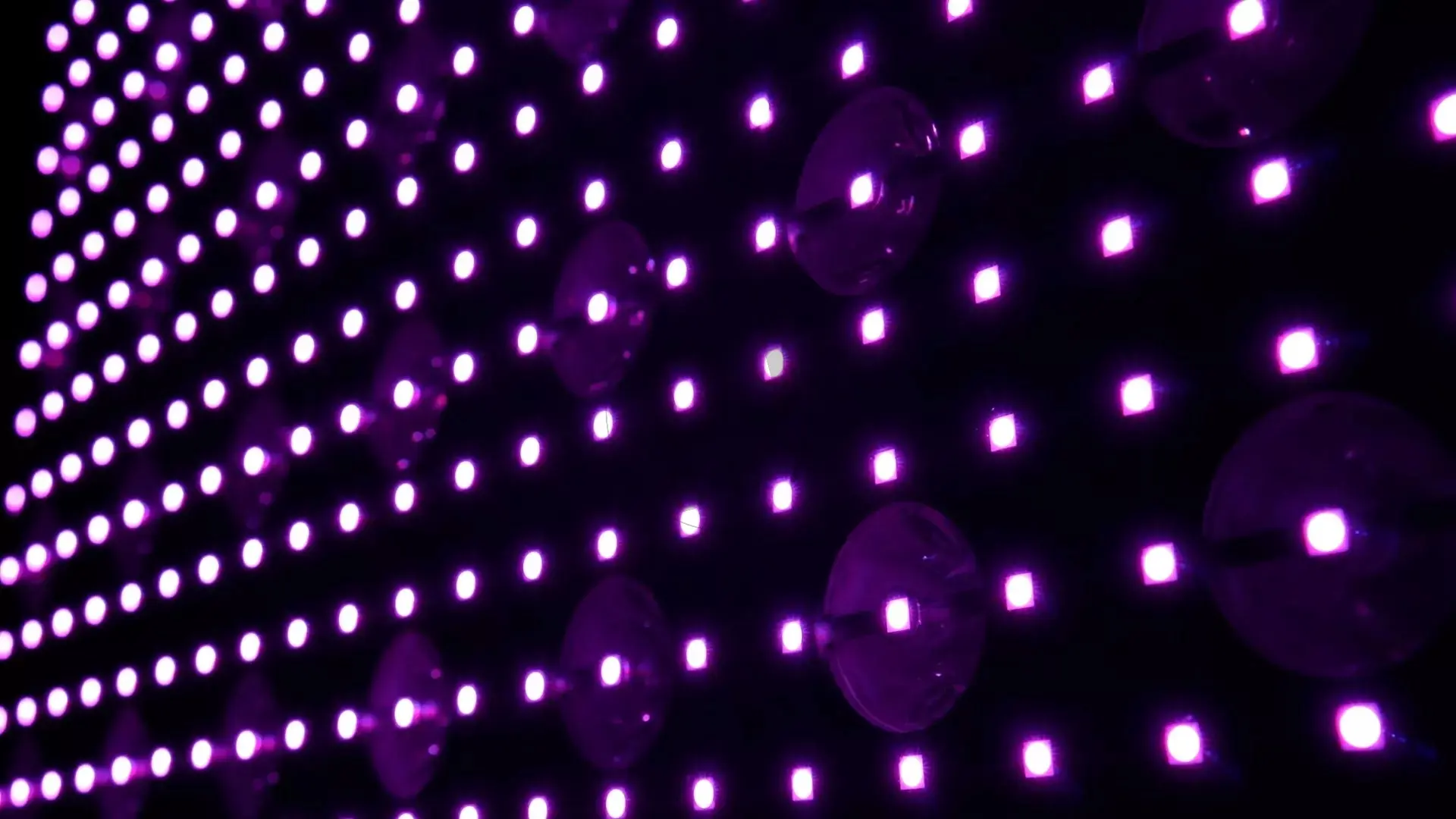

Light source |
|
|---|---|
| Type | LED (RGBW) |
| Quantity | 49 |
| Power (W) | 3 |
| Type | LED (RGB) |
| Quantity | 441 |
| Power (W) | 0.2 |
Color Mixing System |
|
|---|---|
| RGB | 16 bit |
| RGBW | 16 bit |
Dimming |
|
|---|---|
| Dimming | 8 bit |
Beam angle |
|
|---|---|
| Beam angle | Fixed |
Inverted pixels |
|
|---|---|
| Pixel inversion | 0° |
| Pixel inversion | 90° |
| Pixel inversion | 180° |
| Pixel inversion | 270° |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
DMX control |
|
|---|---|
| Number of modes | 5 |
| Number of channels | 5-1379 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| RDM | Yes |
| Art-Net | Yes |
| Sound control | Yes |
| Auto control | Yes |
User Interface |
|
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |

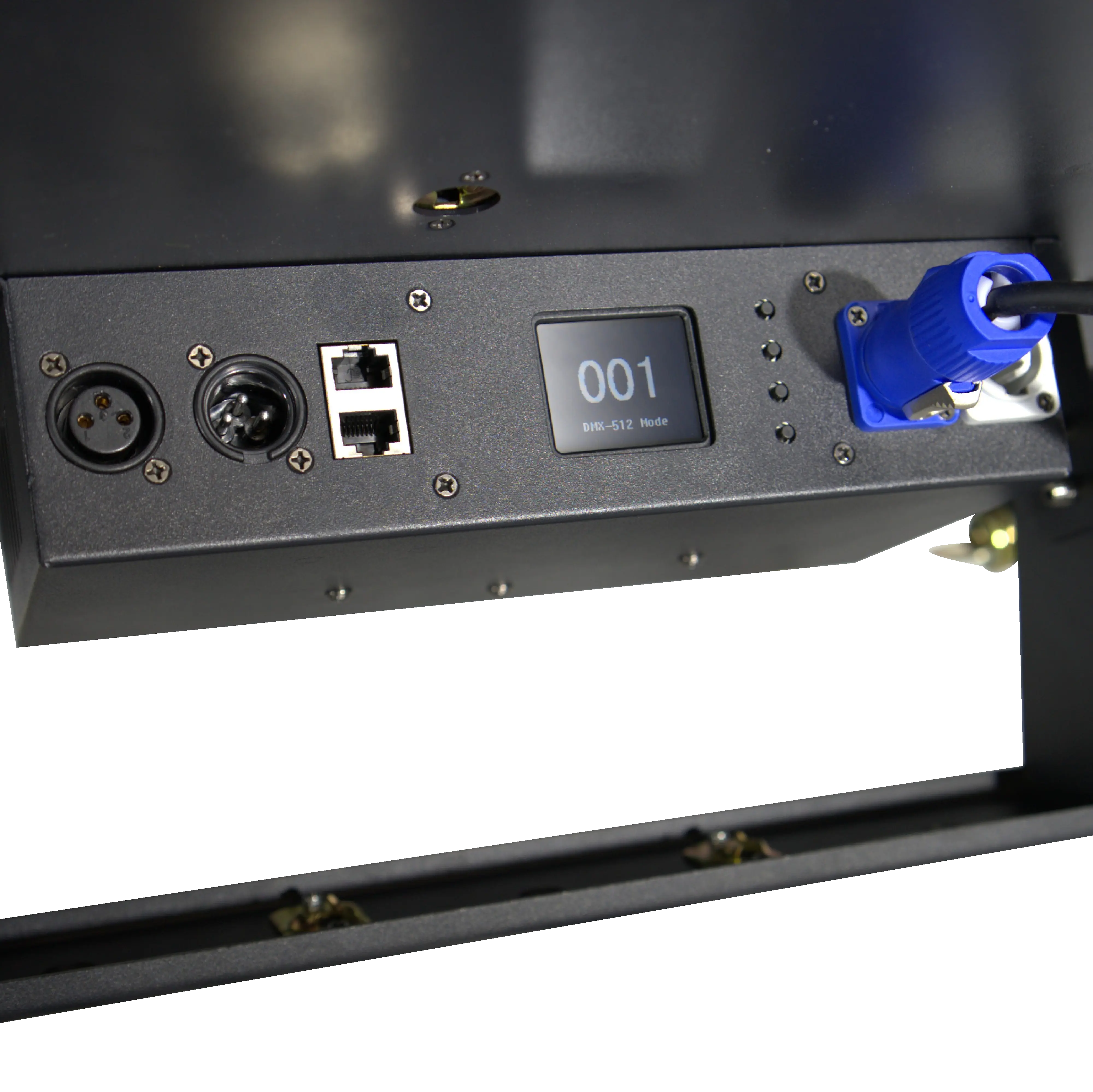

Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
| ETHERNET IN | RJ-45 |
| ETHERNET OUT | RJ-45 |

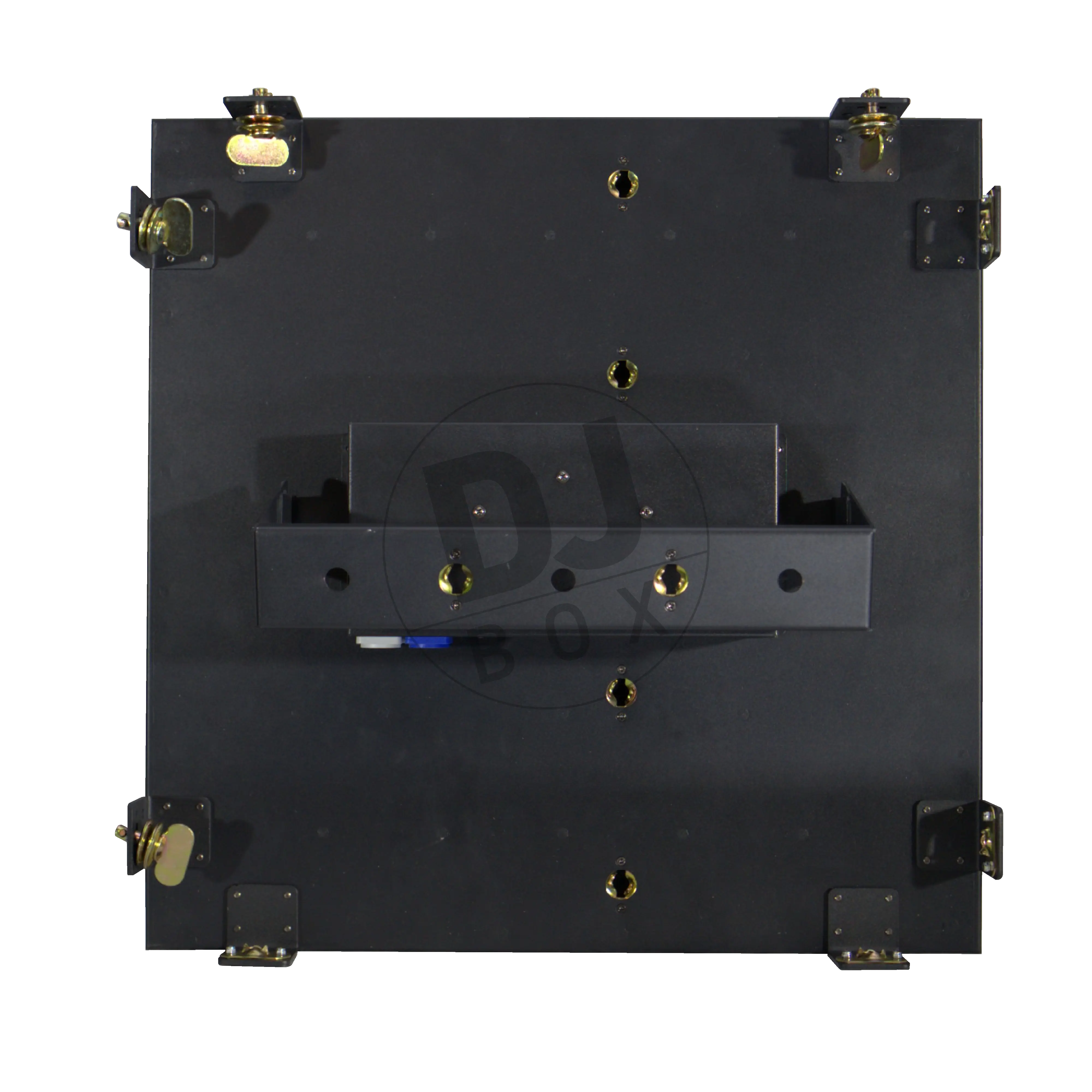

Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Aluminium |

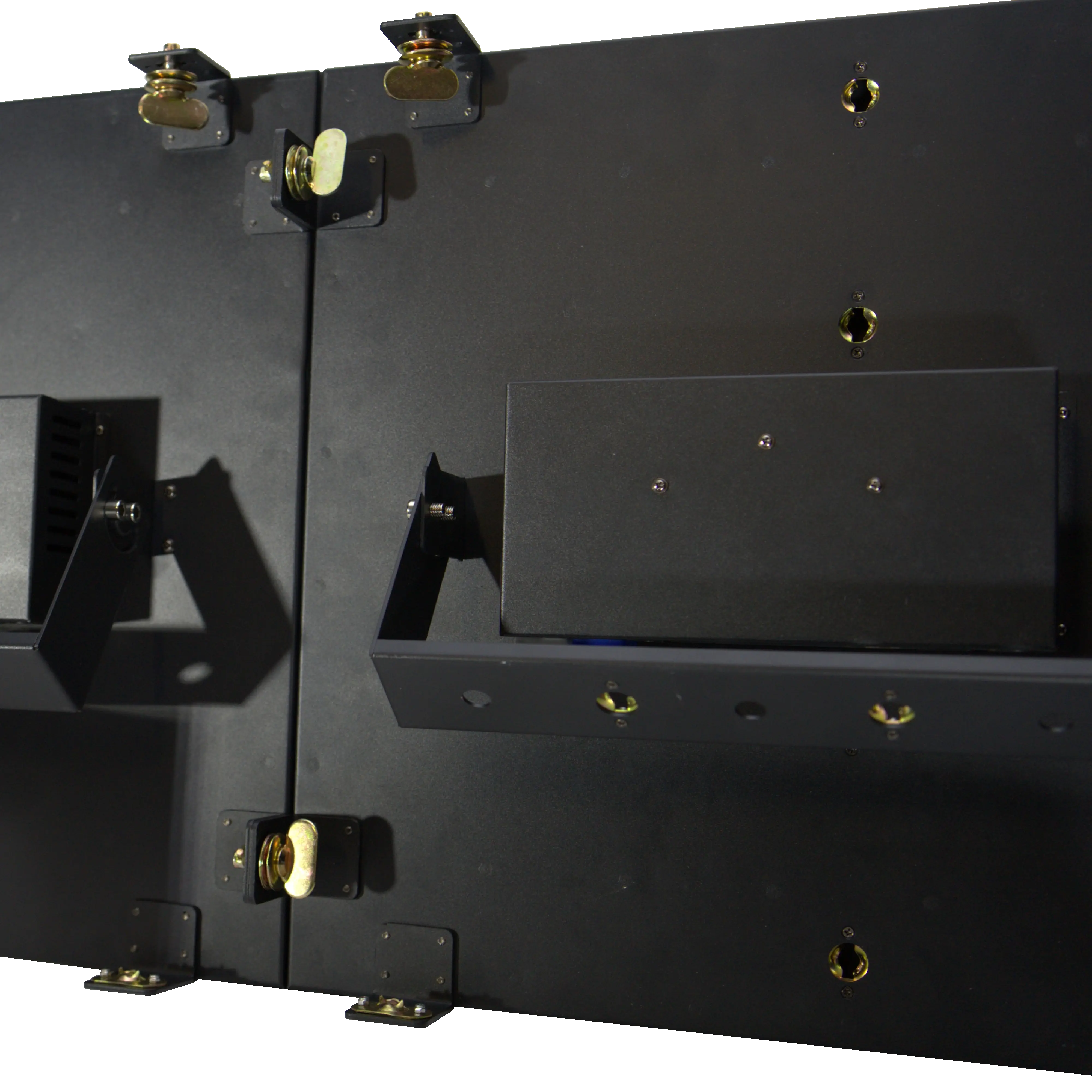

| Fixing | Integrated |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 50 |
| Width [cm] | 50 |
| Height [cm] | 8 |
| Weight [kg] | 6.6 |
Contents of the package |
|
|---|---|
| Manual | - |
| Wiring | PowerCON |
| Device | MATRIX BEAM |
Original: $557.56
-65%$557.56
$195.15
