Citronic Dual 15-band Graphic EQ
Dual 15-band Graphic EQ

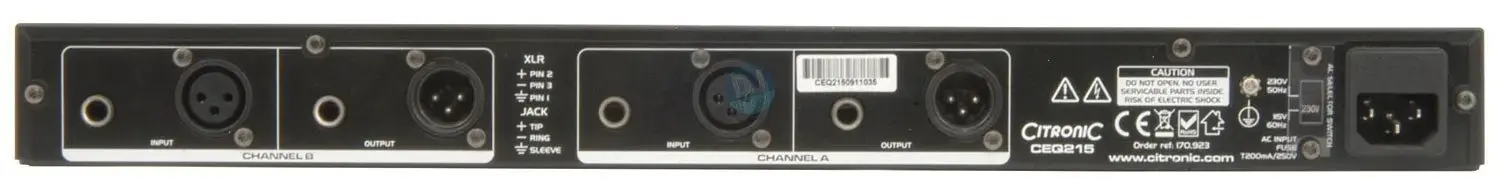

The CEQ215 is a 19" rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.
- 2 x 15-band 2/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19" rackmount 1U
- Power supply115/230Vac, 50/60Hz (IEC)
- Frequency response20Hz-20kHz
- Input impedance : balanced40k Ohms
- Input impedance : unbalanced20k Ohms
- Output impedance : bal/unbal330 Ohms
- Channel separation>50dB
- Signal to noise ratio>102dB
- THD0.005%
- Dimensions 482 x 44 x 138mm
- Weight 2.0kg
$161.80
Citronic Dual 15-band Graphic EQ—
$161.80
Description
Dual 15-band Graphic EQ
The CEQ215 is a 19" rack mounted dual 15-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 25Hz to 16kHz for accurate audio spectrum control.
- 2 x 15-band 2/3 octave ISO spacing
- RF filtered servo-balanced inputs
- Constant Q each band
- Bypass switch for EQ comparison
- Low-cut switch each channel
- Gain control each channel
- LED VU meters
- 19" rackmount 1U
- Power supply115/230Vac, 50/60Hz (IEC)
- Frequency response20Hz-20kHz
- Input impedance : balanced40k Ohms
- Input impedance : unbalanced20k Ohms
- Output impedance : bal/unbal330 Ohms
- Channel separation>50dB
- Signal to noise ratio>102dB
- THD0.005%
- Dimensions 482 x 44 x 138mm
- Weight 2.0kg
